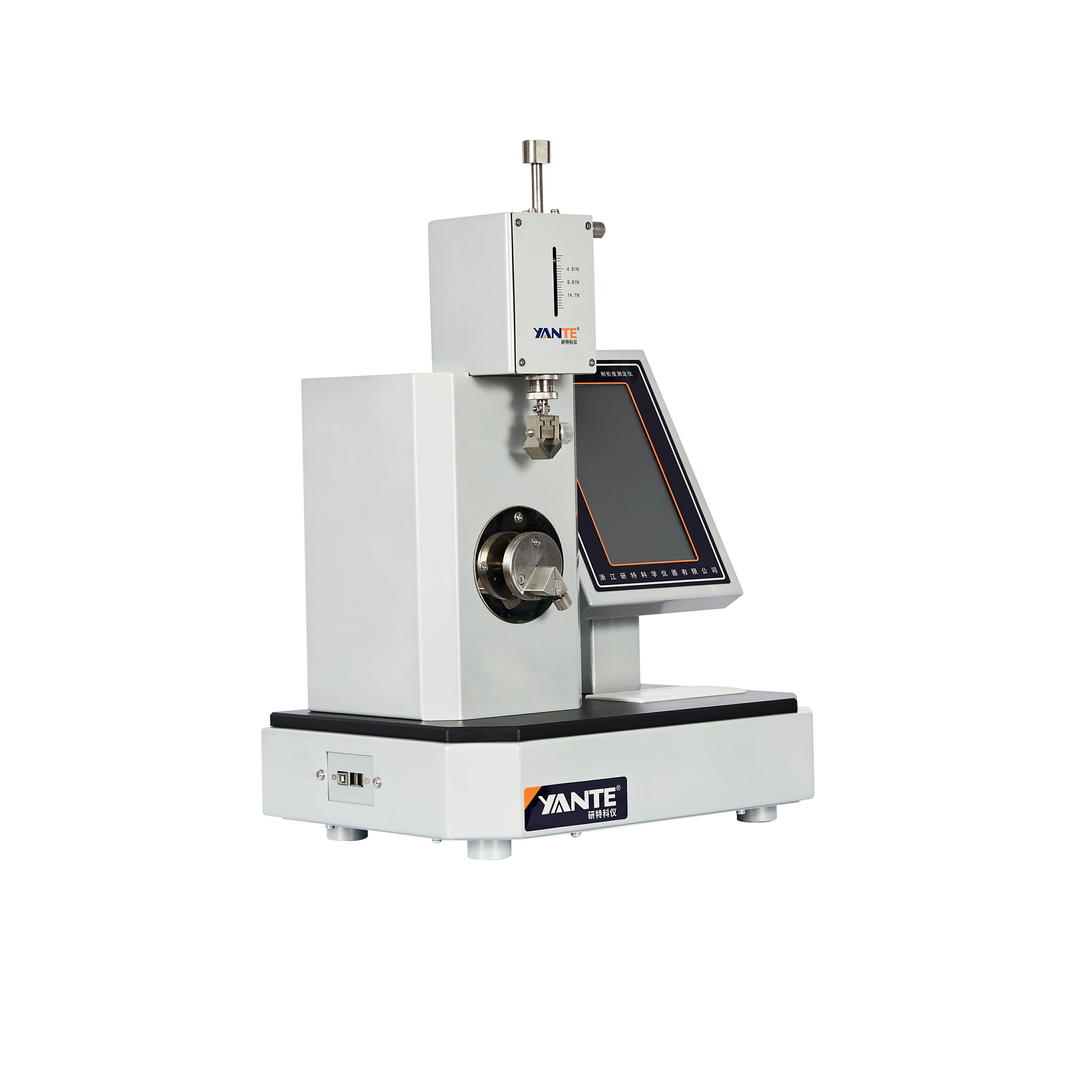

YT-CTM Folding Endurance Tester

application range.jpg

0~1mm thickness of paper, cardboard

0~1mm thickness of glass fiber, film, circuit board, copper foil, cable, etc.

product features.jpg

● Using high closed loop stepping motor, the rotation angle and folding speed are accurate and stable

● ARM processor improves the corresponding speed of the instrument, and calculates the data accurately and quickly

● Automatic measurement, statistics, and printing of test results, and has the function of data storage

● Standard RS232 interface, with computer software for communication (purchased separately)

executive standard.jpg

GB/T 457，QB/T1049，ISO 5626，ISO 2493

supporting accessories and consumable.jpg

No.	Accessory name	Model	Picture	Standard	Optional
1	Standard Distance Cutter	YT-Q15			√
2	Punch Standard Distance Cutter	YT-CQ15			√
3	Adjustable Paper Cutter	YT-TJD300			√

technical parameters.jpg

No.	Parameter item	Technical index
1	Power Supply	AC( 100~240)V (50/60)Hz 100W
2	Working Environment	(10~35)℃,Humidity≤ 85％
3	Display	7 Inch Color Touch screen
4	Measuring Range	0~99999 frequency
5	Crease radius	0.38±0.02 mm
6	Folding Angle	135±2 degree （90-135°adjustable）
7	Folding Speed	175±10 frequency/min（1-200 frequency/min adjustable）
8	Tension Range	4.91N/9.81N/14.72N
9	Folding Sutur Specifications	(0.25/0.50/0.75/1.00)mm
10	Print	Built-in thermal printer
11	Communication Interface	RS232 (default) (USB, WIFI optional)
12	Dimension	360×255×500 mm
13	Net Weight	17kg
