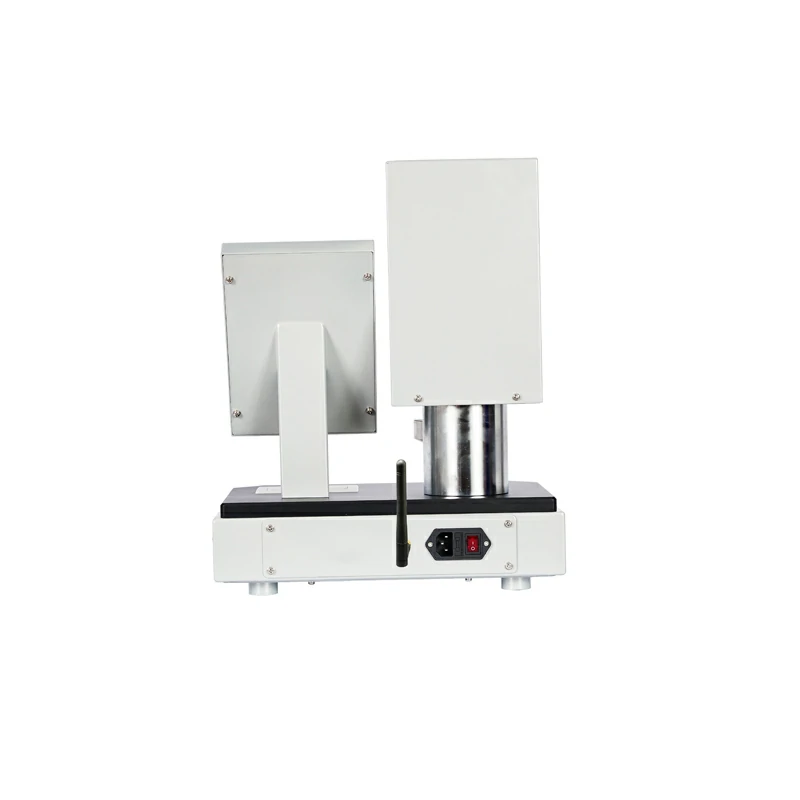

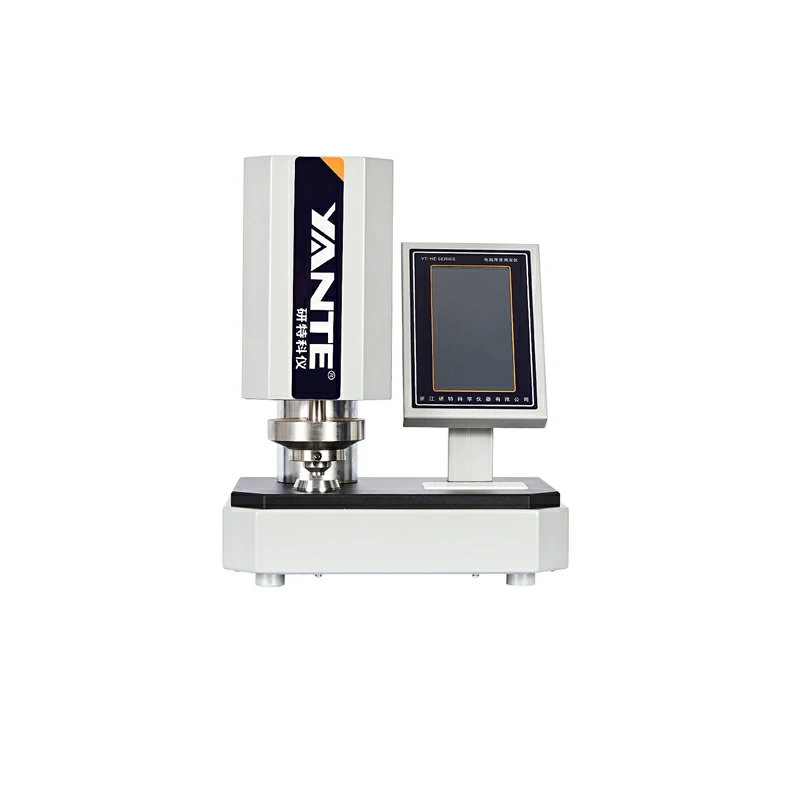

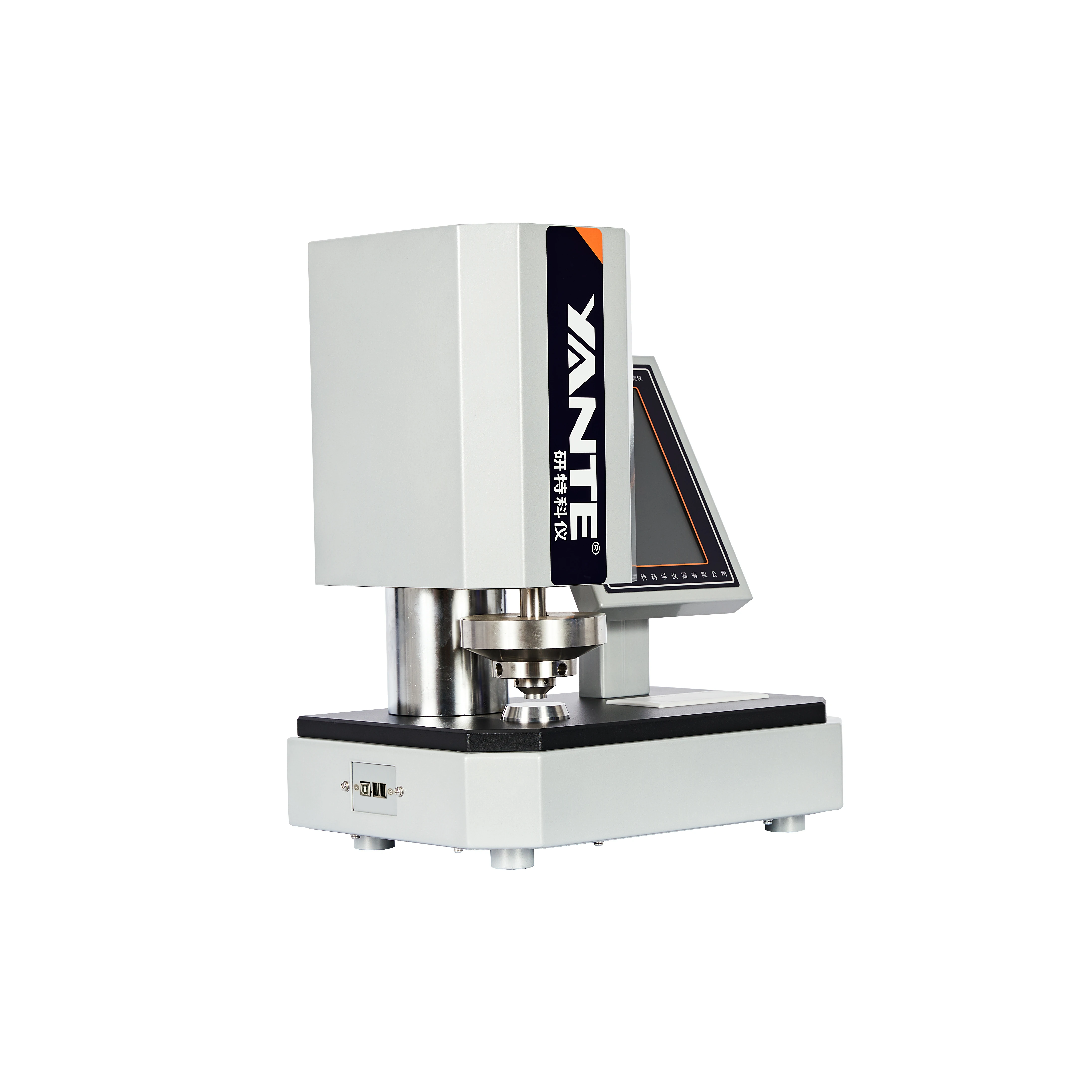

YT-H4E Paper Electronic Thickness Tester

product features.jpg

● One-click test, easy to understand

● ARM processor improves the response speed of the instrument, and the calculation is accurate and fast

● The rising and falling speed of the probe can be adjusted

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Automatic measurement, statistics, and printing of test results

● Communication with computer software (purchased separately)

executive standard.jpg

GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534

technical parameters.jpg

No.	Parameter item	Technical index
1	Power Supply	AC(100～240)V，(50/60)Hz 50W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Display	7 inch color touch screen
4	Measuring range	(0～4)mm
5	Resolution	0.001mm
6	Indication error	±0.0025mm or ±0.5％
7	Indication variability	≤0.0025mm or ≤0.5％
8	Parallelism between surfaces	≤0.002mm
9	Contact area	(200±5) mm²
10	Contact pressure	(100±10)kPa
11	Probe descending speed	（0.5～10）mm/s Adjustable
12	Print	Built-in thermal printer
13	Communication Interface	RS232(Default) (USB, WIFI optional)
14	Dimension	365×255×440 mm
15	Net Weight	27kg
