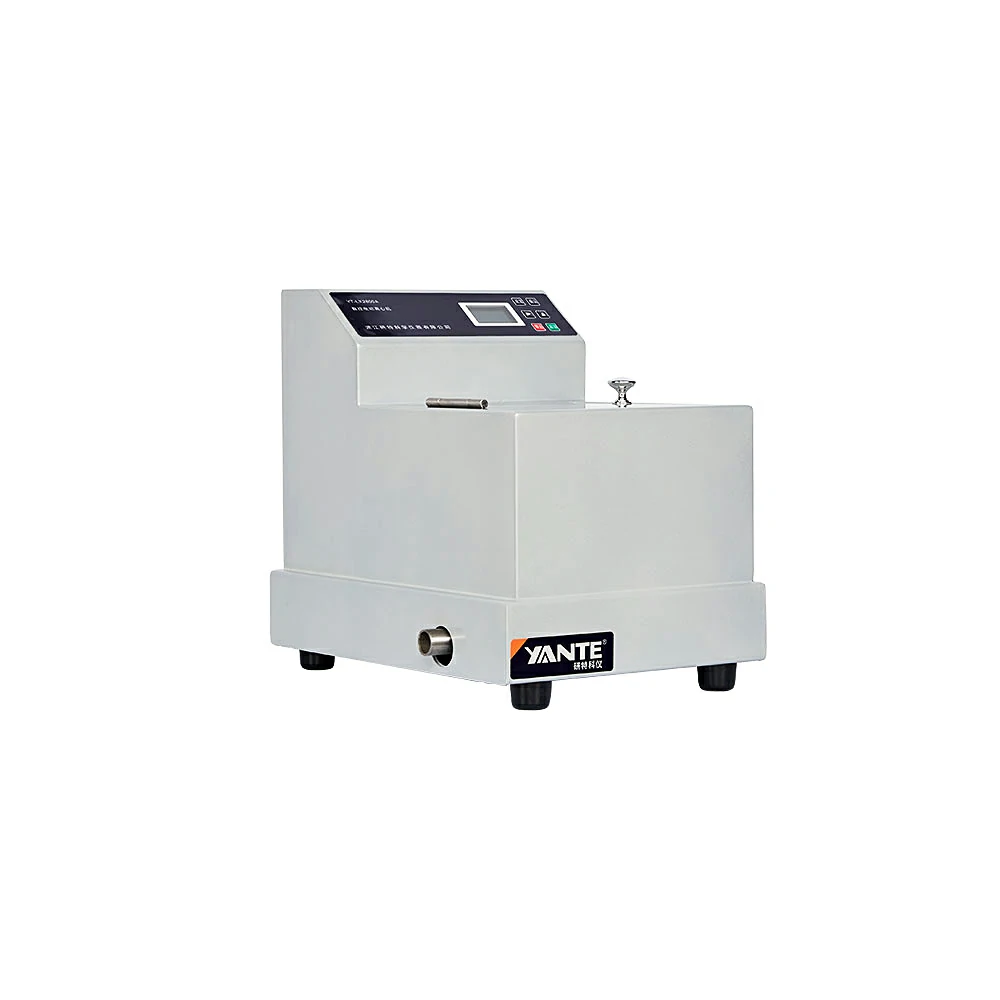

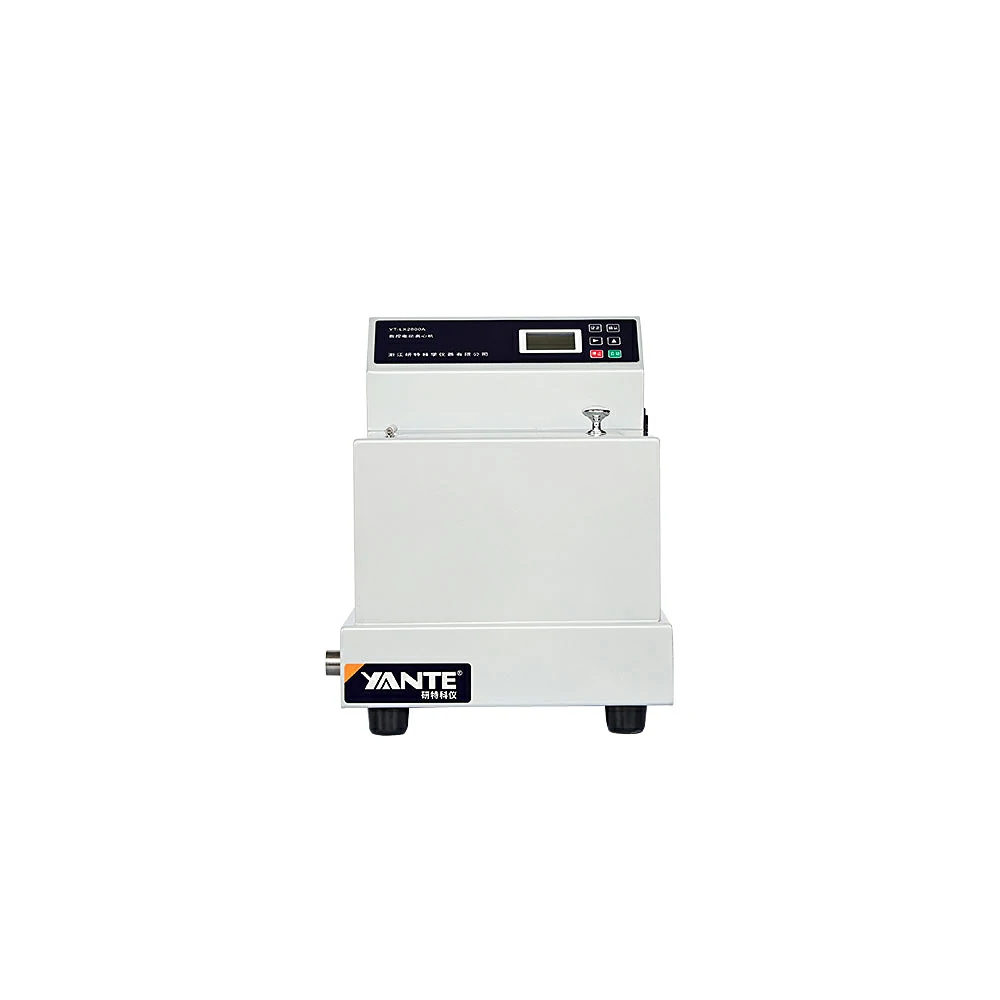

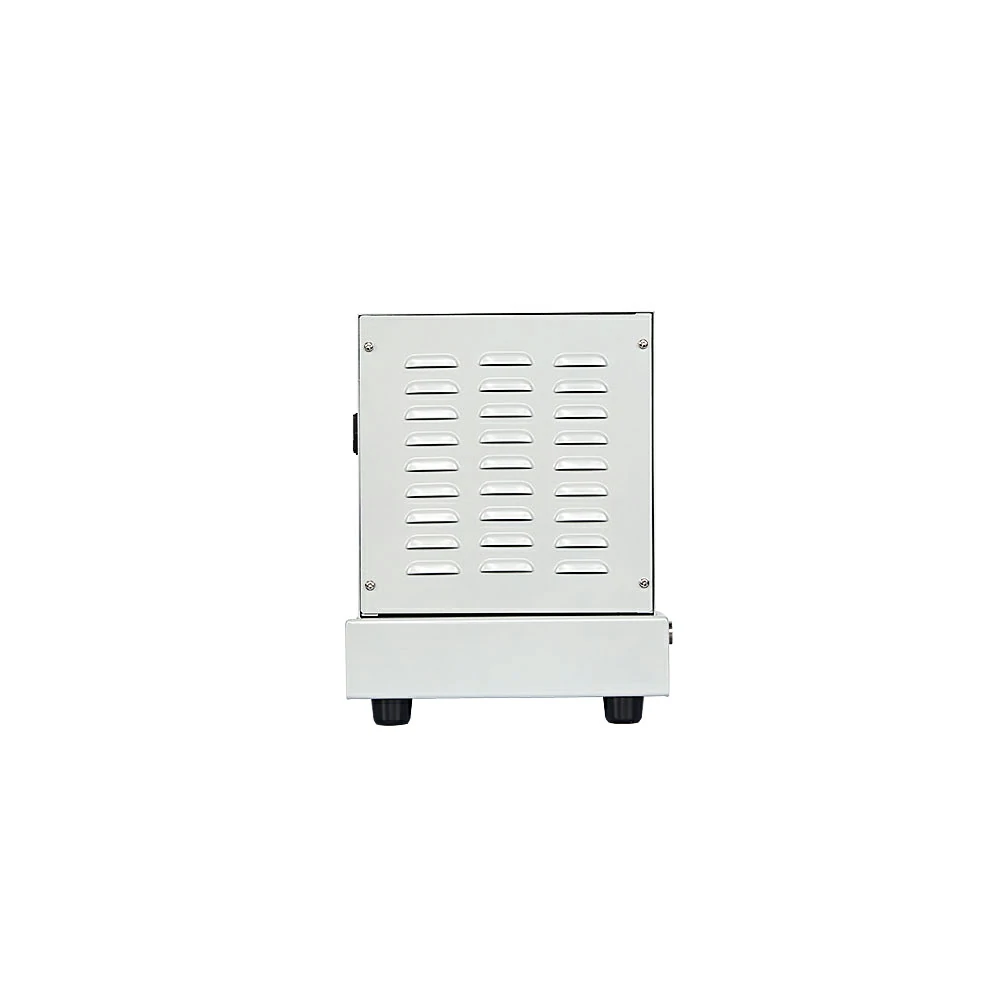

YT-LX2800A Digital Centrifugal Dryer
- Entrega：
Send from factory in 3-7 work days after receive payment
- Nombre de la marca：
YANTE
- Modelo：
YT-LX2800A
- Origen：
China
- Pago：
100% Advance T/T
- Paquete：
Carton
Detalles del producto
● Papermaking, textile, printing and dyeing industries
● Slurry dewatering
● Superabsorbent polymers (SPA) ,Polymer Materials
● Low vibration, low noise, high dehydration efficiency
● All stainless steel material, not easy to corrode
● ARM processor, 128×64 graphic dot matrix liquid crystal display, Chinese display and easy operation
● Real-time display of speed and centrifugal force
● Closed loop AC motor speed control technology, convenient speed control and stable speed
No. | Parameter item | Technical index |
1 | Power Supply | AC（220±10％）V, 50Hz 60W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Maximum capacity | 400ml |
4 | Range of rotation | (1500～2800)rpm |
5 | Speed accuracy | ±5 RPM / min |
6 | Maximum centrifugal force | 340g |
7 | Inner cylinder diameter | 100mm |
8 | Time setting range | (1～99)min |
9 | Dimension | 350×265×320 mm |
10 | Net Weight | 12kg around |
