Send from factory in 3-7 work days after receive payment
YANTE

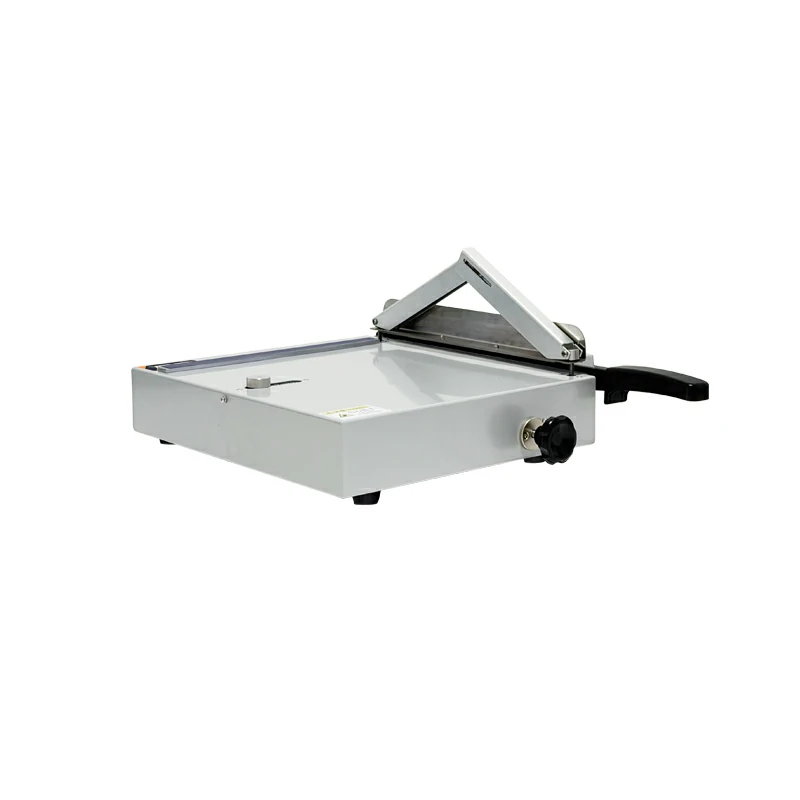

YT-TJD300
China
100% Advance T/T
Wooden Box
● Adopt rail type, easy to operate
● Using positioning pins to locate the distance, high accuracy
● There is a dial, which can cut a variety of samples
● The instrument is equipped with a compression device to reduce errors
QB/T1671
No. | Parameter item | Technical index |
1 | Sampling size range | Maximum length 300mm, maximum width 320mm |
2
| Sampling size error | ±0.10mm（15mm）、±0.20mm（38mm） ±0.30mm（63mm）、±0.50mm（other size） |
4 | Sampling thickness range | ≤1.0mm |
5 | Incision parallelism | ≤0.1mm |
6 | Dimension | 515 ×380×210 mm |
7 | Net Weight | ≤13kg |
The punching Internal Bond Sample Cutter is used to cut samples with a width of 25.4mm to meet the sample preparation for the internal bond test . It complies with the relevant provisions of the QB/T1671 standard. It has the advantages of high sampling size precision and easy operation. It is an ideal test aid for paper and packaging, scientific research, quality inspection and other industries and departments.
Stiffness Sample Cutter is suitable for cutting the samples needed for stiffness test of paper, cardboard, sheet, etc.
GSM sample cutter is a special sampling device for quantitative measurement of paper and cardboard,it can quickly and accurately cut the sample of standard area, which is an ideal auxiliary test equipment for industries and departments such as paper making, packaging and quality supervision and inspection.
The punching standard paper cutter is used to cut samples with a width of 15mm to meet the sample preparation for the paper and cardboard tensile test, folding endurance test, short-span compression test and other items.
