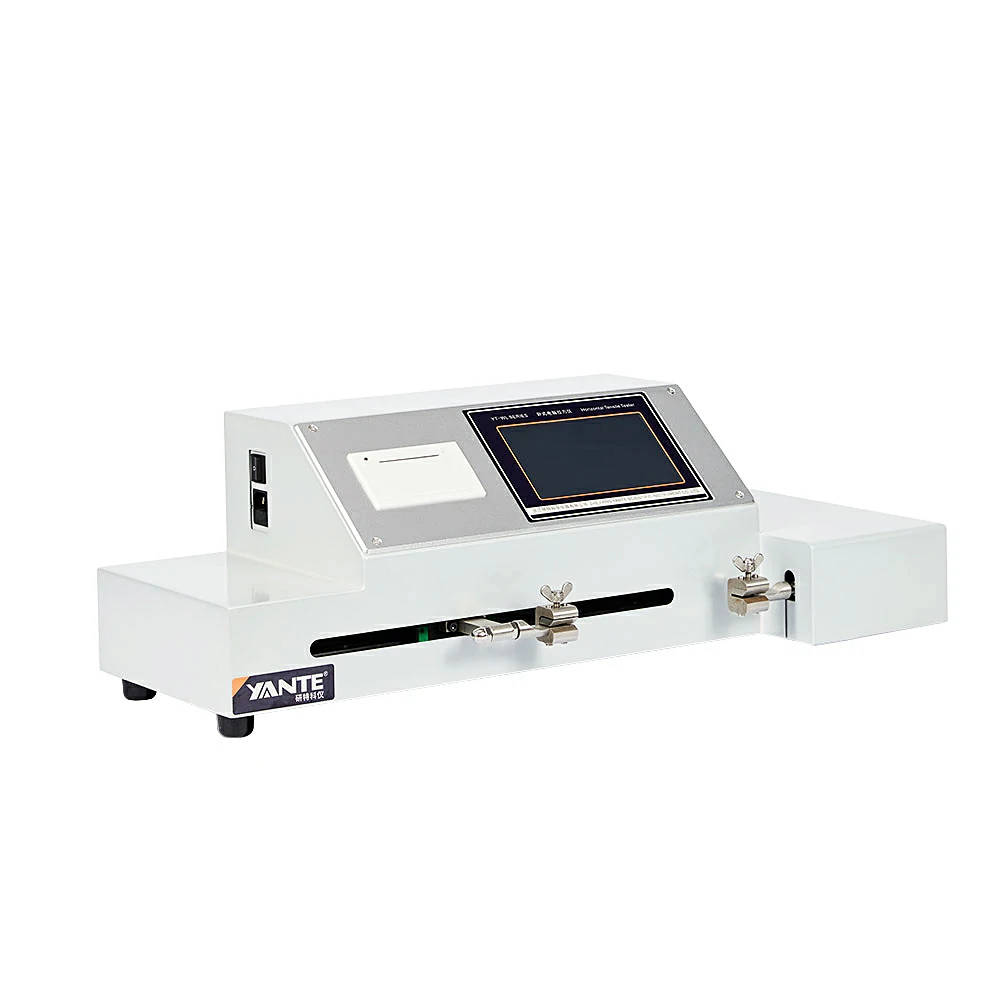

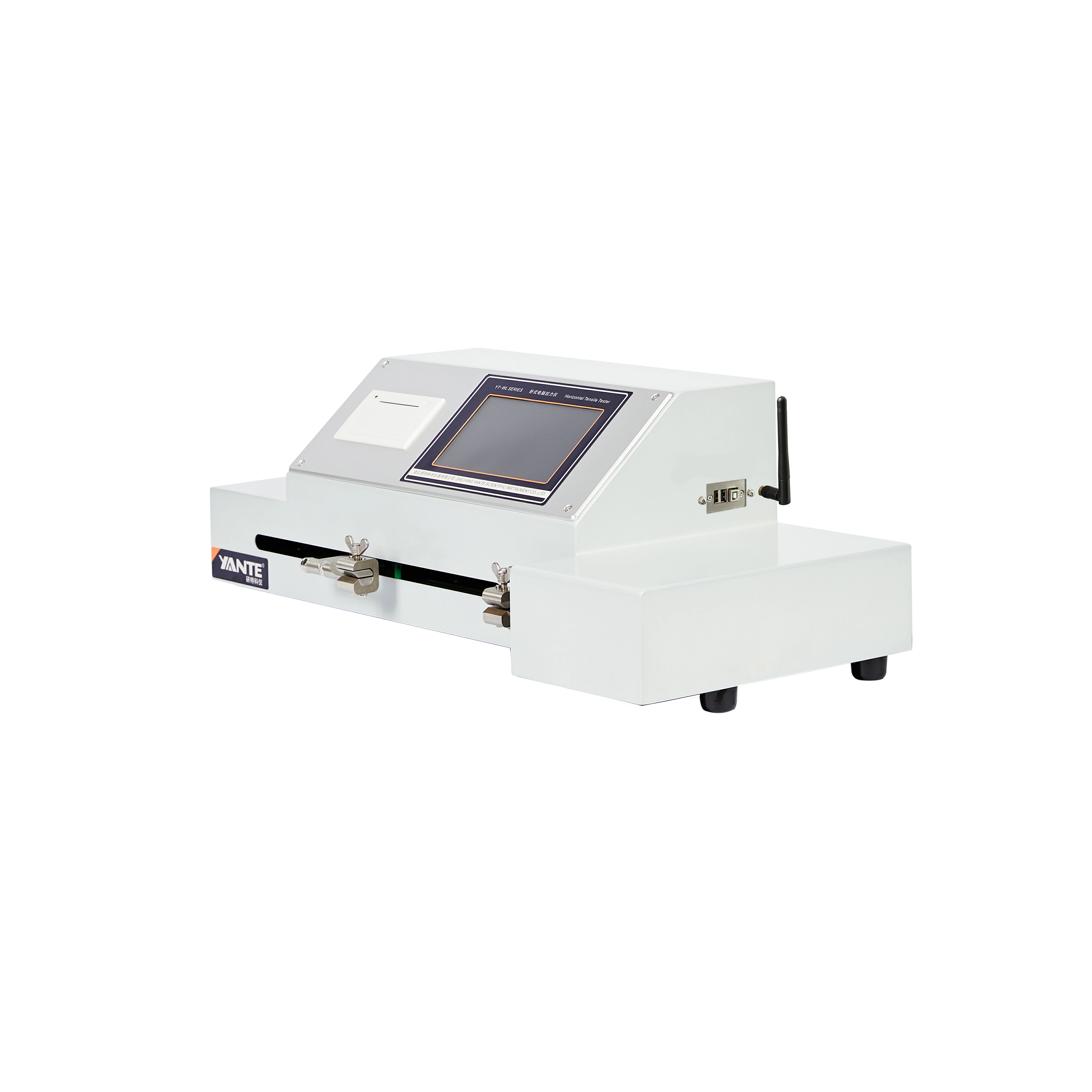

YT-WL Series Horizontal Tensile Tester

application range.jpg

● Paper, cardboard; aluminum foil, aluminum-plastic tape;

● Plastic film and other non-metallic materials.

● Non-woven fabric

product function.jpg

● Measure tensile and tensile strength

● Measuring elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus

● Measure the peel strength of adhesive tape

product features.jpg

● The transmission mechanism adopts a ball screw and three guide shafts, and the transmission is stable and accurate.

● Using closed-loop servo stepping motor, low noise and precise control.

● Real-time display of stretching curve.

● The ARM processor improves the response speed of the instrument and ensures the real-time performance of the measurement.

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Features of automatic reset, data memory, overload protection and fault self-diagnosis.

● Cooperate with computer software for communication (purchased separately).

executive standard.jpg

GB/T 12914，GB/T 2792，GB/T 24218.3，GB/T 1040，TAPPI T 494

supporting accessories and consumable.jpg

No.	Accessory name	Model	Picture	Standard	Optional
1	Standard Distance Cutter	YT-Q15			√
2	Punch Standard Distance Cutter	YT-CQ15			√
3	Adjustable Paper Cutter	YT-TJD300			√

technical parameters.jpg

No.	Parameter item	Technical index
1	Power Supply	AC(100～240)V，(50/60)Hz 100W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Display	7 inch color touch screen
4	Measuring range	(0.15～30)N /(1～300)N /(3～1000)N
5	Display resolution	0.01N(WL30) / 0.1N(WL300) / 0.1N(WL1000)
6	Indication error	±1%(Range5%～100%)
7	Work stroke	300mm
8	Sample width	15mm(25mm，50mm Optional)
9	Stretching speed	(1～500)mm/min((Can be adjusted arbitrarily)
10	Print	Built-in thermal printer
11	Communication Interface	RS232(Default) (USB, WIFI optional)
12	Dimension	700×310×240 mm
13	Net Weight	35kg around
