Send from factory in 3-7 work days after receive payment

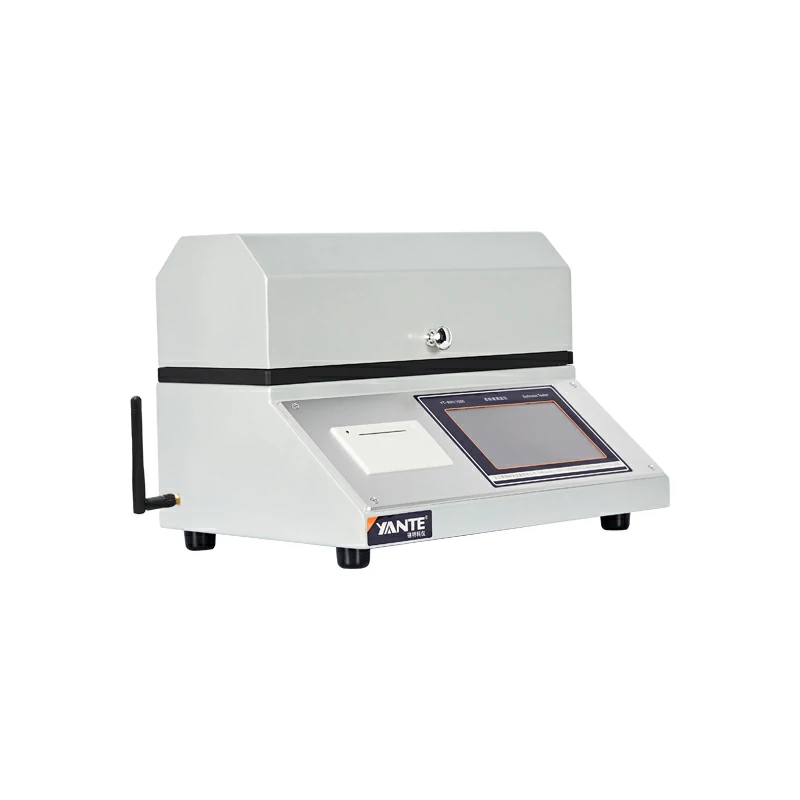

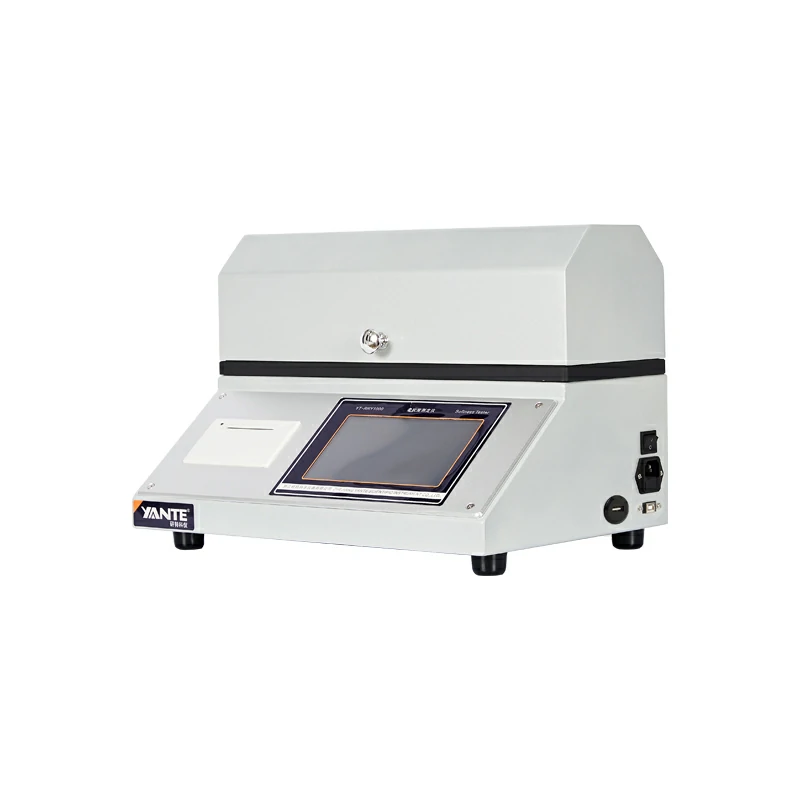

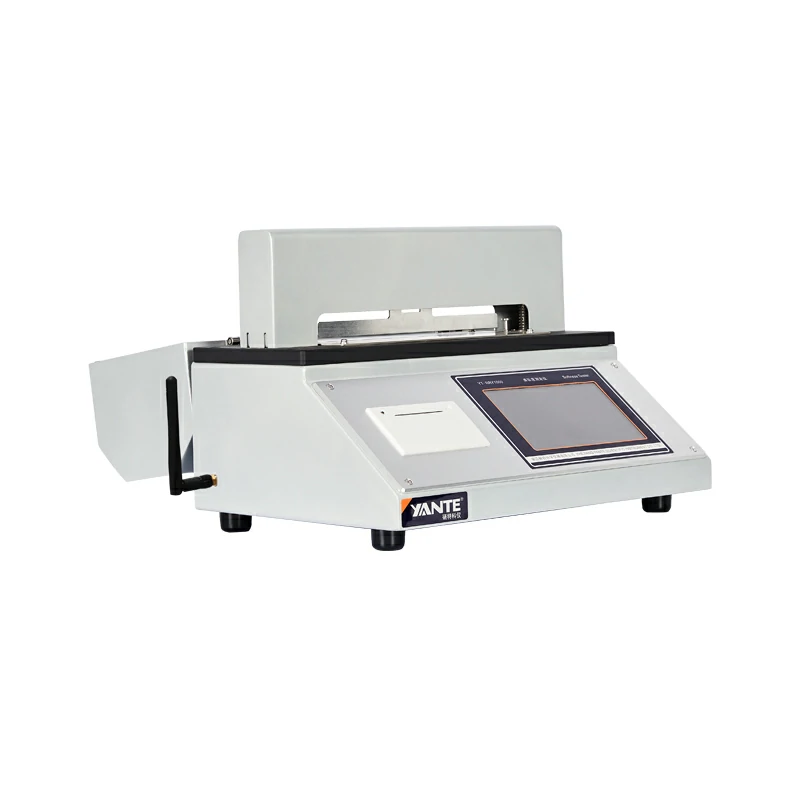

YANTE
YT-RRY3000
China
100% Advance T/T
Wooden Box
Toilet paper, tobacco sheet, fiber fabric, non-woven fabric, cloth, film, etc.
● One-click test, easy to understand
● ARM processor improves the response speed of the instrument, and calculates data accurately and quickly
● Real-time display of pressure curve
● Sudden power failure data saving function, the data before the power failure is retained after the power is turned on and the test can be continued
● Software and hardware over-range to ensure the safety of the sensor
● Communication with computer software (purchase separately)
GB/T8942，QB/T1060，GB/T41567
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen |
4 | Measuring range | (10～3000)mN |
5 | Indication Resolution | 0.1mN |
6 | Indication error | ±1％(Range 5%～100%) |
7 | Total probe stroke | （12±0.5）mm (Process adjustable) |
8 | Probe indentation depth | 8mm |
9 | test speed | 1.2±0.012mm/s (72±0.72 mm/min) (1-250 mm/min adjustable) |
10 | Specimen table gap width | 5/6.35/10/20mm (Four gears adjustable) |
11 | Slit parallelism error | ≤0.05mm |
12 | Probe centering error | ≤0.05mm |
13 | Built-in thermal printer | |
14 | Communication Interface | RS232(Default) (USB, WIFI optional) |
15 | Dimension | 425×290×305 mm |
16 | Net Weight | 20kg |
Softness Tester is a new type of high-precision intelligent tester carefully and rationally designed with modern mechanical design concepts and computer processing technology. It is an ideal experimental equipment for papermaking, scientific research and quality inspection industries and departments.
Vertical Tensile Tester is used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects.
Vertical Tensile Tester is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects.
Electronic Thickness Tester is a special instrument for measuring the Non-woven Fabric. It is widely used for measuring the thickness of Non-woven Fabric. It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.
