YT-YS3000A Crush Tester
Crush Tester is an ideal auxiliary test tool for papermaking companies, cardboard manufacturers, carton manufacturers, carton users, and quality supervision and inspection departments.
المنتجات
المنزل > المنتجات > معدات اختبار الورق واللب > التفاصيل
Χ️

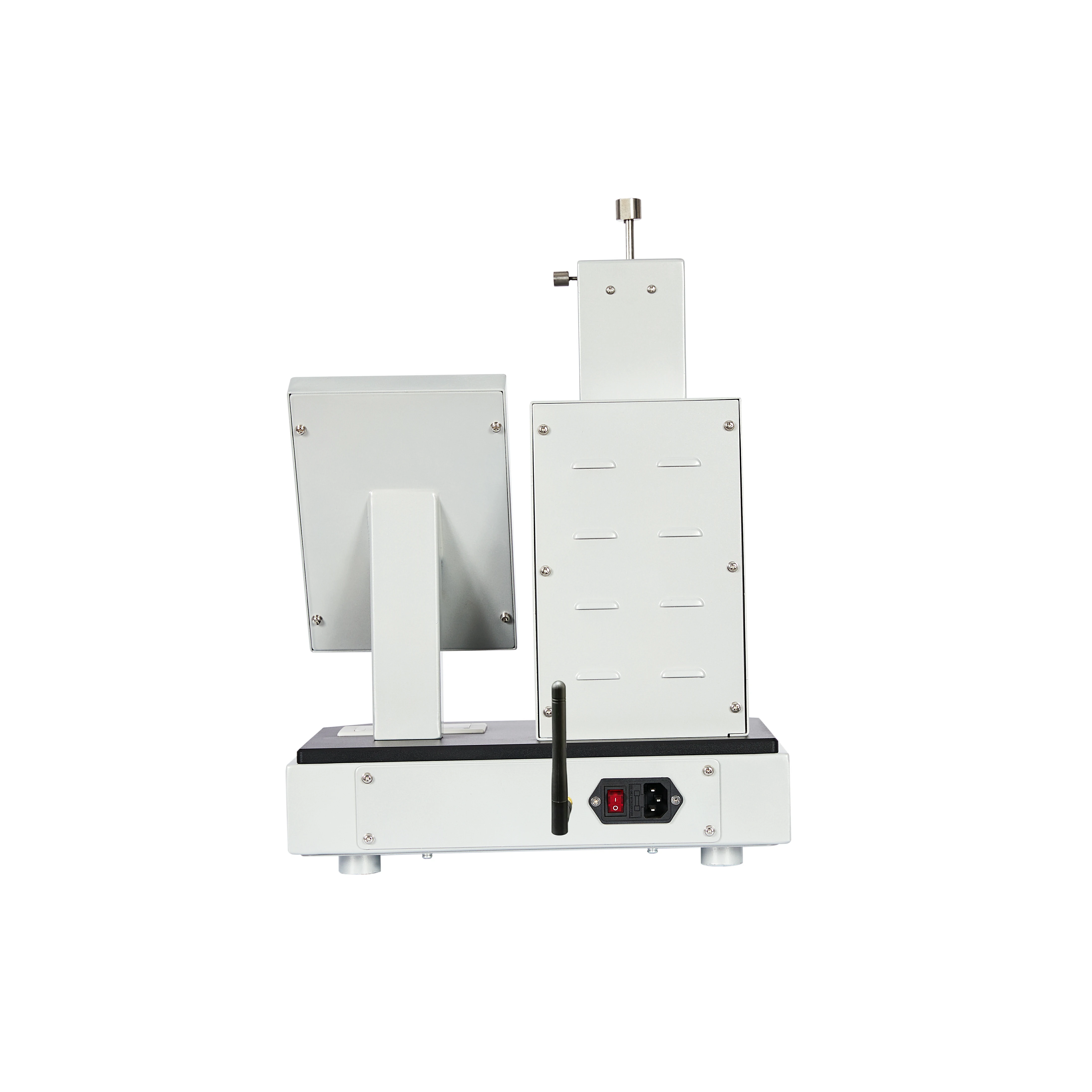

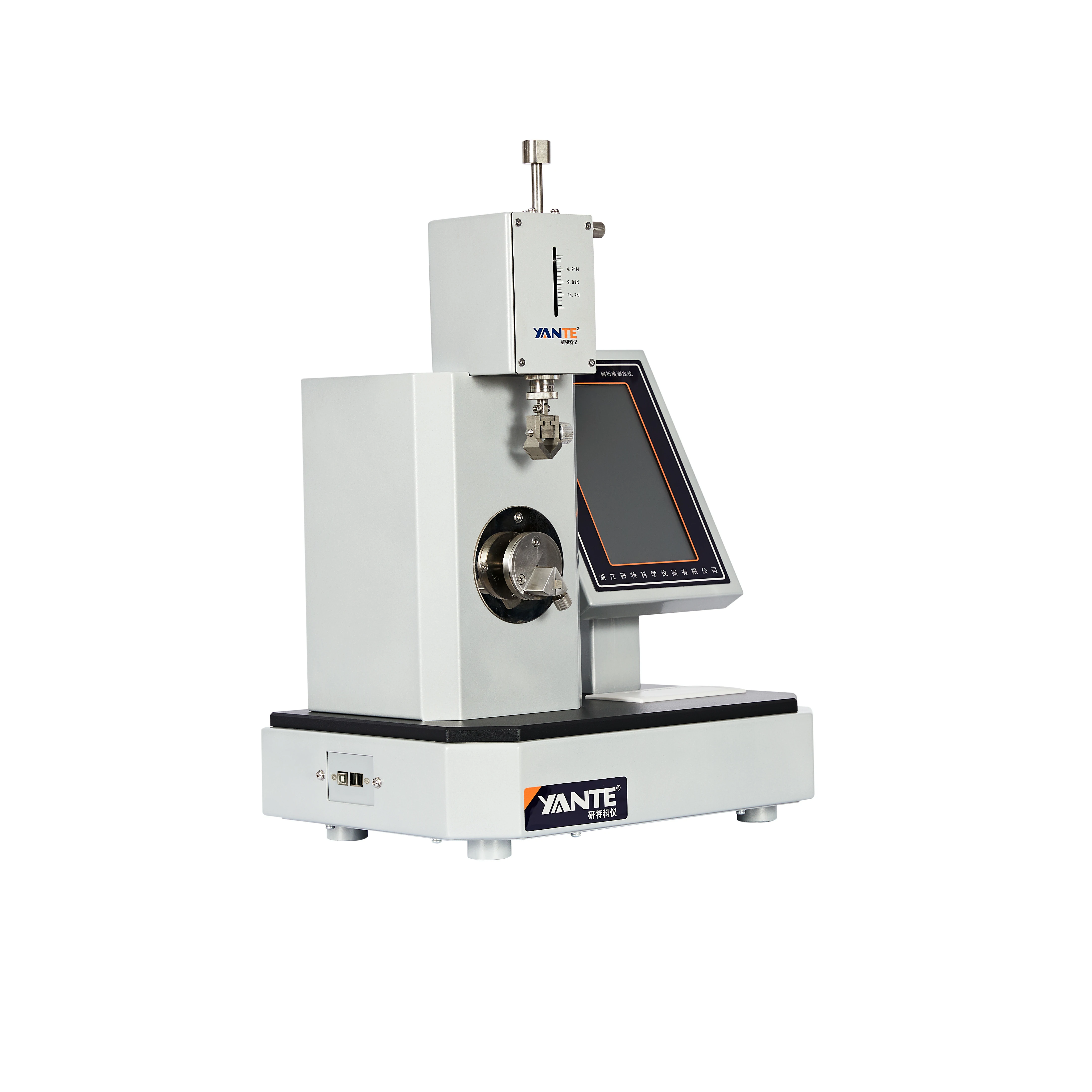

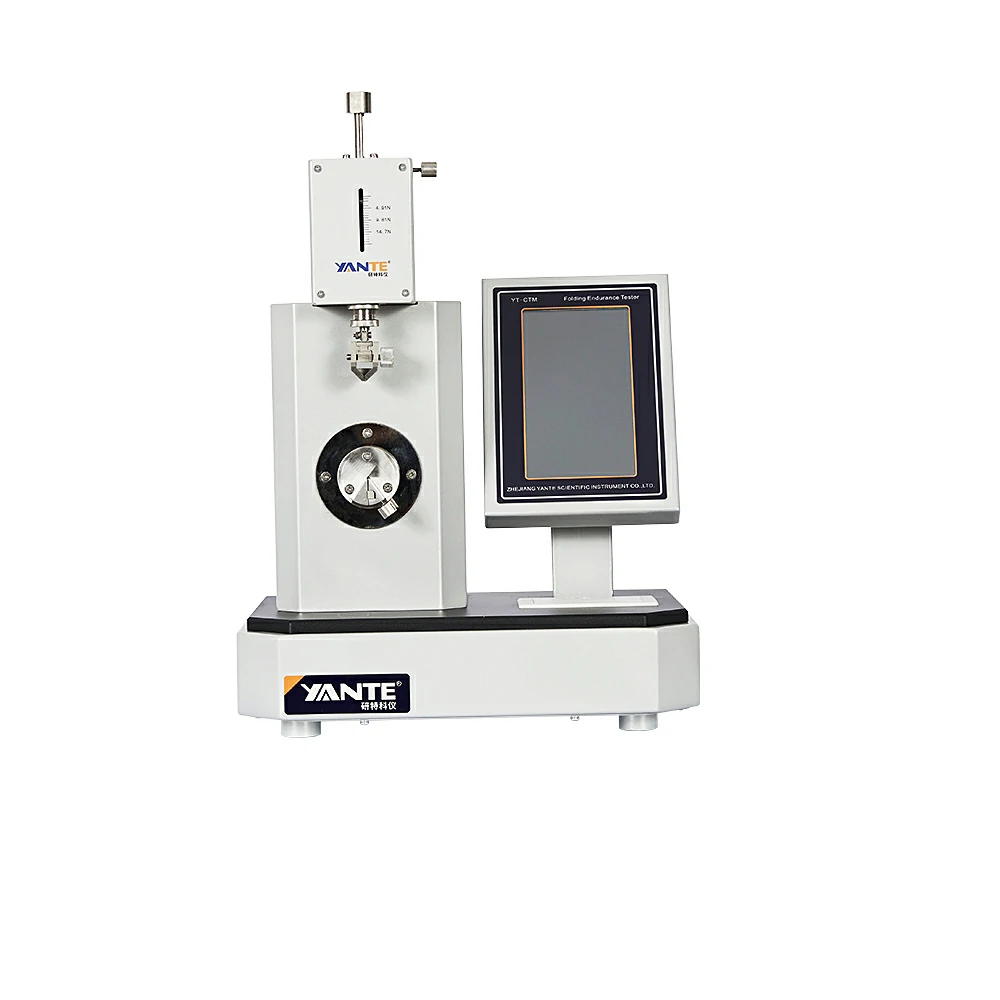

YT-CTM Folding Endurance Tester
- التسليم：
Send from factory in 3-7 work days after receive payment
- اسم العلامة التجارية：
YANTE
- الموديل：
YT-CTM
- مكان المنشأ：
China
- المدفوعات：
100% Advance T/T
- العبوة：
Wooden Box
تفاصيل المنتج
0~1mm thickness of paper, cardboard
0~1mm thickness of glass fiber, film, circuit board, copper foil, cable, etc.
● Using high closed loop stepping motor, the rotation angle and folding speed are accurate and stable
● ARM processor improves the corresponding speed of the instrument, and calculates the data accurately and quickly
● Automatic measurement, statistics, and printing of test results, and has the function of data storage
● Standard RS232 interface, with computer software for communication (purchased separately)
GB/T 457，QB/T1049，ISO 5626，ISO 2493
No. | Accessory name | Model | Picture | Standard | Optional |
1 | Standard Distance Cutter | YT-Q15 | | √ | |
2 | Punch Standard Distance Cutter | YT-CQ15 |
| √ | |
3 | Adjustable Paper Cutter | YT-TJD300 |
| √ |
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 100W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 5 inch color touch screen |
4 | Measuring range | 0-99999times |
5 | Fold radius | 0.38±0.02 mm |
6 | Folding angle | （135±2）° |
7 | Spring tension | 4.91/9.81/14.72 N |
8 | Folding head gap | （0.25/0.50/0.75/1.00）mm |
9 | Built-in thermal printer | |
10 | Built-in thermal printer | RS232(Default) (USB, WIFI optional) |
11 | Dimension | 360×255×500 mm |
12 | Net Weight | 17kg around |
