Send from factory in 3-7 work days after receive payment
YANTE
YT-MC05
China
100% Advance T/T
Wooden Box
Plastic film and sheet

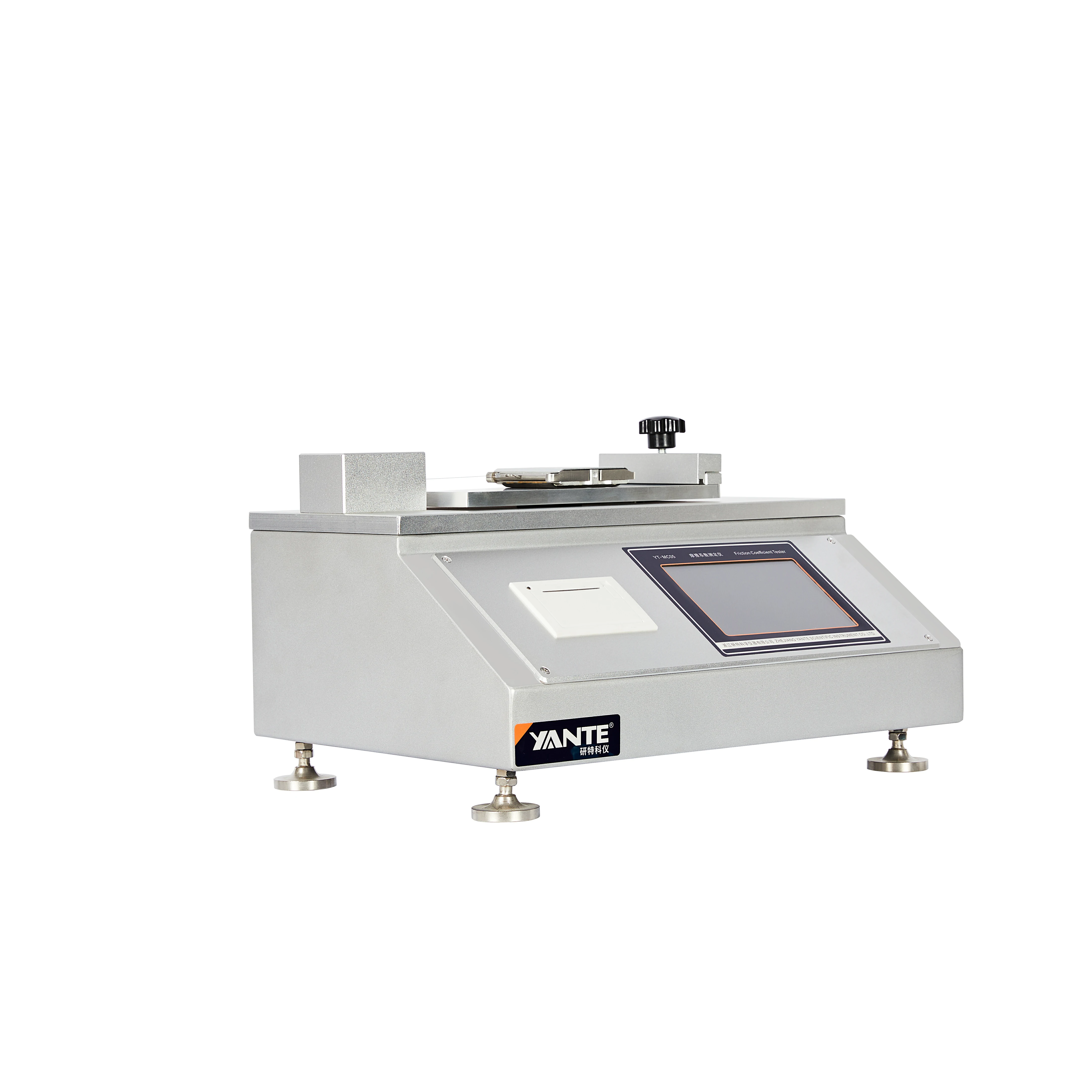

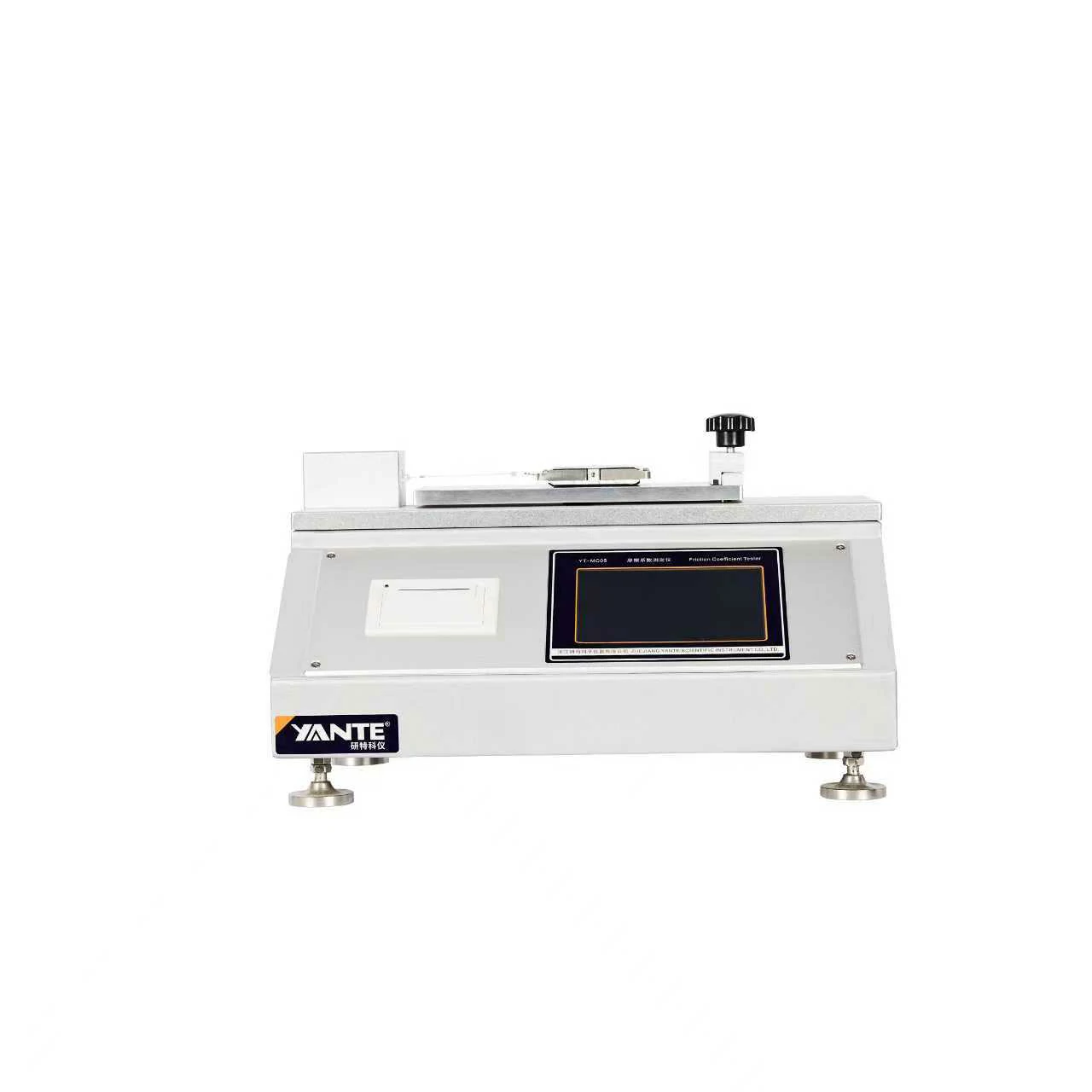

● ARM processor, 7-inch large-screen color touch screen
● Test data memory function, high-speed thermal printer print output, fully automatic test function
● Test data statistical processing function, real-time display of test data and curves
● The closed-loop servo motor drives the precision ball screw to ensure accurate displacement, smooth operation and low noise.
● Cooperate with computer software for communication (purchased separately)
GB10006-1988
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 100W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 800×480 7 inch color touch screen |
4 | Force measuring range | （0.05～10）N |
5 | Resolution | 0.001N |
6 | Slider size | 63×63 mm |
7 | Slider weight | 200±2g（For Paper 800g customizable） |
8 | Test bench size | 200×455 mm |
9 | Measurement accuracy | ±0.5%(Range 5%～100%) |
10 | Slider movement speed | （100±10）mm/min |
11 | Slide stroke | 100 mm |
12 | Communication Interface | RS232(Default) (USB, WIFI optional) |
13 | Dimension | 460×330×280 mm |
14 | Net Weight | 17.5kg around |
High Accurancy Color Analyzer is a precision instrument for measuring the whiteness, color and color difference of solids. It is widely used in papermaking, printing, textile printing and dyeing, ceramics, building materials, chemical, food, salt and other industries industries that need to determine the color and whiteness of solids in Production and commodity inspection department.
The Automatic Smoothness Tester is an intelligent paper and cardboard smoothness performance testing instrument developed based on the working principle of Bekk smoothness tester. It is an ideal testing equipment for papermaking, packaging, printing, commodity inspection, scientific research and other departments.
This instrument adopts a unique horizontal design. It is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries that need to determine the tensile strength of objects. And commodity inspection department.

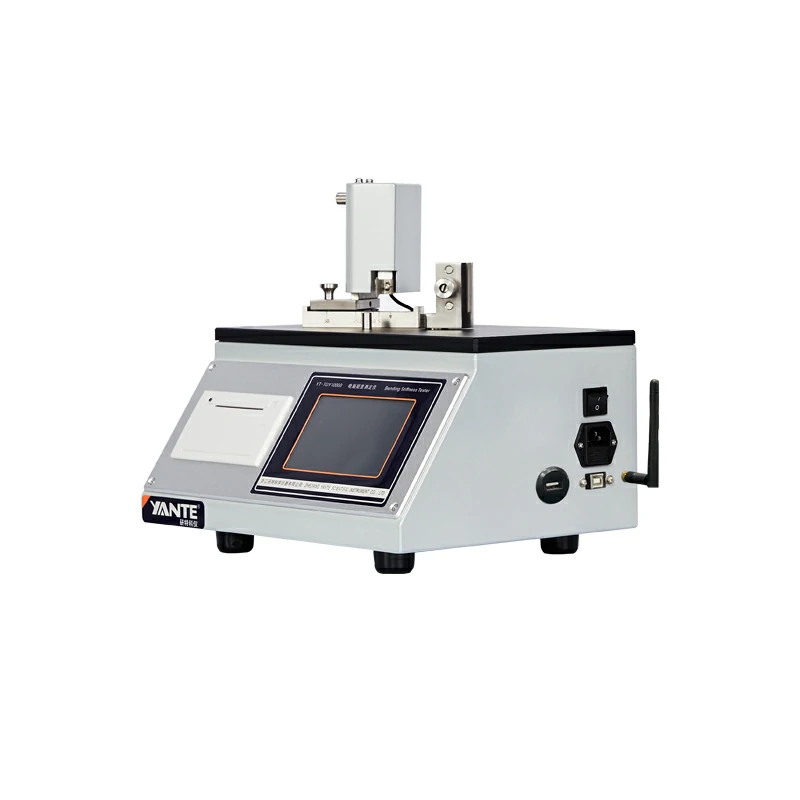

Bending Stiffness Tester is a multi-functional intelligent computerized stiffness tester, which calculates the test results intelligently and is widely used in papermaking enterprises, packaging manufacturers, quality inspection agencies and other units.
