Send from factory in 3-7 work days after receive payment
YANTE
YT-H4E
China
100% Advance T/T
Wooden Box
● One-click test, easy to understand
● ARM processor improves the response speed of the instrument, and the calculation is accurate and fast
● The rising and falling speed of the probe can be adjusted
● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
● Automatic measurement, statistics, and printing of test results
● Communication with computer software (purchased separately)
GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen |
4 | Measuring range | (0～10)mm |
5 | Resolution | 0.001mm |
6 | Indication error | ±0.003mm or ±0.5％ |
7 | Indication variability | ≤0.003mm or ≤0.5％ |
8 | Parallelism between measuring surfaces | ≤0.0004mm |
9 | Contact area | (1000±5) mm² |
10 | Contact pressure | （2±0.1)kPa |
11 | Probe descending speed | （0.5～10）mm/s Adjustable |
12 | Built-in thermal printer | |
13 | Communication Interface | RS232(Default) (USB, WIFI optional) |
14 | Dimension | 365×255×440 mm |
15 | Net Weight | 24kg |
The Tissue Powder Drop Rate Tester is a basic instrument for measuring the powder drop rate of toilet paper and its products. Fix the long end of the sample on the sample holder and stop after swinging for a certain period of time, and weigh the mass before and after the swing.
This instrument adopts a unique horizontal design. It is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries that need to determine the tensile strength of objects. And commodity inspection department.
Ball Burst Tester uses the principle of puncturing the sample with a spherical test head to analyze the burst strength of dry and wet samples.

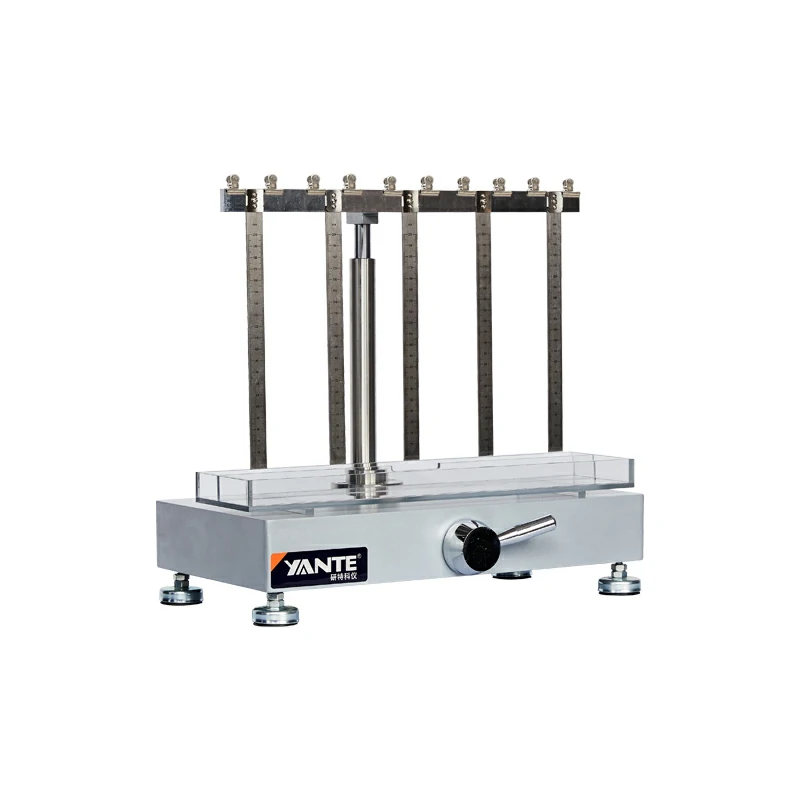

This instrument is mainly used for unsized paper such as toilet paper and other papers with high water absorption. It is not suitable for paper with a capillary liquid absorption height of less than 5mm within 10 minutes.
