Send from factory in 3-7 work days after receive payment
YANTE
YT-BBT50
China
100% Advance T/T
Wooden Box
Toilet paper, paper handkerchief
Dry and wet bursting strength of paper towels, toilet paper, paper handkerchiefs, etc.
● lBall screw and linear guide rail drive smoothly.
● Double cylinder clamping and clamping are even and reliable.
● Automatic quantitative water addition, convenient for wet burst strength test.
● ARM processor, 24-bit analog-to-digital converter, real-time control, accurate test.
● 7-inch color touch screen, real-time display of tension-deformation curve.
● Sudden power failure data storage function to prevent accidental loss of test data.
● With data memory, overload protection function.
● Compatible with computer software for communication (purchased separately).
GB/T 24328.7-2020 Tissue paper and tissue products—Part 7:Determination of ball burst strength
GB/T 24328.9-2020 Tissue paper and tissue products-Part 9:Determination of wet ball burst strength
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz，50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen |
4 | Measuring range | (0～50)N |
5 | Indication resolution | 0.001N |
6 | Indication error | ±0.5%(Measuring Range 5%～100%) |
7 | Indication volatility | ≤0.5% |
8 | Pressure ring diameter | Standard：Φ50±0.2 mm Optional：Φ89±0.2 mm |
9 | Probe travel | 75mm |
10 | Ball diameter | Φ16 ± 0.05mm |
11 | Test speed | 125 ± 0.1 mm/min （1-200mm/min Continuously adjustable) |
12 | Thermal printer | |
13 | Communication Interface | RS232(default) (USB, WIFI optional) |
14 | Dimension | 400×300×550 mm |
15 | Net Weight | About 35kg |
Tissue Paper Electronic Thickness Tester is a special instrument for measuring the thickness of paper and paperboard. It is widely used for measuring the thickness of toilet paper and other sheet materials and corrugated paperboard. It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.
The Tissue Powder Drop Rate Tester is a basic instrument for measuring the powder drop rate of toilet paper and its products. Fix the long end of the sample on the sample holder and stop after swinging for a certain period of time, and weigh the mass before and after the swing.
This instrument adopts a unique horizontal design. It is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries that need to determine the tensile strength of objects. And commodity inspection department.

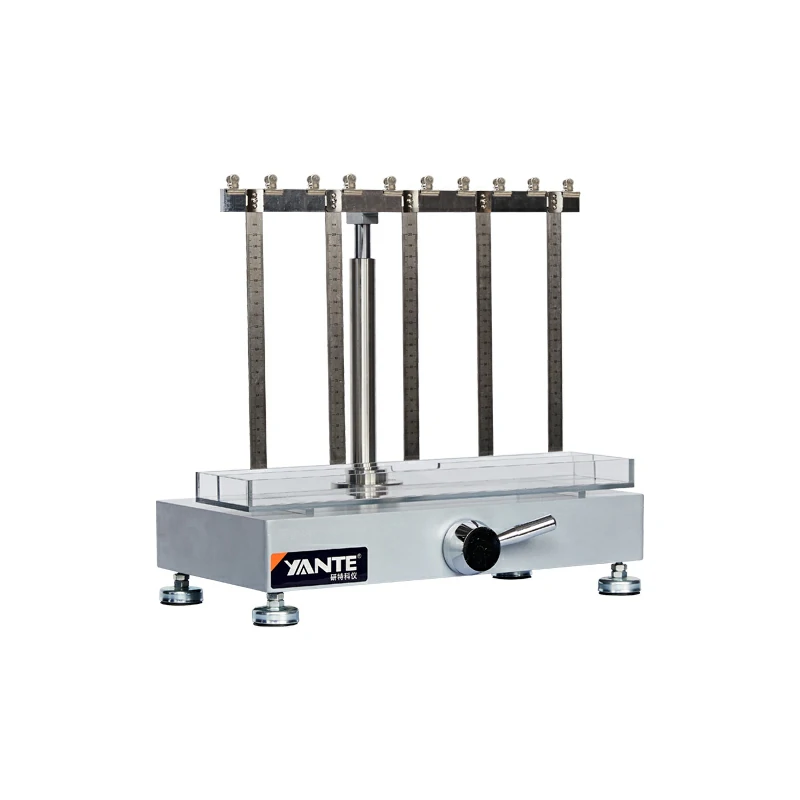

This instrument is mainly used for unsized paper such as toilet paper and other papers with high water absorption. It is not suitable for paper with a capillary liquid absorption height of less than 5mm within 10 minutes.
