Send from factory in 3-7 work days after receive payment
YANTE
YT-TDY10000
China
100% Advance T/T
Wooden Box
● ARM processor improves the response speed of the instrument, and calculates data accurately and quickly
● 7.5° and 15° stiffness test （arbitrary setting between 1 and 90°）
● The change of test angle is automatically controlled by the motor to improve the test efficiency
● Adjustable test time
● Automatic reset, overload protection
● The instrument is equipped with a standard RS232 interface, which can be used with PC software for communication (optional)
GB/T 23144，GB/T 22364，ISO 5628，ISO 2493
No. | Accessory name | Model | Picture | Standard | Optional |
1 | Stiffness Sample Cutter | YT-TD23 | | √ |
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Measuring range | 15～10000 mN |
4 | Indicating Accuracy | ≤50mN±0.6mN, others±1% |
5 | Resolution | 0.1mN |
6 | Indication Variation Accuracy | ±1％(Range 5%～100%) |
7 | Bending length | （50/25/20/15/10/5）±0.1mm |
8 | Bending angle | 7.5±0.3°or 15±0.3° |
9 | Bending speed | 5±0.1°/s（1~100°/s adjustable） |
10 | Built-in thermal printer | |
11 | Communication Interface | RS232 |
12 | Dimension | 310×250×295 mm |
13 | Net Weight | 12kg |
Bursting Tester for Corrugated is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the breaking strength of cardboard; simple operation, reliable performance, and advanced technology; it is a scientific research unit, paper manufacturer, packaging industry, and quality inspection department Indispensable ideal equipment.

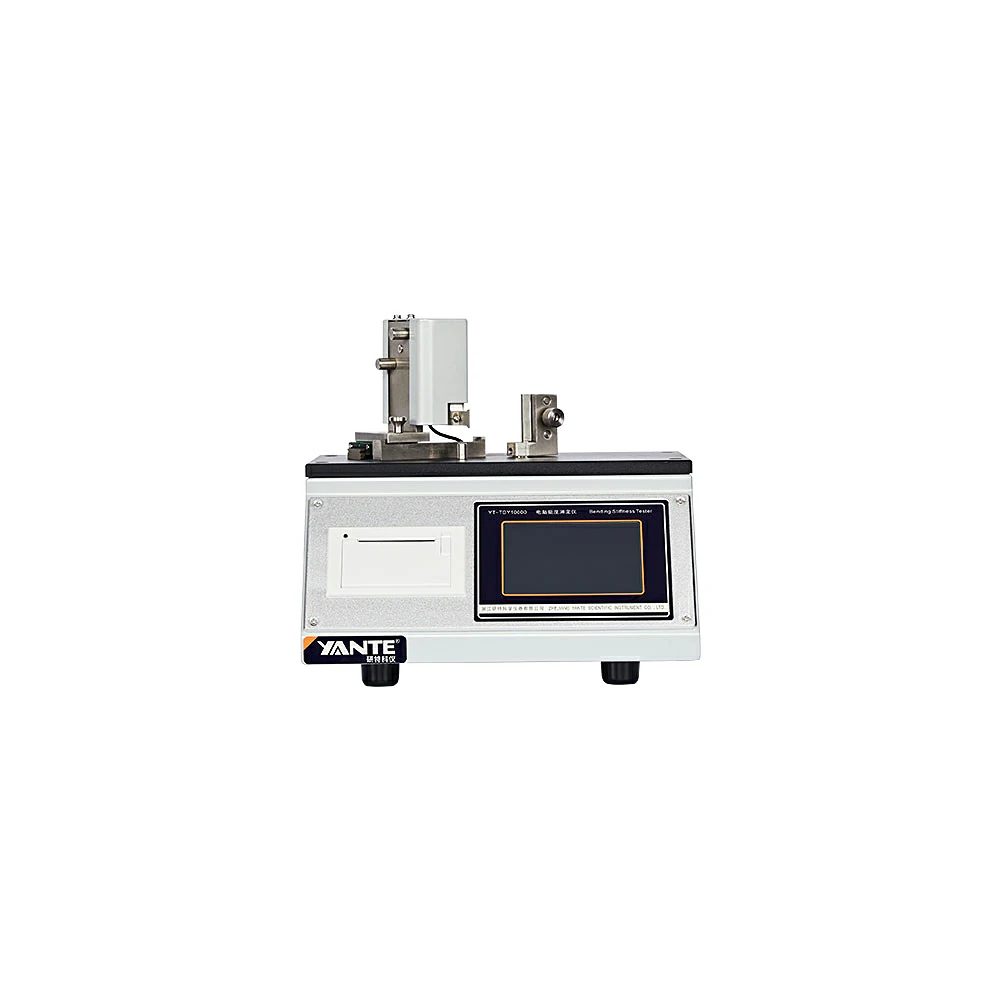

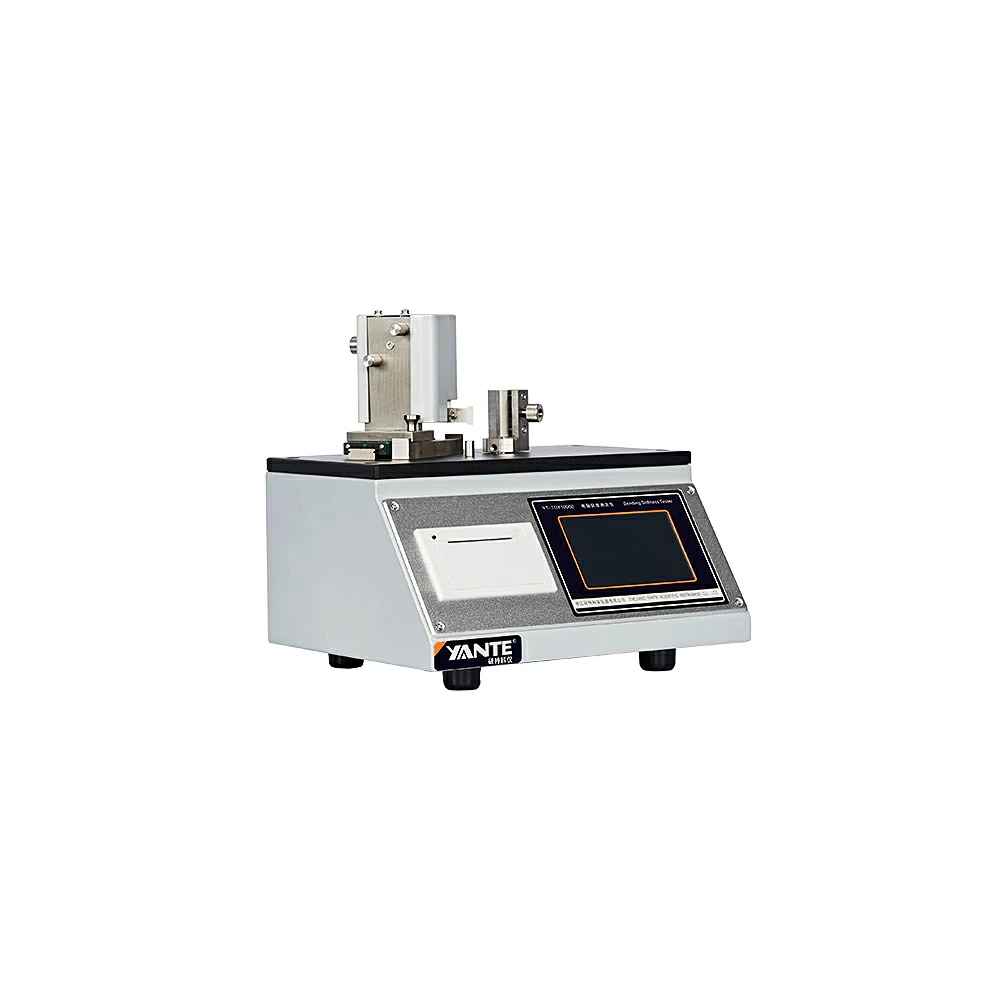

This instrument is a corrugated cardboard bending stiffness testing instrument designed and developed by our company according to the four-point loading method, which is suitable for all kinds of corrugated cardboard and cardboard. The higher bending stiffness makes the cardboard have a certain degree of rigidity and strength, and improves the ability of the carton to resist bulging, so as to improve the degree of protection of the contents.
Crush Tester is an ideal auxiliary test tool for papermaking companies, cardboard manufacturers, carton manufacturers, carton users, and quality supervision and inspection departments.
YT-H4E Electronic Thickness Tester is a special instrument for measuring the thickness of cardboard. It is widely used in the thickness measurement of cardboard and other sheet materials and corrugated cardboard. It is an ideal test equipment for industries and departments such as papermaking, packaging, scientific research and product quality supervision and inspection.
