Send from factory in 3-7 work days after receive payment
YANTE

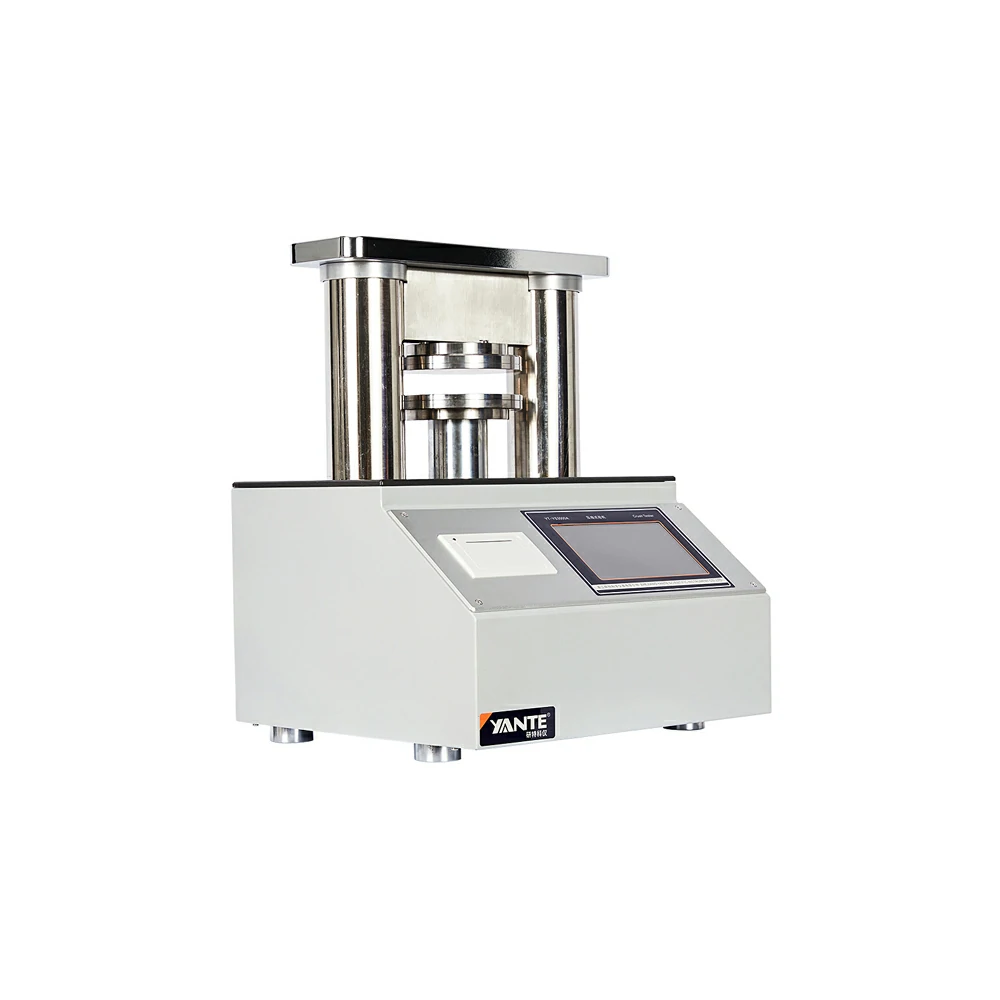

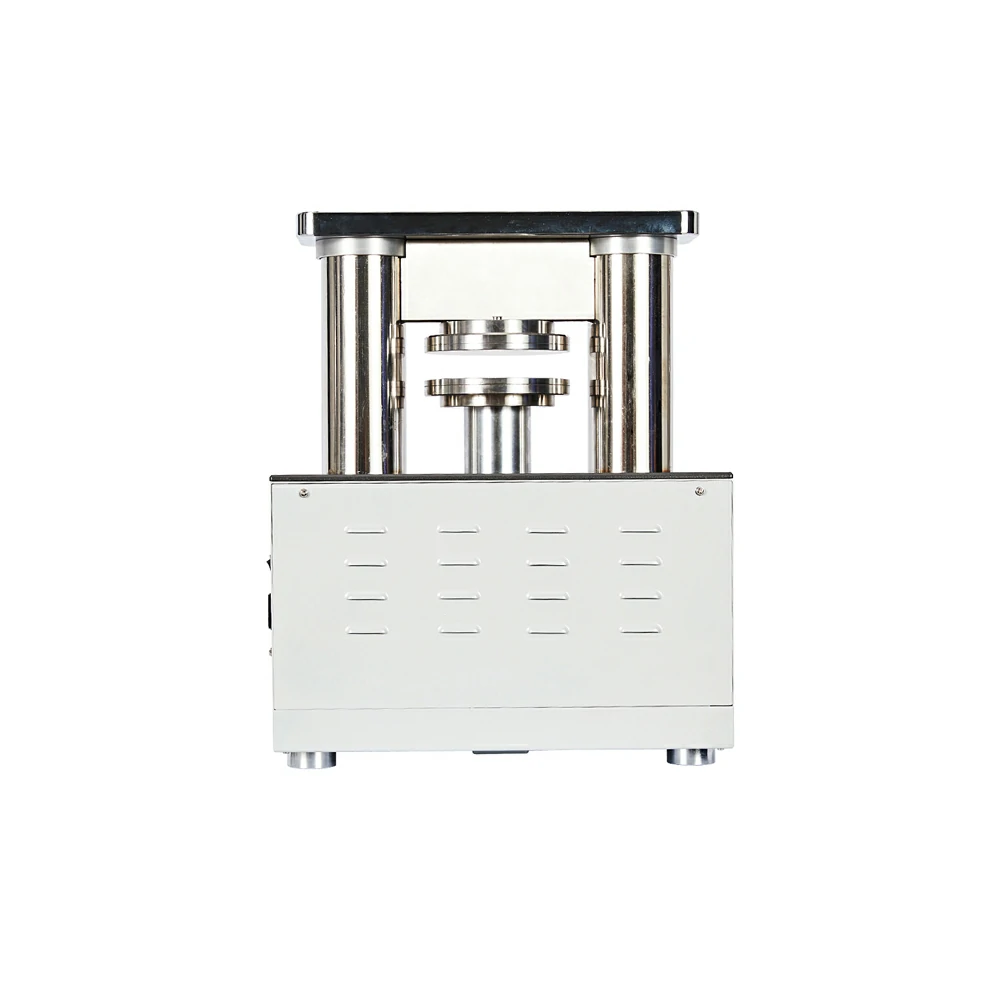

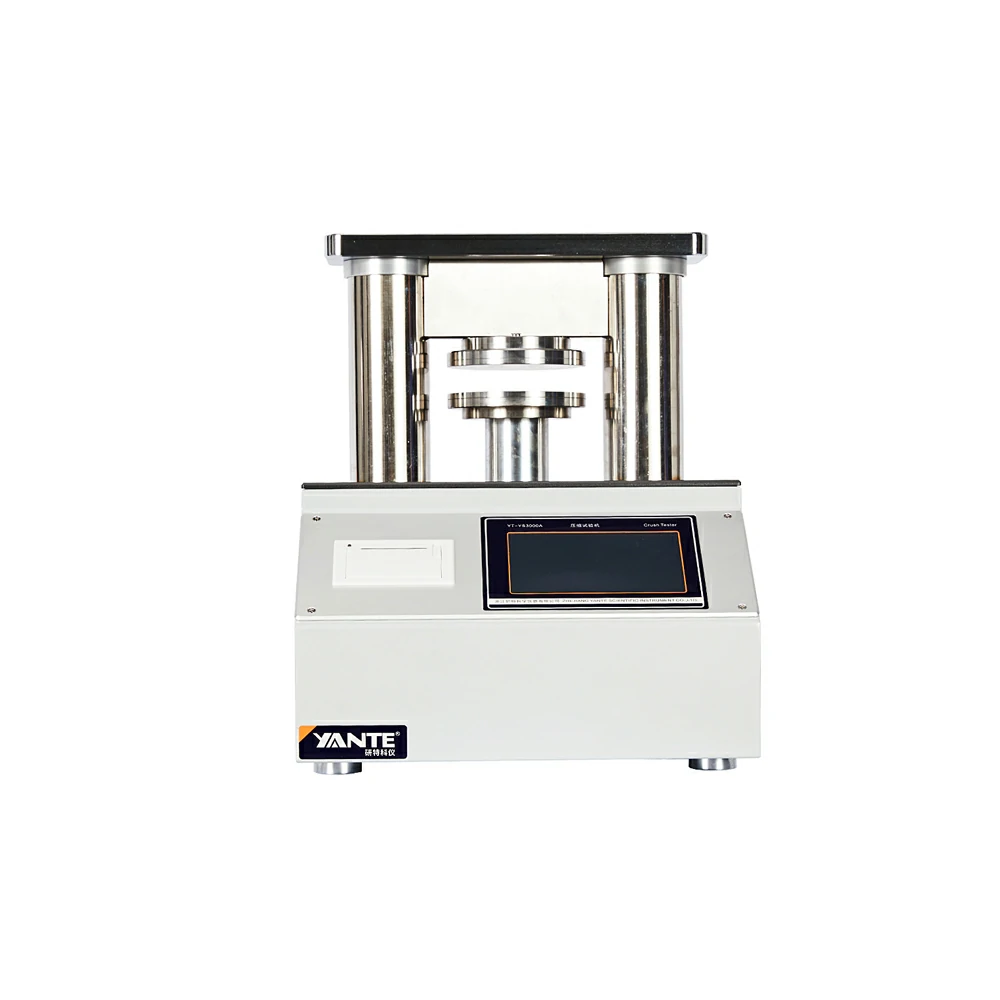

YT-YS3000A
China
100% Advance T/T
Wooden Box
● Measure corrugated base paper ring crush strength（RCT）
● Measure corrugated cardboard edge crush strength（ECT）
● Measure corrugated cardboard flat crush strength（FCT）
● Measure corrugated cardboard pin adhesion（PAT）
● Measure corrugated base paper corrugating medium strength (CMT)
● Measure corrugated base paper corrugated crush strength (CCT)
● High-precision load cell, ball screw drive, dual guide shafts
● ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.
● Real-time display of the pressure change curve during the test.
● Over-range automatic reset to protect the precision sensor.
● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
● Cooperate with computer software for communication (purchased separately).
GBT 2679.8,GBT 6546, GBT 22874,GBT 6548, GBT_2679.6
ISO 12192,ISO 3037,ISO 3035,ISO 7263,ISO 16945
TAPPI T822,TAPPI T839,TAPPI T825,TAPPI T809,TAPPI-T843
No. | Accessory name | Model | Picture | Standard | Optional |
1 | RCT Sample Cutter | YT-H152 | | √ | |
2 | RCT Central Panel | YT-SQ | | √ | |
3 | ECT (PAT) Sample Cutter | YT-B25 |
| √ | |
4 | FCT Sample Cutter | YT-PY65 |
| √ | |
5 | PAT Accessories | YT-NH23 |
| √ | |
6 | Concora Medium Fluter | YT-CMFA |
| √ |
No. | Parameter item | Technical index |
1 | Power Supply | AC 100～240V, 50Hz/60Hz 100W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen |
4 | Measuring Range | （10～3000）N，customizable（10～5000）N |
5 | Indication error | ±0.5％(Range 5%～100%) |
6 | Indication resolution | 0.1N |
7 | Indication variability | ≤0.5％ |
8 | Test speed | (12.5±1)mm/min，(1～500) mm/min adjustable |
9 | Parallelism of upper and lower platens | ＜0.02mm |
10 | Maximum distance between upper and lower platens | 80mm |
11 | Built-in thermal printer | |
12 | Communication Interface | RS232 (default) (USB, WIFI optional) |
13 | Dimension | 415×370×510 mm |
14 | Net weight | 58 kg around |
