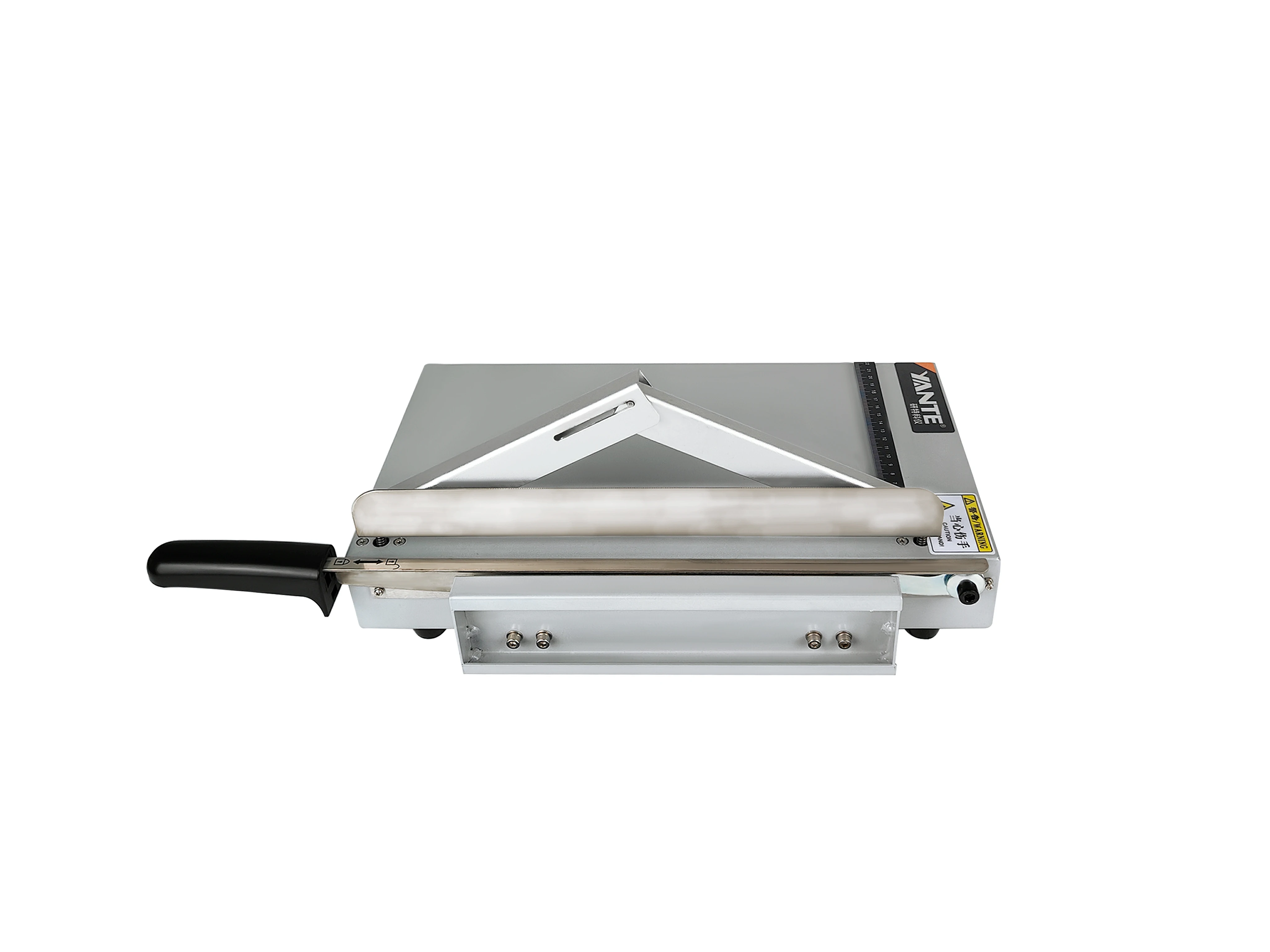

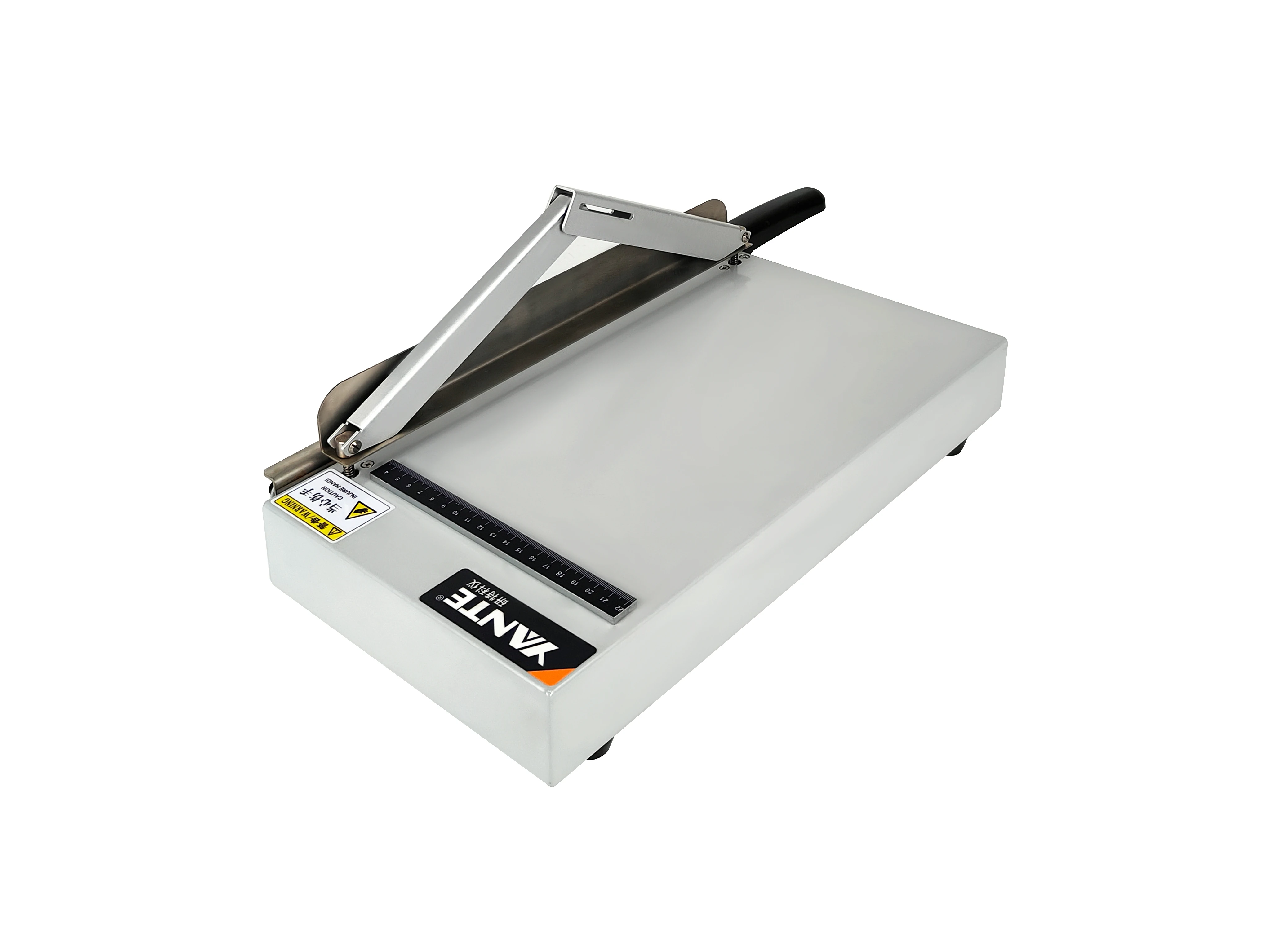

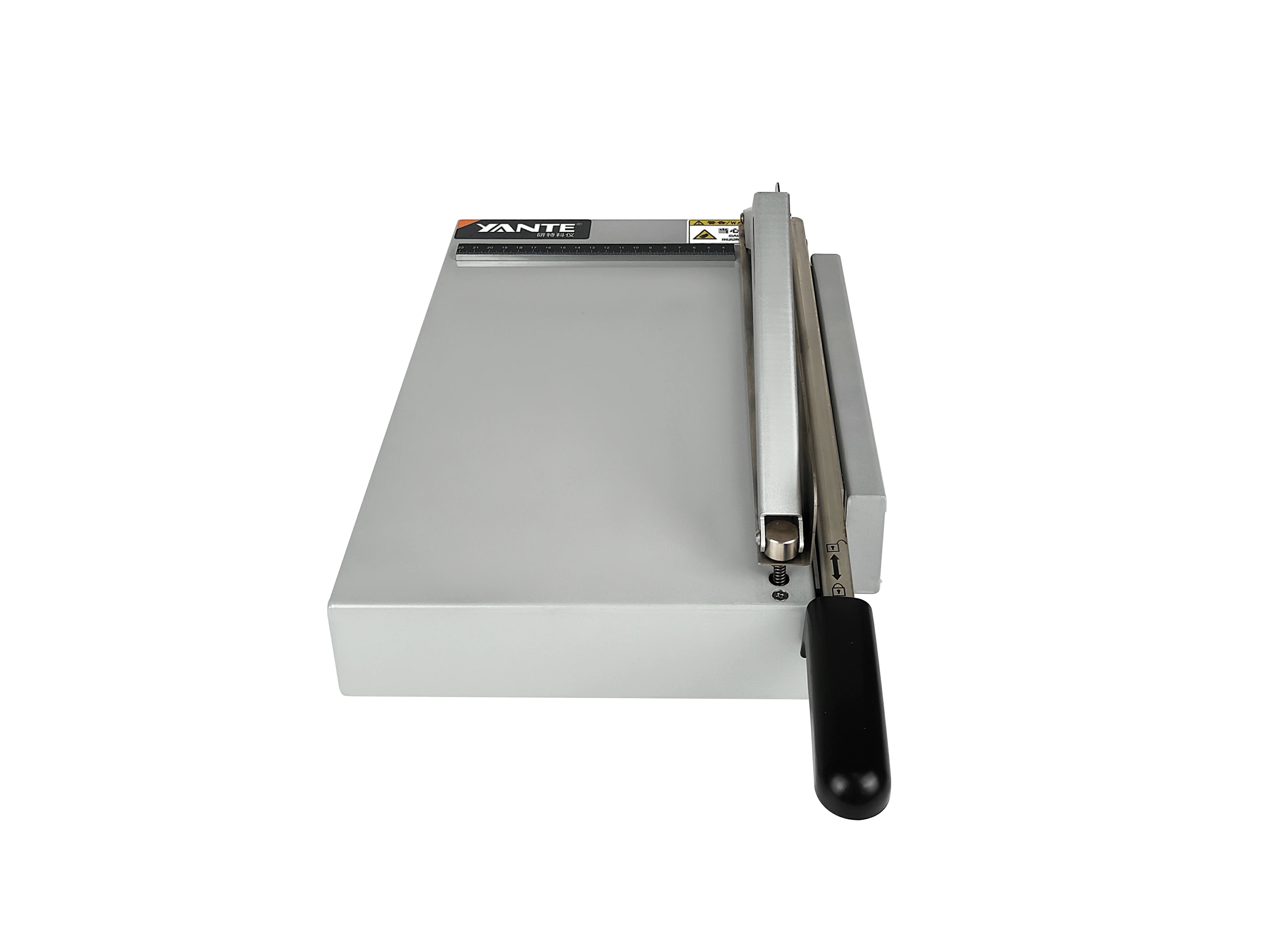

YT-Q15 Standard Distance Cutter
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-Q15
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
The Standard Distance Cutter is used to cut samples with a width of 15mm to meet the sample preparation requirements for paper and paperboard tensile tests, folding tests, short-distance compression tests, etc. It has the advantages of high sampling size accuracy and easy operation. It is an ideal test auxiliary device for industries and departments such as papermaking, packaging, scientific research, and quality inspection.
● The width of the cut sample is fixed
● The width of the sample is 15mm
QB/T1671
No. | Parameter Item | Technical indicators |
1 | Sampling width | (15±0.1)mm |
2 | Maximum sampling length | 300 mm |
3 | Parallelism of the two long sides of the sample | ≤0.1mm |
4 | Dimensions | 515×275×200 mm |
5 | Net weight | 4kg |
