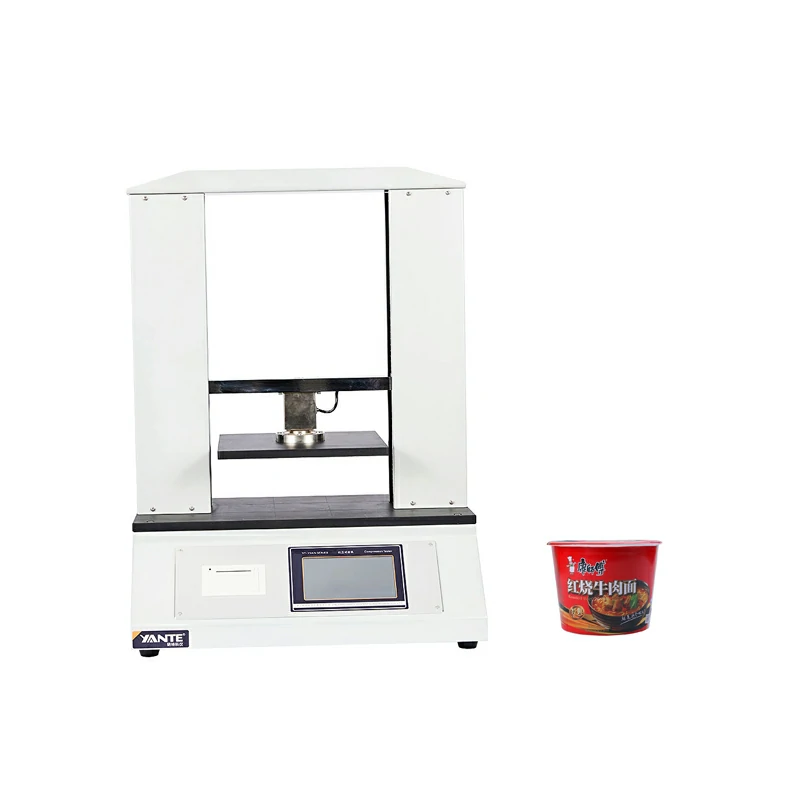

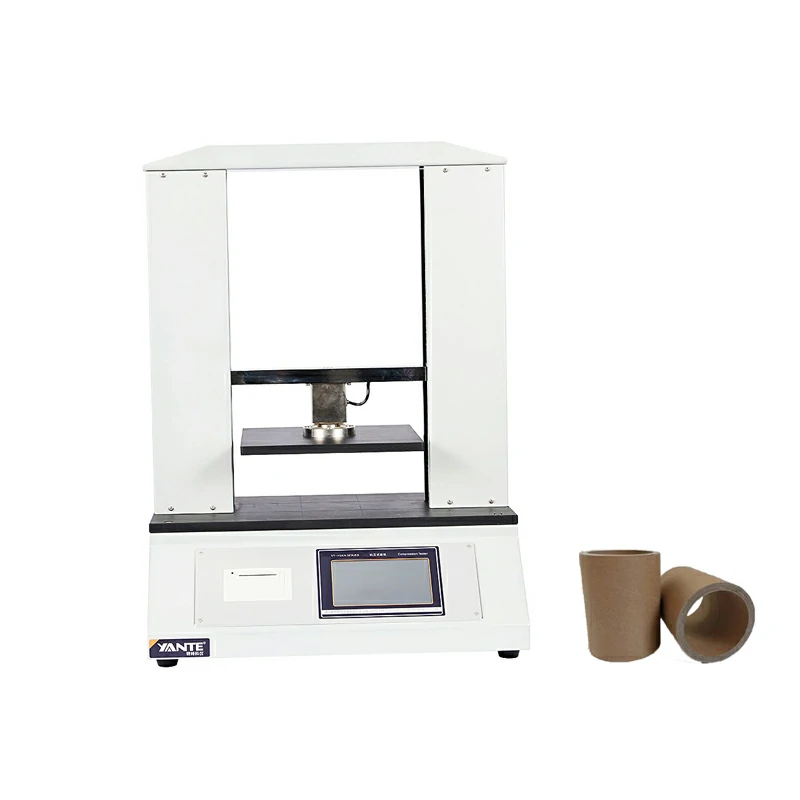

YT-YS05BKN Paper Protection Corner Tester

product features.jpg

● The ARM processor and 24-bit high-speed analog-to-digital converter improve the response speed and sampling accuracy of the instrument.

● Closed-loop servo stepping motor, ball screw, dual optical axis guide, stable operation and precise positioning.

● The 7-inch color touch screen displays the force-displacement curve in real time.

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Features of automatic reset, data memory, overload protection and fault self-diagnosis.

● Cooperate with computer software for communication (purchased separately).

executive standard.jpg

BB/T 0023

technical parameters.jpg

No.	Parameter item	Technical index
1	Power Supply	AC(100～240)V，(50/60)Hz 100W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Display	7 inch color touch screen
4	Measuring range	5N～5kN
5	Indication accuracy	±1％(Range 5%～100%)
6	Measured Area	300×300 mm
7	Work Capacity	5～300 mm
8	Parallelism Between Plates	≤ 1:2000 (0.15mm)
9	The pressure plate shakes laterally	≤ 0.05mm
10	Machine direction compression test speed	10±2 mm/min(machine direction compression) （1～500mm/min adjustable）
11	cross direction compression test speed	100±10 mm/min(cross direction compression)（1～500mm/min adjustable）
12	Return Speed	1～500 mm/min adjustable
13	Print	Built-in thermal printer
14	Communication Interface	RS232(Default) (USB, WIFI optional)
15	Dimension	600×425×840 mm
16	Net Weight	62.5kg
