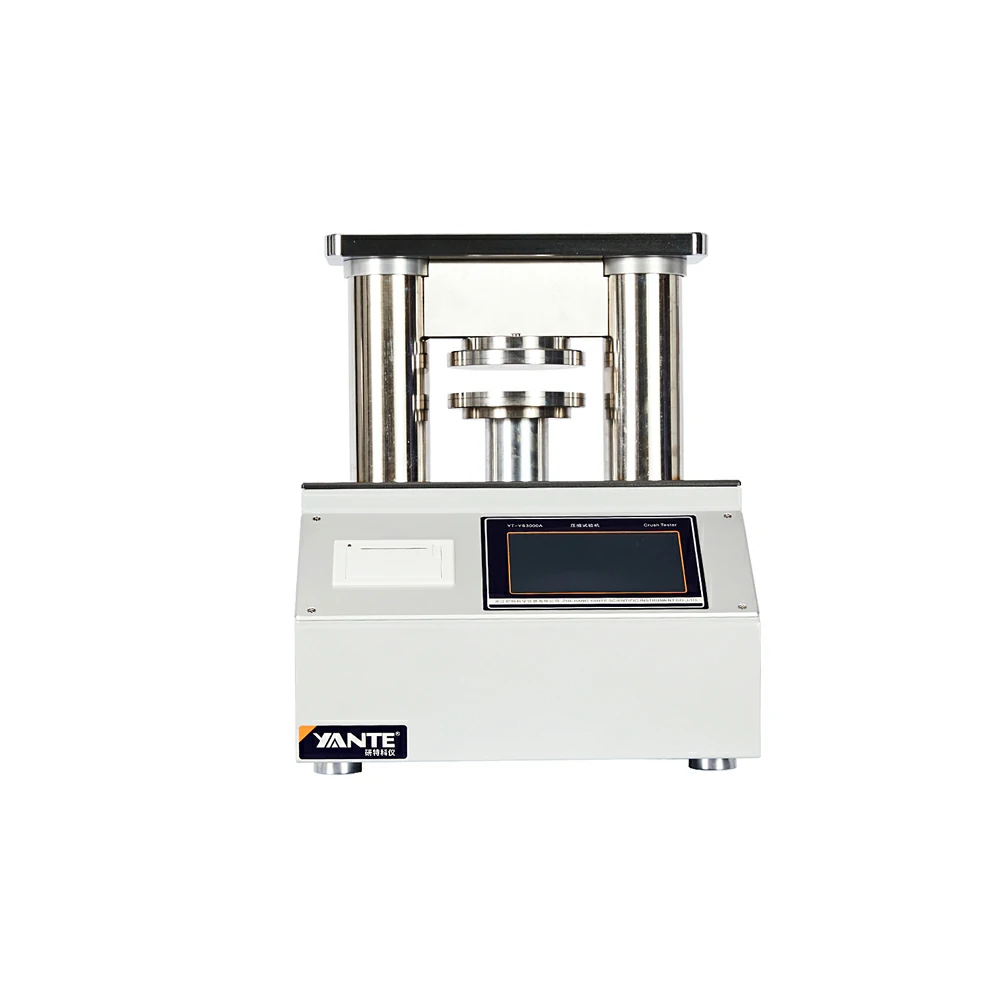

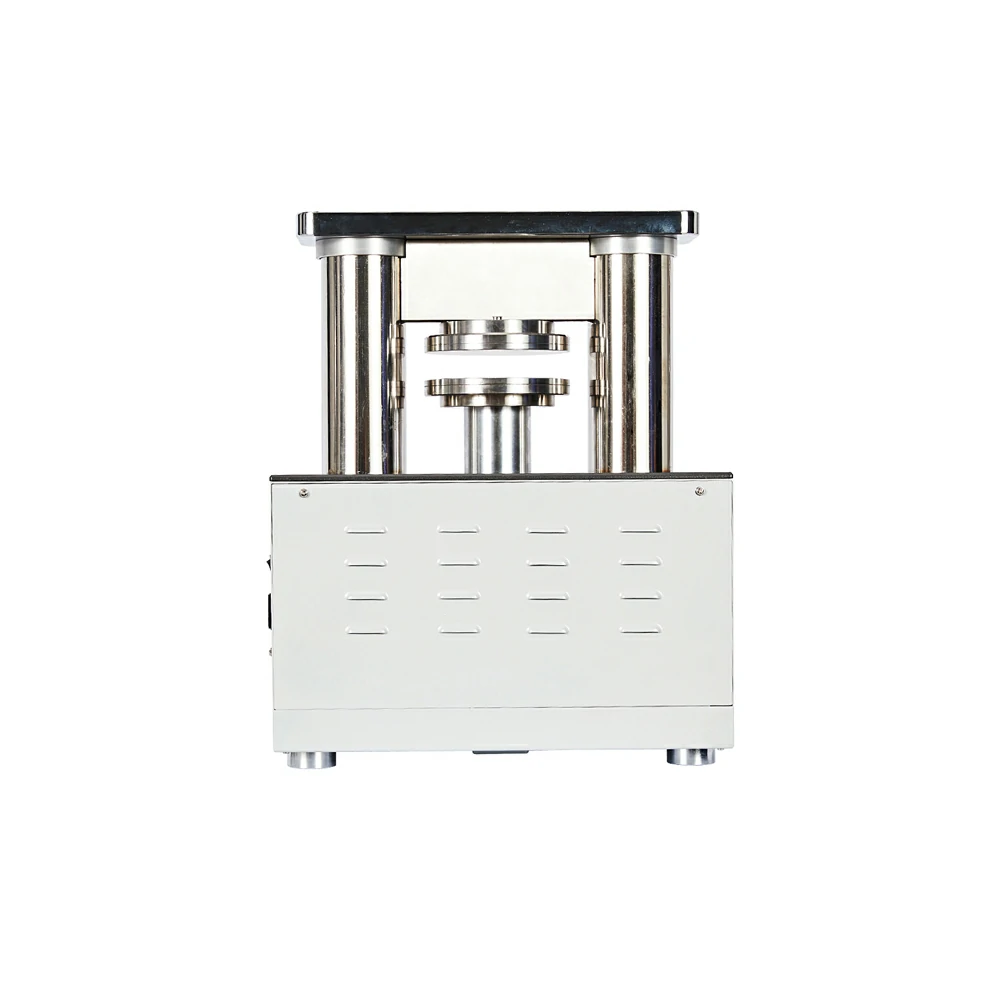

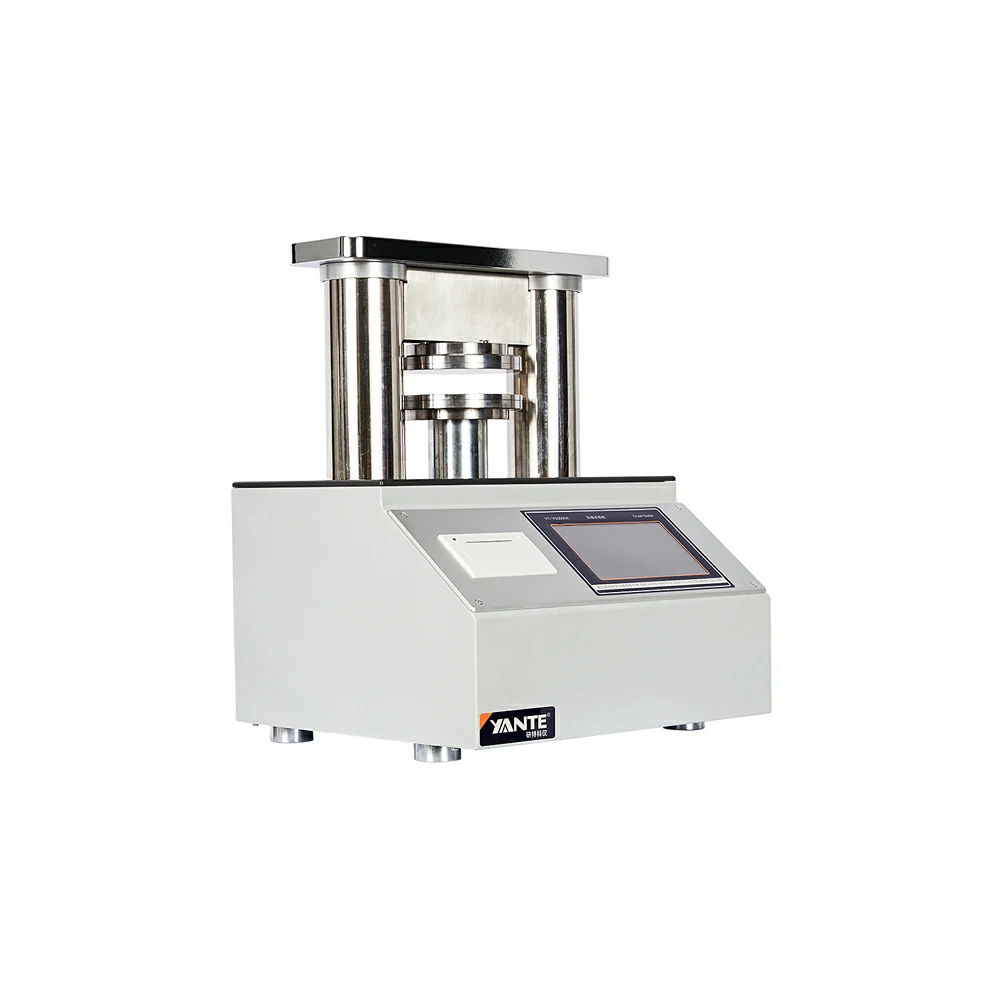

YT-YS3000A Crush Tester
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-YS3000A
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
Crush Tester is an ideal auxiliary test tool for papermaking companies, cardboard manufacturers, carton manufacturers, carton users, and quality supervision and inspection departments.
● Measure corrugated base paper ring crush strength（RCT）
● Measure corrugated cardboard edge crush strength（ECT）
● Measure corrugated cardboard flat crush strength（FCT）
● Measure corrugated cardboard pin adhesion（PAT）
● Measure corrugated base paper corrugating medium strength (CMT)
● Measure corrugated base paper corrugated crush strength (CCT)
● High-precision load cell, ball screw drive, dual guide shafts
● Cotex-M4 ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.
● Real-time display of the pressure change curve during the test.
● Over-range automatic reset to protect the precision sensor.
● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
● Test data can be exported to USB flash drive.
● The system and screen software can be upgraded through the network or USB flash drive.
● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.
● Test data can be uploaded to cloud server, and paper test data can be monitored in real time with QMS paper quality management system (purchased separately).
GBT 2679.8,GBT 6546, GBT 22874,GBT 6548, GBT_2679.6
ISO 12192,ISO 3037,ISO 3035,ISO 7263,ISO 16945
TAPPI T822,TAPPI T839,TAPPI T825,TAPPI T809,TAPPI-T843
No. | Accessory name | Model | Picture | Standard | Optional |
1 | RCT Sample Cutter | YT-H152 |
| √ | |
2 | RCT Central Panel | YT-SQ |
| √ | |
3 | ECT (PAT) Sample Cutter | YT-BY25 |
| √ | |
4 | FCT Sample Cutter | YT-PY65 |
| √ | |
5 | PAT Accessories | YT-NH23 |
| √ | |
6 | Concora Medium Fluter | YT-CMFA |
| √ |
No. | Parameter item | Technical index |
1 | Power Supply | AC 100～240V, 50Hz/60Hz 100W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen,1024 x 600 resolution |
4 | Measuring Range | (10～3000)N，customizable(0～5000)N |
5 | Indication error | ±0.5％(Range 5%～100%) |
6 | Resolution | 0.1N |
7 | Repeatability | ≤0.5％ |
8 | Test speed | (12.5±1)mm/min，(1～500) mm/min adjustable |
9 | Parallelism of upper and lower platens | ＜0.03mm |
10 | Maximum distance between upper and lower platens | 80mm |
11 | Data storage | 50 times test data |
12 | Data export | Export data to USB flash drive |
13 | Built-in thermal printer | |
14 | Communication Interface | USB, WIFI (2.4G) |
15 | Dimensions | 450×370×510 mm |
16 | Net weight | 58 kg |
