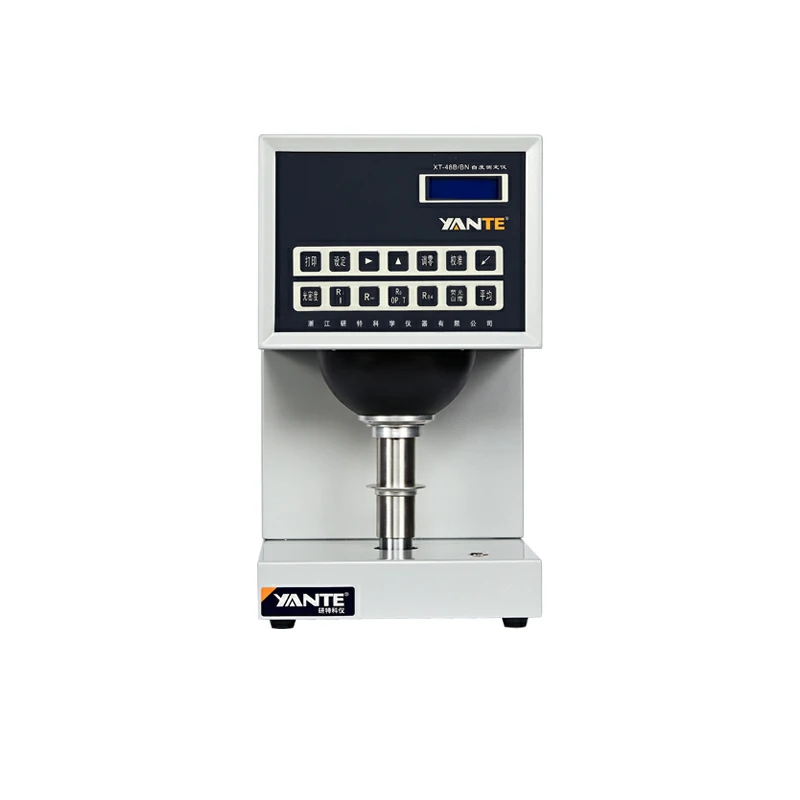

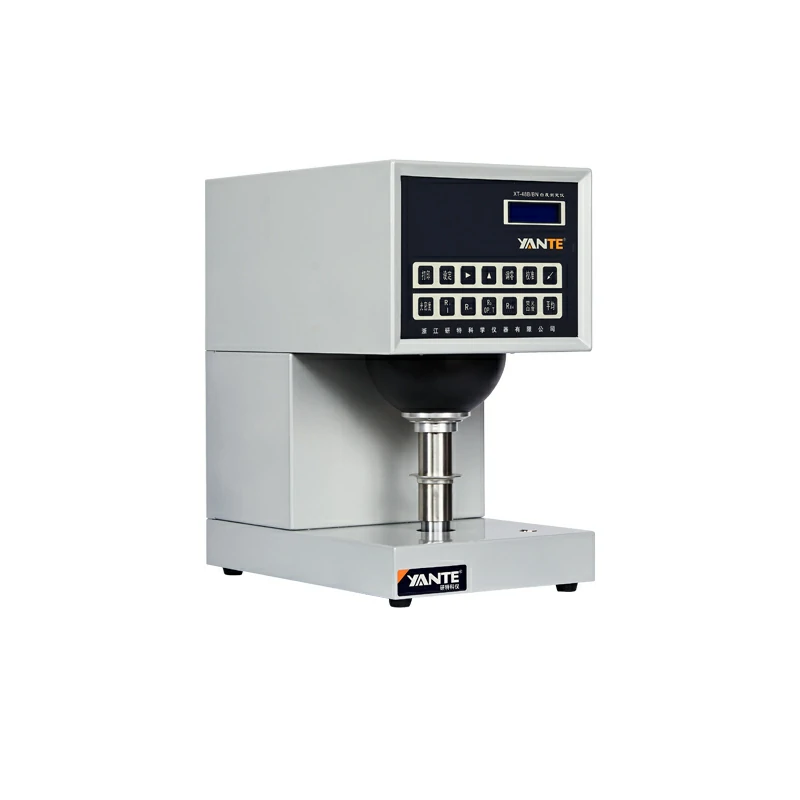

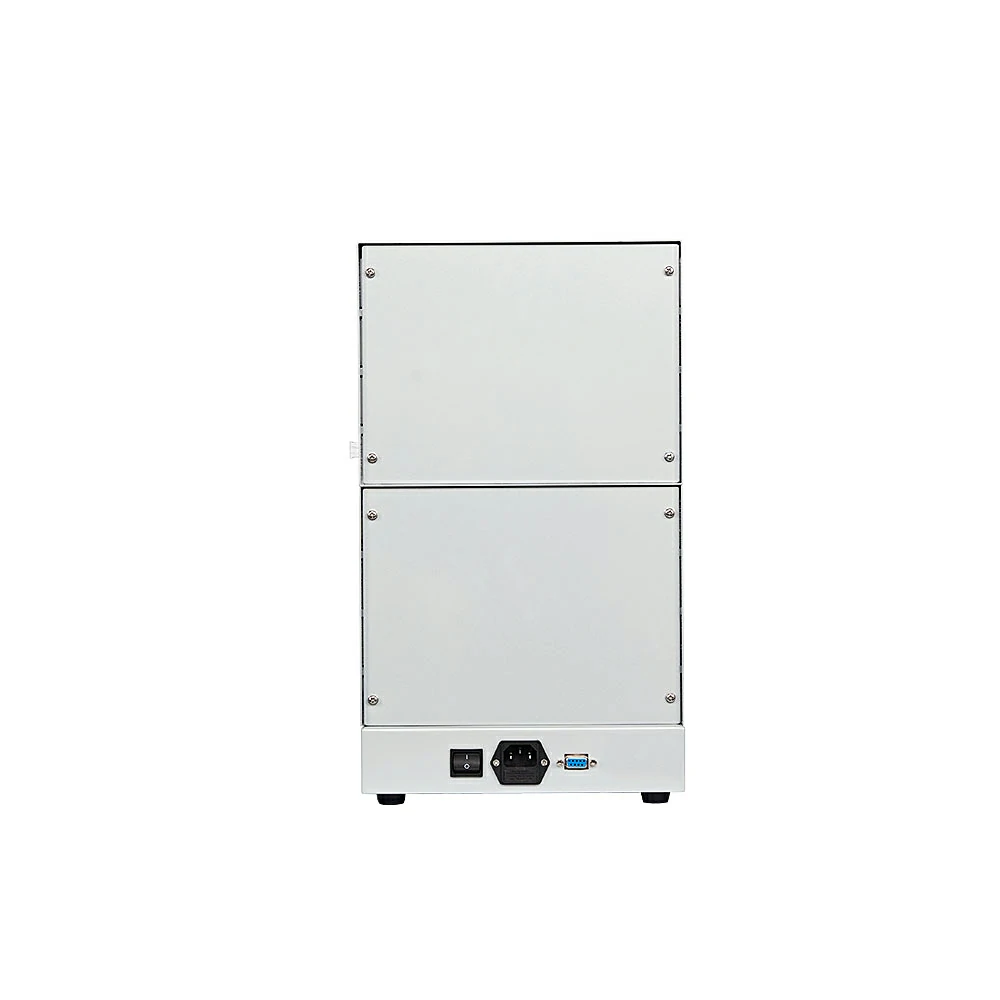

XT-48B Brightness Meter

  • Delivery:

    Send from factory in 3-7 work days after receive payment

  • Brand Name:

    YANTE

  • Model:

    XT-48B

  • Place of Origin:

    China

  • Payment:

    100% Advance T/T

  • Package:

    Wooden Box

Product Details

application range.jpg

Paper, cardboard, plastic, pulp, salt, industrial salt; Starch, calcium carbonate, talcum powder and other powders.


product function.jpg

●  Determination of D65 brightness (R457 blue light whiteness)

●  Determination of the fluorescence whiteness produced by the emission of a fluorescent substance (the specimen contains a fluorescent brightener)

●  Determination of opacity OP (customized), light scattering coefficient S, light absorption coefficient A, transparency (customized), ink absorption value

●  The luminance stimulus value Y10, the green light diffuse reflection factor Ry, was measured

●  Determination of optical density - lead core concentration (customized small caliber)



product features.jpg

●  The advanced circuit design effectively ensures the accuracy and stability of the measurement data

● With power-off protection function, calibration data will not be lost after power-off

● Standard RS232 interface, communication with microcomputer software (optional)


executive standard.jpg

GB/T 7973,GB/T 7974,GB/T 2679,GB/T 1543,GB/T 10339,GB/T 12911,GB/T 2913

GB/T 13025.2,GB/T 22427.6,ISO 2469,ISO 2470,ISO 2471,ISO 9416


supporting accessories and consumable.jpg

NO.

Name

Model


Standard

Optional

1

Flating Powder Holder

YT-QY

     Flating Powder Holder.png


2

Fiber Sample Holder


  Fiber Sample Holder.JPG



technical parameters.jpg

NO.

Parameter items

Technical Indicators

1

Power supply

AC(100~240)V,(50/60)Hz,50W

2

Working environment

Temperature: (10~35)°C, relative humidity≤ 85%

3

Display

128X32 dot matrix LCD screen

4

Light source

Simulates D65

5

Integrating spheres Diameter

150mm

6

Specimen size

The test plane ≥ φ30mm, and the thickness ≤ 40mm

7

Zero drift

≤0.1

8

Indication error

≤0.5

9

Repeatability error

≤0.1

10

Specular reflection error

≤0.1

11

Communication interface

RS232 (optional)

12

Dimensions

370×260×425 mm

13

Net weight

12kg
