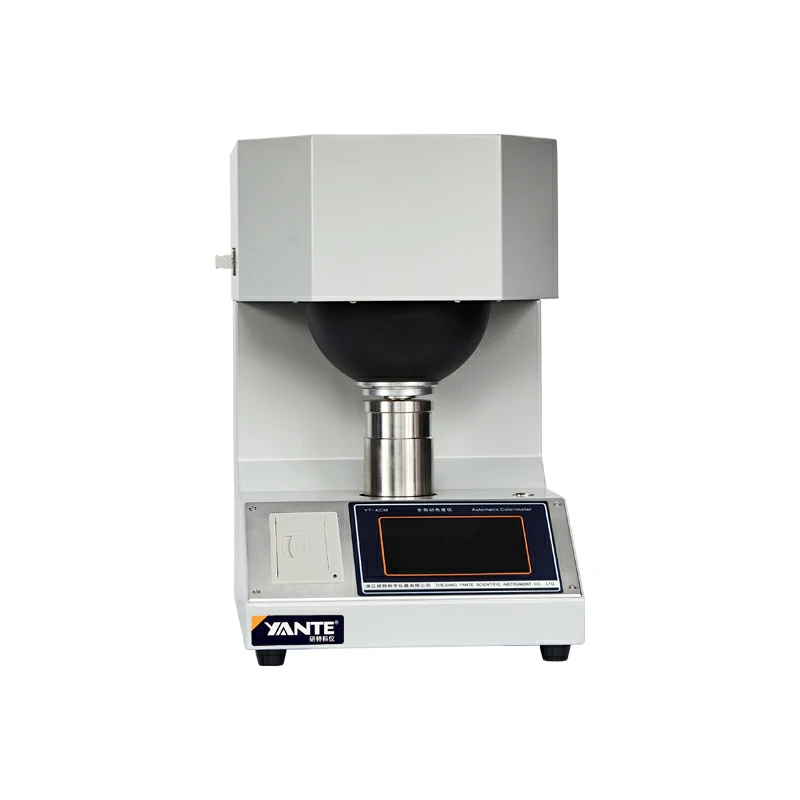

YT-ACM Automatic Colorimeter

  • Delivery:

    Send from factory in 3-7 work days after receive payment

  • Brand Name:

    YANTE

  • Model:

    YT-ACM

  • Place of Origin:

    China

  • Payment:

    100% Advance T/T

  • Package:

    Wooden Box

Product Details

application range.jpg

Paper, cardboard, pulp, ceramics; Cement, starch, calcium carbonate, talcum powder and other powders.


product function.jpg

●  Determines the color and chromatic aberration reflected by an object

●  Determination of D65 brightness (R457 blue whiteness)

●  Determination of fluorescent brightener produced by emission of fluorescent substance (sample containing fluorescent brightener)

●  Determination of CIE whiteness (Gantz whiteness W10 and skew value TW10)

●  Determine the whiteness of ceramics, building materials and non-metallic mineral products

●  Determine the whiteness of Hunt system Lab and Hunt Lab

●  Determination of yellowness, ink absorption value

●  Measure the opacity, transparency, light scattering coefficient and light absorption coefficient of the sample


product features.jpg

●  Advanced mechatronics design, truly realize the one-click test whiteness and chroma

●  The reference sample can be physical objects or data. The instrument can store up to ten reference samples

●  Can store 10 reference samples with power off protection, calibration data will not be lost after power off

●  Cotex-M4 ARM processor

●  Test data can be exported from USB flash drive

●  The system and screen software can be upgraded through the network or USB flash drive

●  Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication

●  Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time


executive standard.jpg

GB/T 7973、GB/T 7974、GB/T 7975、GB/T 8940.2、GB/T 1840、GB/T 13025、GB/T5950

GB/T 9338、GB/T 4739、GB/T 1543、GB/T 10339、GB/T 12911、ISO 2470、ISO 2471


supporting accessories and consumable.jpg

NO.

Name

Model


Standard

Optional

1

Flating Powder Holder

YT-QY

     Flating Powder Holder.png


2

Fiber Sample Holder


Fiber Sample Holder.JPG



technical parameters.jpg

NO.

Parameter items

Technical Indicators

1

Power supply

AC(100~240)V,(50/60)Hz,50W

2

Working environment

Temperature: (10~35)°C, relative humidity≤ 85%

3

Display

5-inch IPS high-definition screen, 800*480 resolution capacitive touch

4

Light source

Simulate D65

5

Integrating sphere diameter

150mm

6

Sample size

The test plane ≥ φ30mm, and the thickness ≤ 40mm

7

Resolution

The chrominance coordinates are 0.0001, and the rest are 0.01

8

Zero drift

≤0.1

9

Indication drift

≤0.1

10

Accuracy of the indication

Chrominance coordinates ≤0.01 R457≤0.5 Y≤1.0

11

Repeatability

R457≤0.1,  Chrominance coordinates≤0.001,Y≤0.1,△E≤0.2

12

Specular reflection

≤0.2

13

Print

Built-in thermal printer

14

Data export

Export data to USB flash drive

15

Communication interface

USB、WIFI(2.4G)

16

Dimensions

385×280×410 mm

17

Net weight

12.5kg
