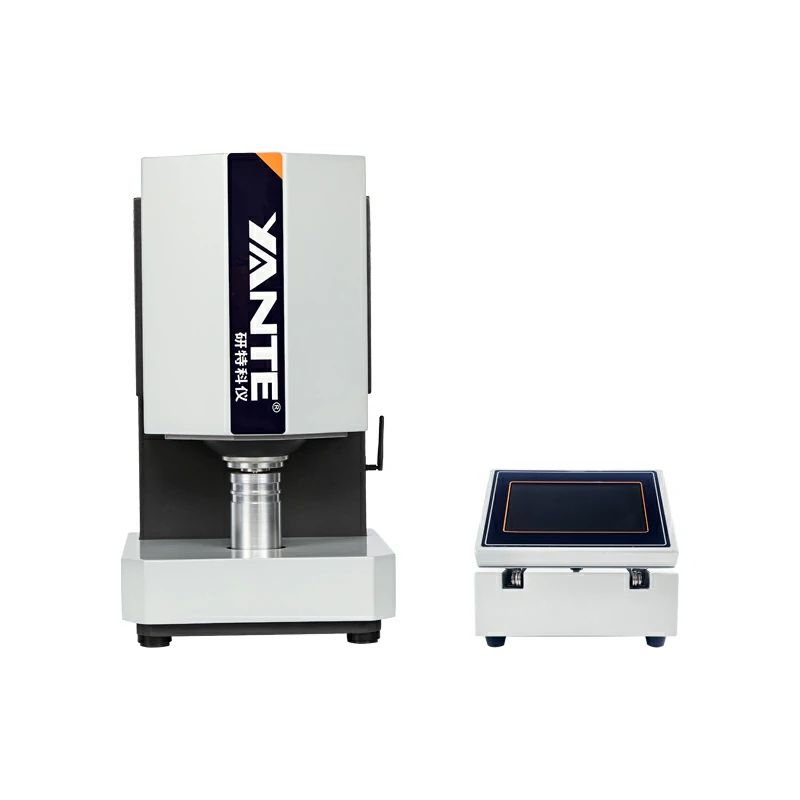

YT-CM3000 High Accurancy Color Analyzer(Spectrometer)

  • Delivery:

    Send from factory in 3-7 work days after receive payment

  • Brand Name:

    YANTE

  • Model:

    YT-CM3000

  • Place of Origin:

    China

  • Payment:

    100% Advance T/T

  • Package:

    Wooden Box

Product Details

application range.jpg

Papermaking, printing, textile printing and dyeing, ceramics, building materials, chemical, food, salt and other industries industries that need to determine the color and whiteness of solids in Production and commodity inspection department.


product function.jpg

● Measure the color and chromatic aberration of a solid under the conditions of C light source and D65 light source:

● Tristimulus values and chromaticity coordinates under CIE1931 standard color system;

● CIE1964 supplements the tristimulus values and chromaticity coordinates of the standard chromaticity system;

● L*, u*, v*, C*uv, Suv, huv, a*, b*, C*ab, hab and color difference of CIE1976 uniform color space.

● Measure CIE whiteness (Gantz visual whiteness) W10 and color cast value Tw10

● Measure the brightness of blue diffuse reflection factor D65 and the fluorescence brightness of fluorescent whitening materials.

● Measure the ISO brightness and the fluorescence brightness of fluorescent whitening materials under the condition of indoor light C/2°.

● Measure the whiteness and color of building materials, non-metallic mineral products, and ceramics.

● Measure the whiteness, Lab and color difference under the Hunter system.

● Measuring the whiteness and chroma of the fiber (matching Fiber Sample Holder).

● Measure the whiteness, chromaticity, Lab and color difference of the powder.

● Measure yellowness YI, opacity OP, light scattering coefficient S, light absorption coefficient A, transparency, ink absorption value.

● Measure the reflected optical density Dx, Dy, Dz.


 product features.jpg

● Imported concave flat field grating, photoelectric display sensor, pulse xenon lamp and other components are used to ensure the basis of equipment accuracy.

● The circuit adopts the ARM+FPGA dual-core scheme to ensure the calculation capability and the timing accuracy of sampling.

● The stepping motor controls the amount of ultraviolet radiation, automatically and accurately controls the amount of radiation, and the fluorescent brightness is tested by one button.

● The instrument is operated by complete PC-side software, and the number of tests data storage space is not limited;

● Convenient to check and print historical measurement data, the number of standard samples is not limited;

● Easy to upgrade when software functions need to be added

● Equipped with light absorber to eliminate specular reflection.


 executive standard.jpg

GB/T 7974-2013,GB/T 10339-2007,GB/T 7973-2003,GB/T 7975-2005,GB/T 3979-2008 ,GB/T 9338-2008,GB/T 2679.1-2013,GB/T 1543-2005,GB/T 10339-2007,GB/T 8940.2,GB/T 5950,ISO2470-1-2016,ISO 2470-2-2008,ISO 2471,ISO 2469


supporting accessories and consumable.jpg

NO.

Name

Model


Standard

Optional

1

Flating Powder Holder

YT-QY

     Flating Powder Holder.png


2

Fiber Sample Holder


Fiber Sample Holder.JPG



technical parameters.jpg

No.

Parameter item

Technical index

1

Power supply

AC100-220V (50/60)Hz  50W

2

Working Environment

Temperature(10~35)℃, Humidity≤ 85%

3

Geometric conditions

Double beam (d/0)

4

light source

Pulsed xenon lamp, D65 and C light source calibration

5

Measuring area/test aperture

Φ25mm/Φ30mm

6

Linearity error of photometer

 0.3%

7

Spectral bandwidth

 10nm

8

Receiver

128-cell photoelectric array

9

Wavelength range

 400-700nm

10

Measuring range

 0-200%

11

Measuring time (typical)

 4 - 20s

12

Repeatability

≤±0.05 CIELAB(ΔE*)

13

Reproducibility (difference between instruments)

≤±0.30 CIELAB(ΔE*)

14

Perspective

  2°,10°

15

Spectral data interval

  10nm

16

UV cut filter

395, 420nm

17

Communication Interface

USB2.0

18

Dimension

340×280×500 mm

19

Net Weight

18kg around
