Send from factory in 3-7 work days after receive payment
YANTE
YT-TDY10000
China
100% Advance T/T
Wooden Box
● ARM processor improves the response speed of the instrument, and the calculation data is accurate and fast.
● 7.5° and 15° stiffness test (arbitrary setting between (1～90)°).
● The test angle change is fully automatically controlled by the motor to improve the test efficiency.
● With automatic zeroing function, no need to manually align the sample before testing.
● Automatic reset, overload protection.
● Test data supports USB export.
● The system and screen software can be upgraded via the network or USB.
● Support multiple communication methods, online software (purchased separately) can communicate via WIFI or USB.
● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor paper product inspection data in real time.
GB/T 23144，GB/T 22364，ISO 5628，ISO 2493
No. | Accessory name | Model | Picture | Standard | Optional |

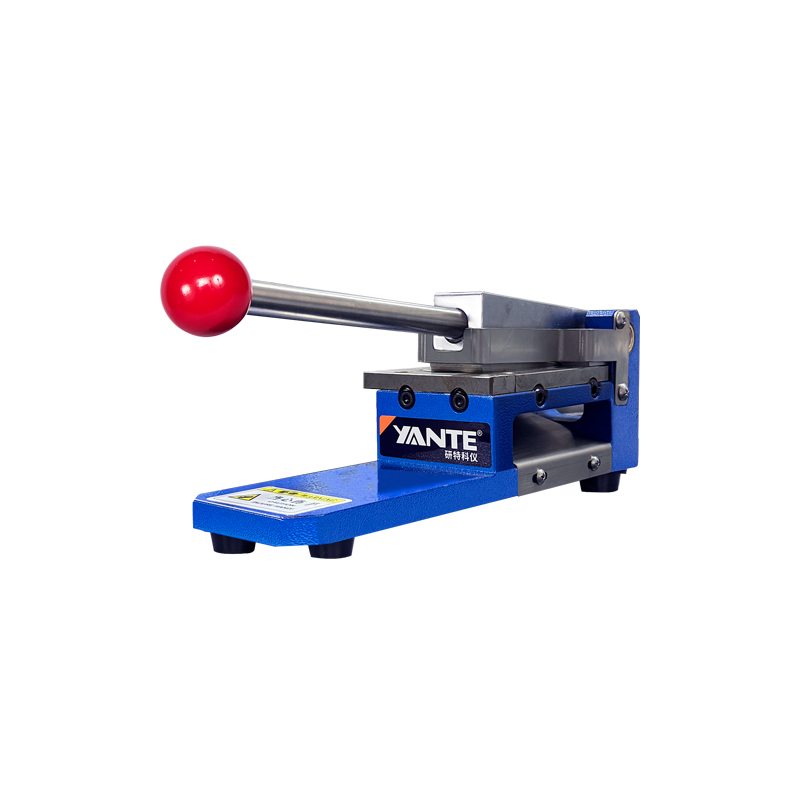

1 | Stiffness Sample Cutter | YT-TD23 | | √ |
No. | Parameter Item | Technical indicators |
1 | Power supply | AC(100～240)V，(50/60)Hz，50W |
2 | Working environment | Temperature (10～35)℃, relative humidity ≤ 85％ |
3 | Display | 5-inch IPS high-definition screen, 800*480 resolution capacitive touch |
4 | Measuring range | 15～10000 mN |
5 | Indication error | ±0.6mN below 50mN, ±1％ for the rest |
6 | Resolution | 0.1mN |
7 | Repeatability | ±1％(Range 5%～100%) |
8 | Bending length | 6 adjustable levels (50/25/20/15/10/5)±0.1mm |
9 | Bending angle | 7.5±0.3° or 15±0.3°（1～90°adjustable) |
10 | Bending speed | 5±0.1°/s(1~100°/s adjustable) |
11 | Data storage | 50 test data |
12 | Data export | Export data to USB flash drive |
13 | Built-in thermal printer | |
14 | Communication interface | USB、WIFI (2.4G) |
15 | Dimensions | 310×250×295 mm |
16 | Net weight | 12kg |
High Accurancy Color Analyzer is a precision instrument for measuring the whiteness, color and color difference of solids. It is widely used in papermaking, printing, textile printing and dyeing, ceramics, building materials, chemical, food, salt and other industries industries that need to determine the color and whiteness of solids in Production and commodity inspection department.
The Automatic Smoothness Tester is an intelligent paper and cardboard smoothness performance testing instrument developed based on the working principle of Bekk smoothness tester. It is an ideal testing equipment for papermaking, packaging, printing, commodity inspection, scientific research and other departments.
The friction coefficient tester is used to measure the static friction coefficient and dynamic friction coefficient of plastic films and sheets.
This instrument adopts a unique horizontal design. It is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries that need to determine the tensile strength of objects. And commodity inspection department.
