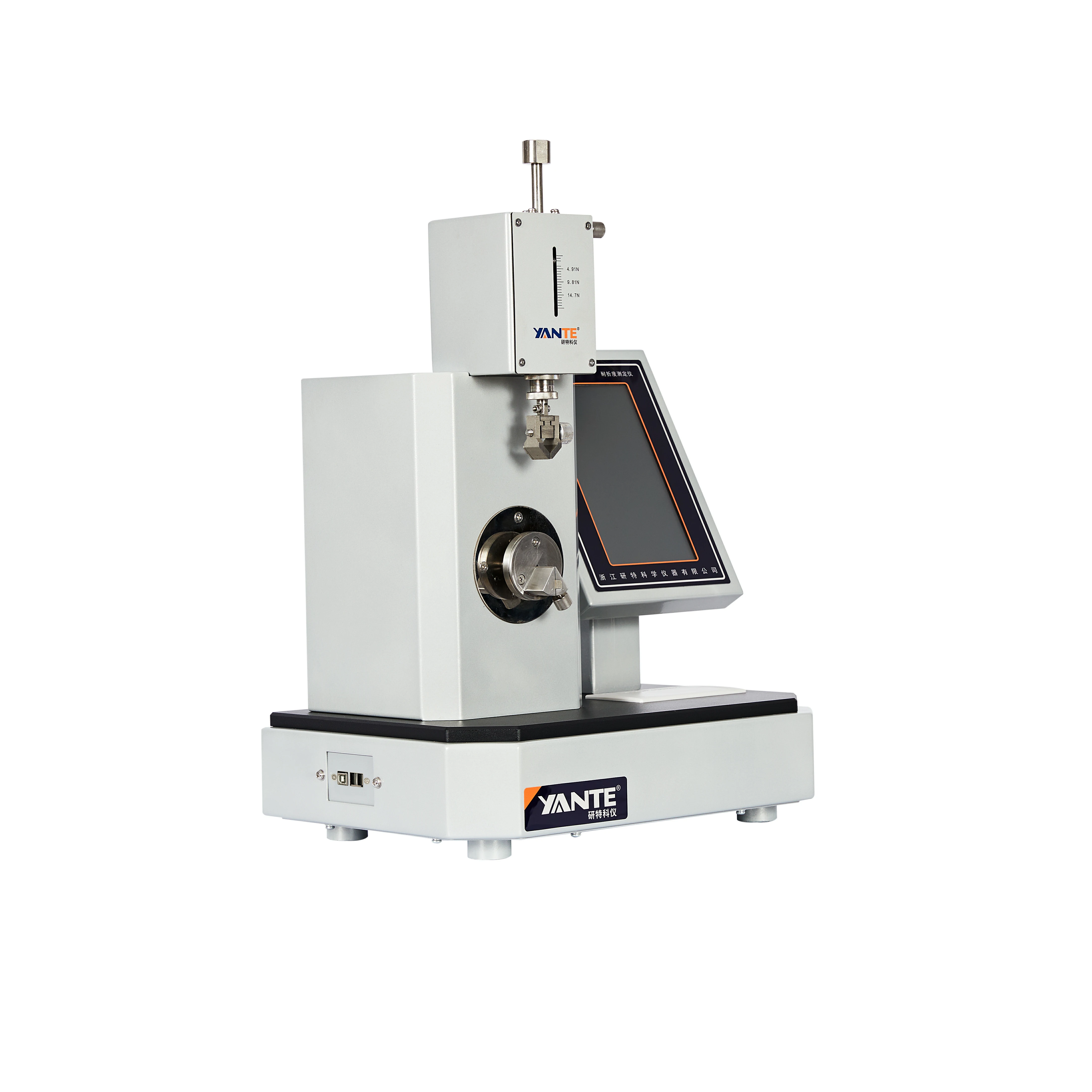

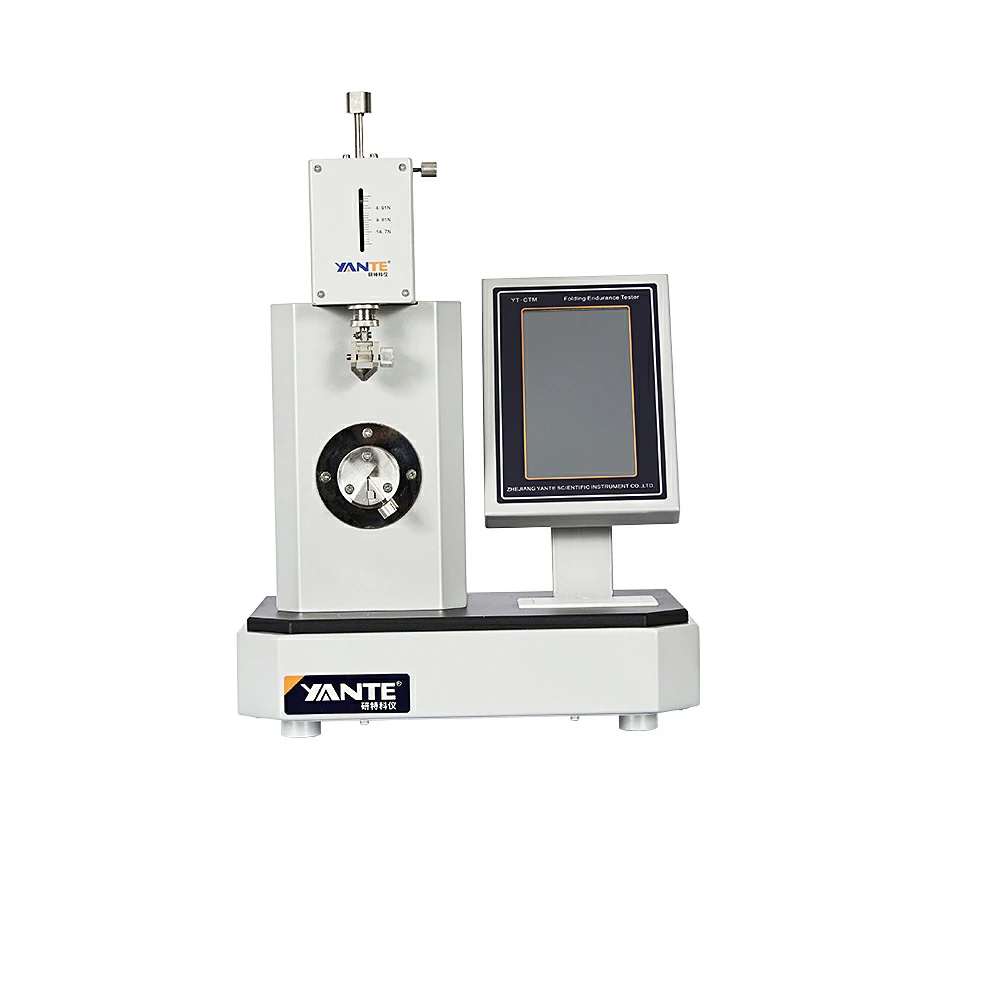

YT-CTM Folding Endurance Tester
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-CTM
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
0-1mm paper, cardboard,
0-1mm glass fiber, film, circuit board, copper foil, wire, etc
● High closed loop stepper motor, rotation Angle, folding speed accurate and stable.
● Cotex-M4 ARM processor, improve the response speed of the instrument, accurate and fast calculation data.
● Automatically measures, calculates and prints test results, and has the function of data saving.
● Test data can be exported from USB flash drive.
● The system and screen software can be upgraded through the network or USB flash drive.
● supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.
● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time.
GB/T 457，QB/T1049，ISO 5626，ISO 2493
No. | Accessory name | Model | Picture | Standard | Optional |
1 | Standard Distance Cutter | YT-Q15 | | √ | |
2 | Punch Standard Distance Cutter | YT-CQ15 |
| √ | |
3 | Adjustable Paper Cutter | YT-TJD300 |
| √ |
NO. | Parameter items | Technical Indicators |
1 | Power supply | AC(100～240)V，(50/60)Hz，100W |
2 | Working environment | Temperature: (10~35)°C, relative humidity≤ 85% |
3 | Display | 7 inch color touch screen,1024 x 600 resolution |
4 | Measuring range | 0-99999 times |
5 | Fold radius | 0.38±0.02 mm |
6 | Folding angle | 135±2° |
7 | Folding speed | 175±5 times/min |
8 | Spring tension | 4.91/9.81/14.72 N |
9 | Slot for folding head | （0.25/0.50/0.75/1.00）mm |
10 | Data storage | 50 test data |
11 | Data export | Export data to USB flash drive |
12 | Built-in thermal printer | |
13 | Communication interface | USB、WIFI（2.4G） |
14 | Dimensions | 360×255×500 mm |
15 | Net weight | 18kg |
