Send from factory in 3-7 work days after receive payment
YANTE
YT-ACM
China
100% Advance T/T
Wooden Box
Paper, cardboard,pulp, plastic;
Salt, cement, starch, calcium carbonate, talc and other powders;
Chemical fiber pulp, cotton, chemical fiber, textiles;
● Measure the color and chromatic aberration reflected by the object
● Measure D65 brightness (R457 blue light whiteness)
● Measure the degree of fluorescent whitening produced by the emission of fluorescent substances (the sample contains fluorescent whitening agent)
● Measure CIE whiteness (Gantz whiteness W10 and color cast value TW10)
● Measure the whiteness of ceramics, building materials and non-metallic mineral products
● Measure Hunter System Lab and Hunter (Lab) whiteness
● Measure yellowness, ink absorption value
● Measure the opacity, transparency, light scattering coefficient and light absorption coefficient of the sample
● Advanced mechatronics design, truly realize one-key testing of whiteness and chroma
● ARM processor improves the response speed of the instrument, and calculates data more accurately and quickly
● The reference sample can be either physical or data. The instrument can store and memorize up to ten reference sample information
● Can store ten reference samples as well as power-off protection, automatically save calibration data if power outage.
● Standard RS232 interface, with computer software for communication (Purchased separately)
GB/T 7973、GB/T 7974、GB/T 7975、GB/T 8940.2、GB/T 1840、GB/T 13025、GB/T5950
GB/T 9338、GB/T 4739、GB/T 1543、GB/T 10339、GB/T 12911、ISO 2470、ISO 2471
NO. | Name | Model | Picture | Standard | Optional |
1 | Flating Powder Holder | YT-QY | | √ | |
2 | Fiber Sample Holder |
| √ |
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz，50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 480X272 dot matrix 5 inch color touch screen |
4 | Light source | Analog D65 |
5 | Integrating sphere | Diameter 150mm |
6 | Sample Size | Test plate diameter ≥φ30mm while sample thickness≤40mm |
7 | Resolution ratio | Chromaticity Coordinate 0.0001,others 0.01 |
8 | Zero Drift | ≤0.1 |
9 | Indicating Drift | ≤0.1 |
10 | Indication accuracy | Chromaticity coordinates≤0.01,R457≤0.5Y≤1.0 |
11 | Repeatability | R457≤0.1, chromaticity coordinates≤0.001,Y≤0.1,△E≤0.2 |
12 | Specular Reflectance Accuracy | ≤0.2 |
13 | Built-in thermal printer | |
14 | Communication Interface | RS232（optional） |
15 | Dimension | 385×280×410 mm |
16 | Net Weight | 12.5kg |

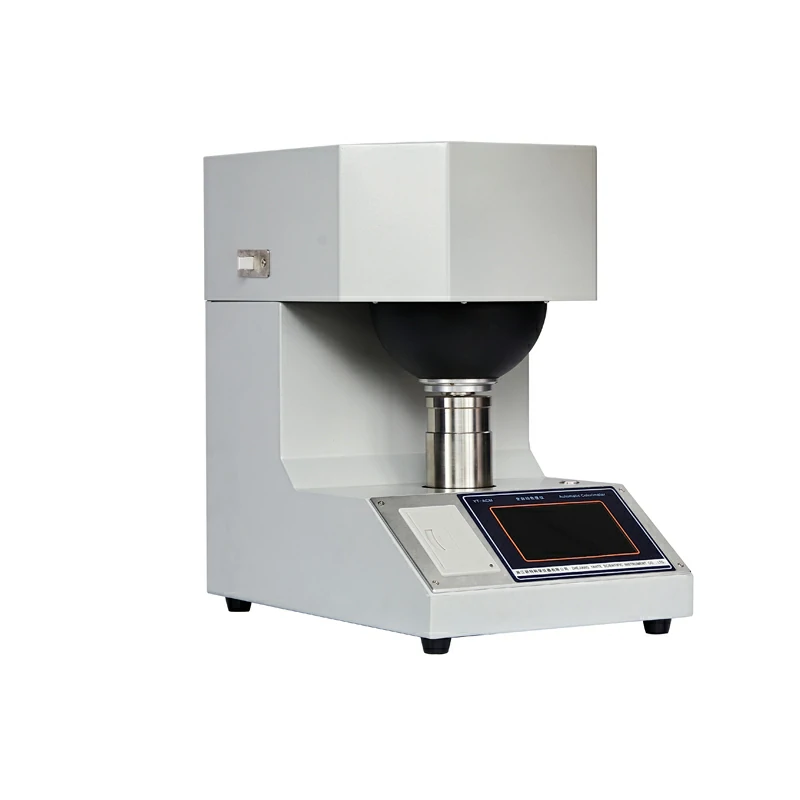

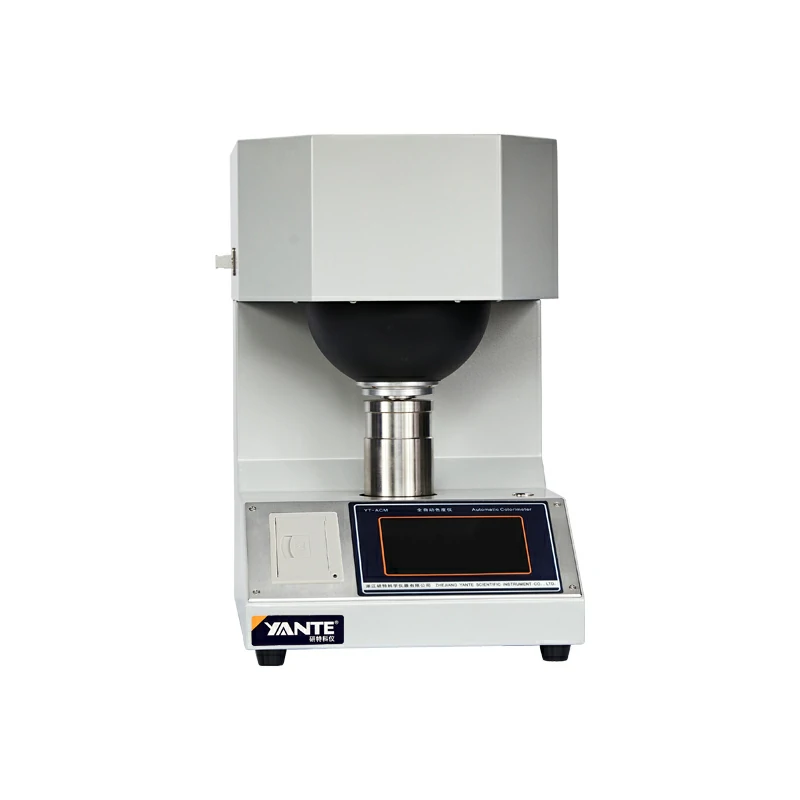

High Accurancy Color Analyzer is a precision instrument for measuring the whiteness, color and color difference of solids. It is widely used in papermaking, printing, textile printing and dyeing, ceramics, building materials, chemical, food, salt and other industries industries that need to determine the color and whiteness of solids in Production and commodity inspection department.
The Automatic Smoothness Tester is an intelligent paper and cardboard smoothness performance testing instrument developed based on the working principle of Bekk smoothness tester. It is an ideal testing equipment for papermaking, packaging, printing, commodity inspection, scientific research and other departments.
The Friction Coefficient Tester is used to measure the static and dynamic friction coefficients of plastic films and sheets. It can intuitively understand the smoothness and opening of the film, and display the distribution of the slip agent through a curve.
This instrument adopts a unique horizontal design. It is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries that need to determine the tensile strength of objects. And commodity inspection department.
