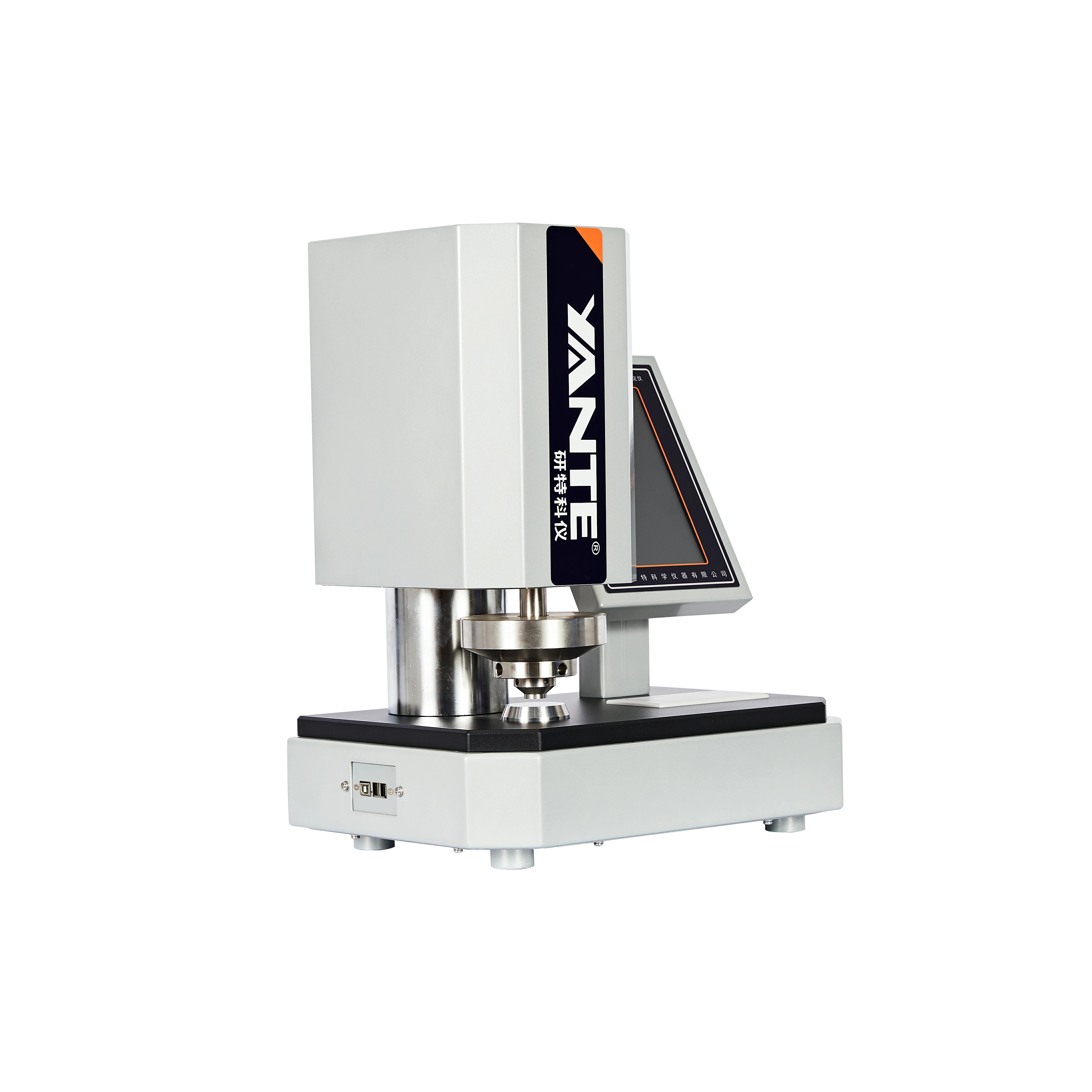

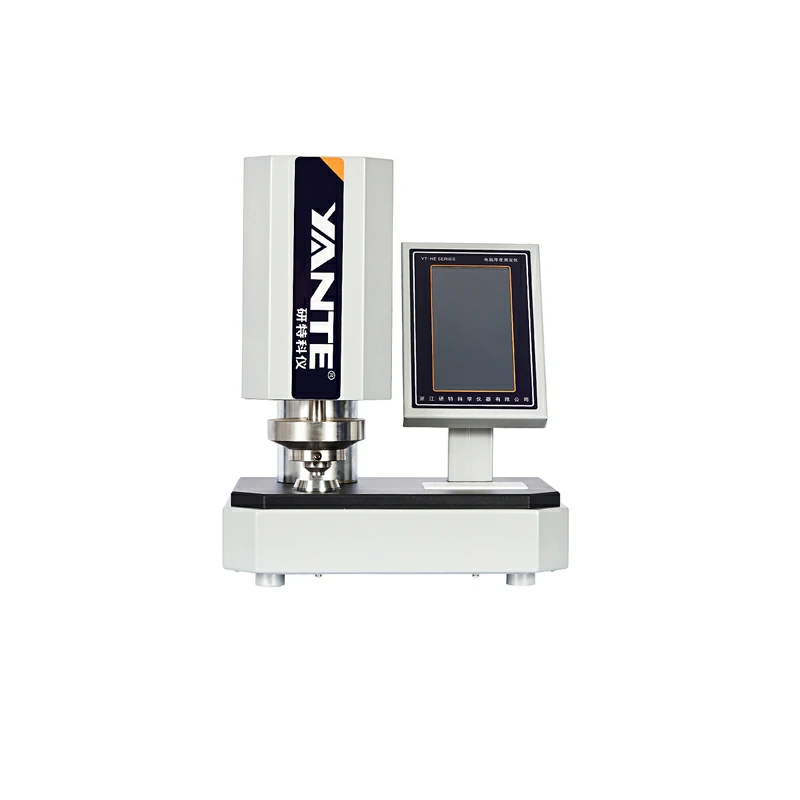

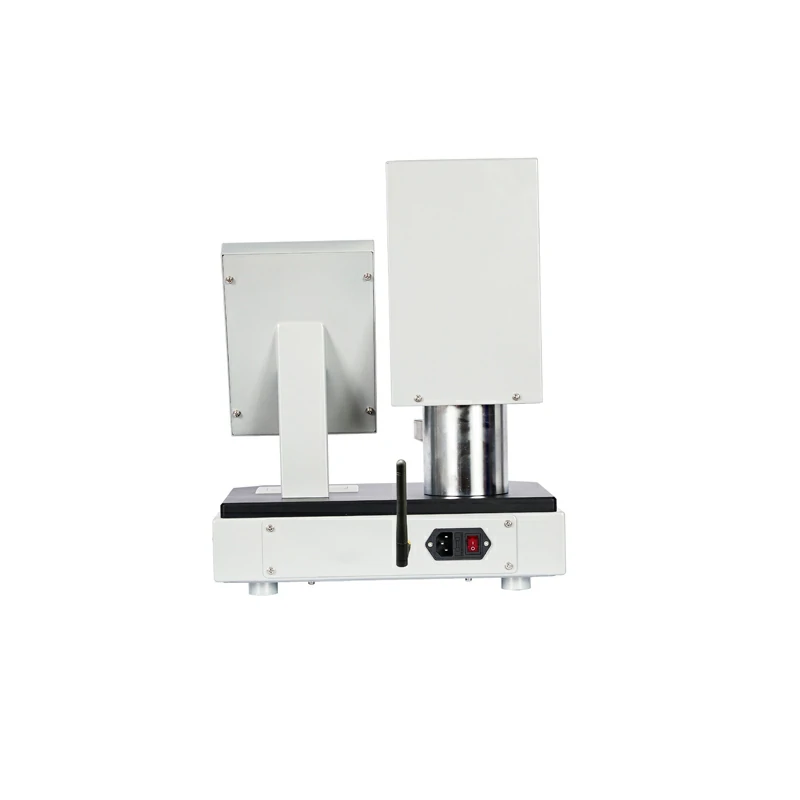

YT-H4E Paper Electronic Thickness Tester
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-H4E
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
Paper Electronic Thickness Tester is used to measure the thickness of paper and other sheet materials.
Various types of paper
● One-click test, easy to understand
● Cotex-M4 ARM processor improves the response speed of the instrument and makes calculations accurate and fast.
● The rising and falling speed of the probe is adjustable.
● Sudden power failure data saving function, the data before power failure is retained after restarting and the test can be continued.
● Automatically measure, count and print test results
● Test data can be exported to USB disk.
● Both the system and screen software can be upgraded via the network or USB flash drive.
● Support multiple communication methods, and the online software (purchased separately) can communicate via WIFI or USB.
● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor paper test data in real time.
GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz ,50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen,1024 x 600 resolution |
4 | Measuring range | (0 -5)mm |
5 | Resolution | 0.001mm |
6 | Indication error | ±0.0025mm or ±0.5％ |
7 | Repeatability | ≤0.0025mm or ≤0.5％ |
8 | Parallelism between measuring surfaces | ≤0.005mm |
9 | Contact area | (200±5) mm² |
10 | Contact pressure | (100±10)kPa |
11 | Probe descent speed | (0.5 ~ 10) mm/s adjustable |
12 | Data storage | 50 test data |
13 | Data export | Export data to USB flash drive |
14 | Built-in thermal printer | |
15 | Communication Interface | USB、WIFI（2.4G） |
16 | Dimensions | 360×290×450 mm |
17 | Net Weight | 27kg |
