Send from factory in 3-7 work days after receive payment
YANTE
YT-SLD1000
China
100% Advance T/T
Wooden Box

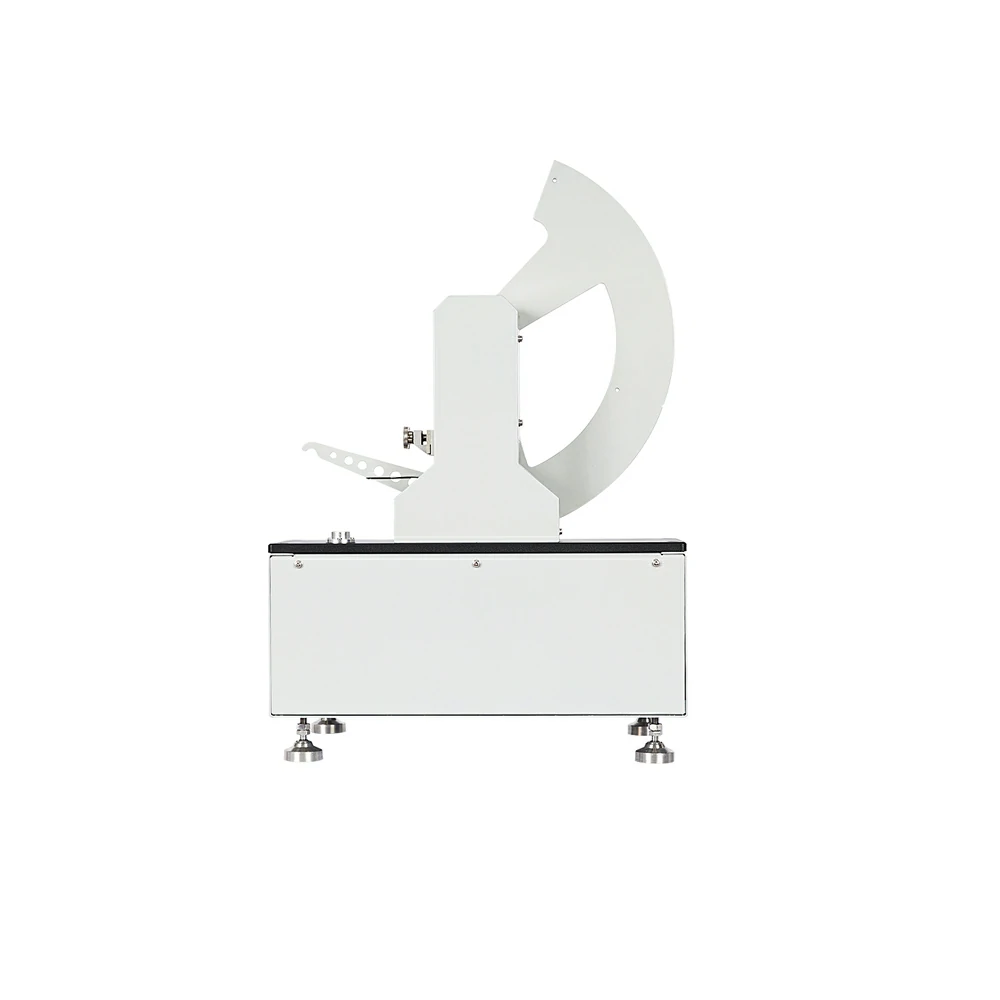

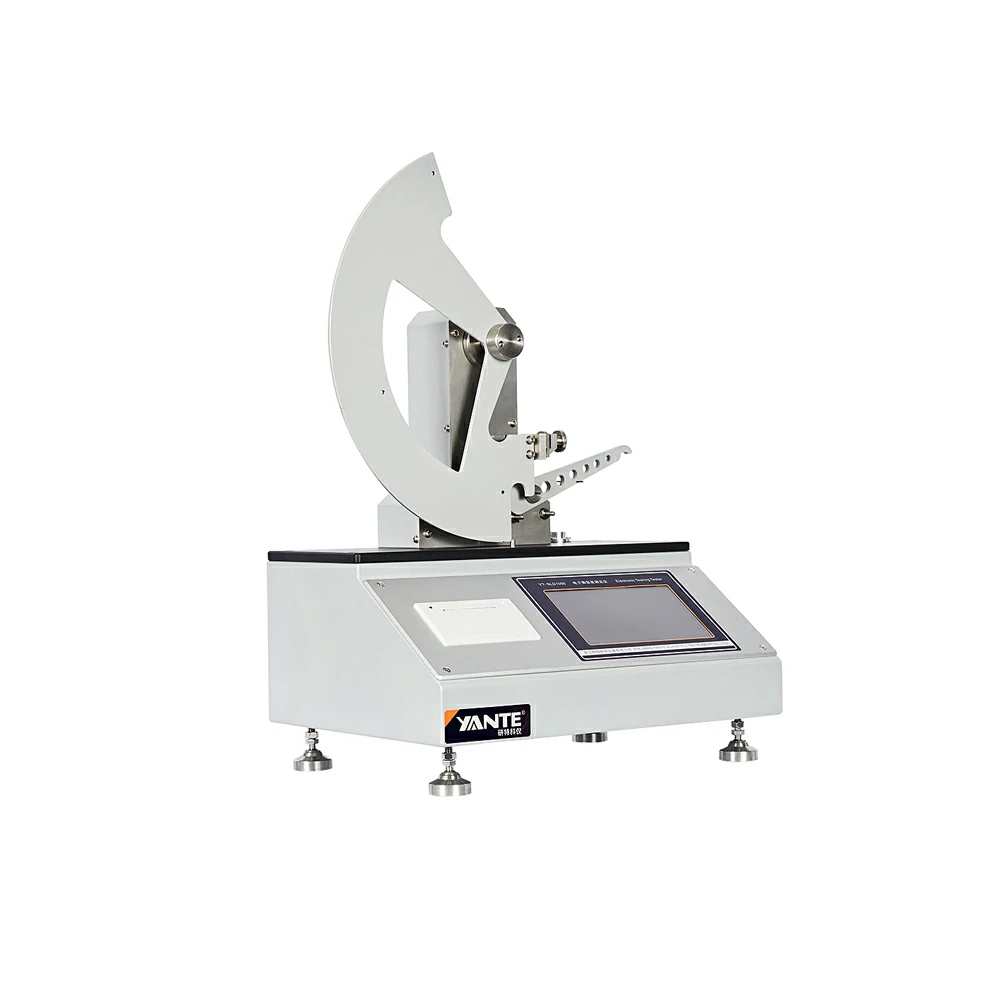

Electronic Tearing Tester is an intelligent testing instrument used to test the tearing properties of thin sheets such as paper and cardboard. It is widely used in colleges and universities, scientific research institutions, quality inspection departments, and paper printing and packaging production departments for testing paper materials.
Paper,paper jam,cardboard, cardboard, carton, color box, shoe box, paper tray, film, cloth, leather, etc.
● Automatic release of pendulum, high test efficiency.
● English operation, intuitive and convenient to use.
● Data saving function in case of sudden power failure, data before power failure is retained after booting up and test can be continued.
● Test data supports USB export.
● Both the system and screen software support upgrade via network or USB flash drive.
● Support multiple communication methods, online software (purchased separately) can communicate via WIFI or USB.
● Test data supports uploading to cloud server, cooperate with QMS paper quality management system (purchased separately), real-time monitoring of paper product inspection data.
GB/T 455，QB/T 1050，ISO 1974，JIS P8116，TAPPI T414
No. | Accessory name | Model | Picture | Standard | Optional |
1 | Adjustable Paper Cutter | YT-TJD300 |
| √ |
No. | Parameter Item | Technical indicators |
1 | Power supply | AC(100～240)V, 50Hz/60Hz，50W |
2 | Working environment | Temperature(10～35)℃, relative humidity ≤ 85% |
3 | Display | 7-inch IPS high-definition screen, 1024*600 resolution capacitive touch |
4 | Measuring range | A gear:(50～8000mN)，B gear:(8000～16000mN) |
5 | Resolution | 0.1mN |
6 | Indication error | ±1％ |
7 | Repeatability | ≤1％ |
8 | Tear force arm | (104±1)mm |
9 | Tear initial angle clamp | 27.5°±0.5° |
10 | Distance between paper clamps | (2.8±0.3)mm |
11 | Specimen cut length | (20±0.5)mm |
12 | Data storage | 50 test data |
13 | Data export | Export data to USB flash drive |
14 | Built-in thermal printer | |
15 | Communication interface | USB、WIFI（2.4G） |
16 | Dimensions | 415×310×600 mm |
17 | Net weight | 19.5kg |
Bending Stiffness Tester is a multi-functional intelligent computerized stiffness tester, which calculates the test results intelligently and is widely used in papermaking enterprises, packaging manufacturers, quality inspection agencies and other units.
Bursting Tester for Corrugated is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the bursting strength of paperboard. It is easy to operate, reliable in performance, and advanced in technology. It is an indispensable ideal equipment for scientific research units, paper manufacturers, packaging industry, and quality inspection departments.
This instrument is a corrugated cardboard bending stiffness testing instrument designed and developed by our company according to the four-point loading method, which is suitable for all kinds of corrugated cardboard and cardboard.
Crush Tester is an ideal auxiliary test tool for papermaking companies, cardboard manufacturers, carton manufacturers, carton users, and quality supervision and inspection departments.
