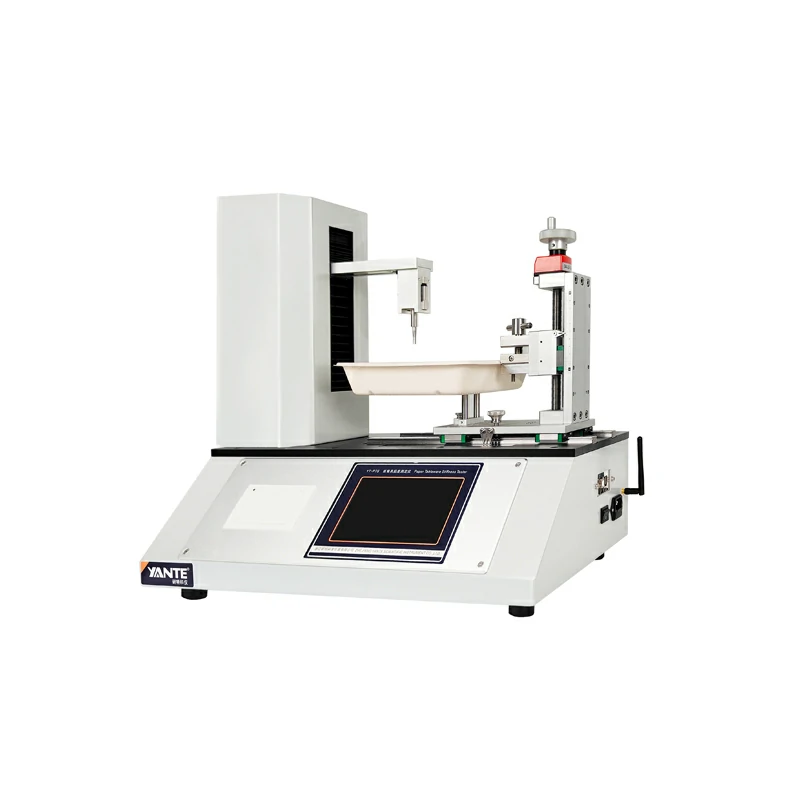

YT-PTS Paper Tableware Stiffness Tester
YT-PTS paper tableware stiffness tester is a specialized device for testing the mechanical properties of paper tableware.
Product Center
Home > Product Center > Corrugated Cardboard and Box Testing Equipment > Details
Product Center
Χ️
YT-4BST 4-Point Bending Stiffness Tester
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-4BST
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
This instrument is a corrugated cardboard bending stiffness testing instrument designed and developed by our company according to the four-point loading method, which is suitable for all kinds of corrugated cardboard and cardboard. The higher bending stiffness makes the cardboard have a certain degree of rigidity and strength, and improves the ability of the carton to resist bulging, so as to improve the degree of protection of the contents.
● Closed-loop servo stepping motor, ball screw and three guide shafts provide stable and accurate transmission.
● Using stepping motor, low noise and precise control.
● A 10-inch color LCD touch screen is used to display the stretching curve in real time.
● Cotex-M4 ARM processor and 24-bit analog-to-digital converter improve the response speed of the instrument and ensure the real-time performance of the measurement.
● Added a data saving function for sudden power failure, the data before the power failure is retained after the power is turned on and the test can be continued.
● Features of automatic reset, data memory, overload protection and fault self-diagnosis.
● Test data can be exported to USB flash drive.
● The system and screen software can be upgraded through the network or USB flash drive.
● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.
● Test data can be uploaded to cloud server, and paper test data can be monitored in real time with QMS paper quality management system (purchased separately).
GB/T 23144、ISO5628
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 100W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 10 inch color touch screen |
4 | Deflection measurement error | ±10um |
5 | Measuring range | (1～500)N |
6 | Resolution | 0.01N |
7 | Indication error | ±0.5%(Range 5%～100%) |
8 | Sample width | Single corrugated and double corrugated 100mm, triple corrugated 50mm |
9 | Up fixture fulcrum spacing | 170~670mm |
10 | Down fixture fulcrum spacing | 170~290mm |
11 | Test stroke | 300mm |
12 | Test speed | (1～500)mm/min(Can be adjusted arbitrarily) |
13 | Data storage | 50 times test data |
14 | Data export | Export data to USB flash drive |
15 | Built-in thermal printer | |
16 | Communication Interface | USB、WIFI（2.4G） |
17 | Dimensions | 700×495×930 mm |
18 | Net Weight | 80kg |
