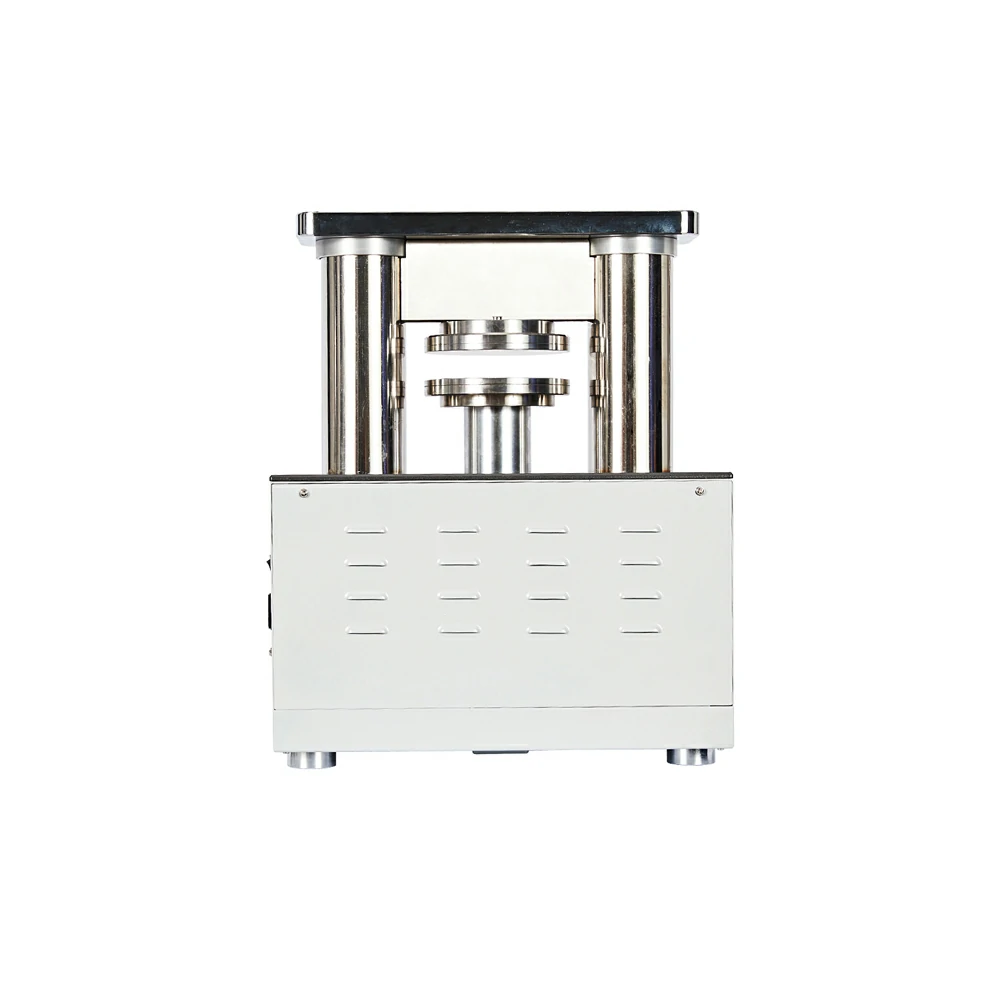

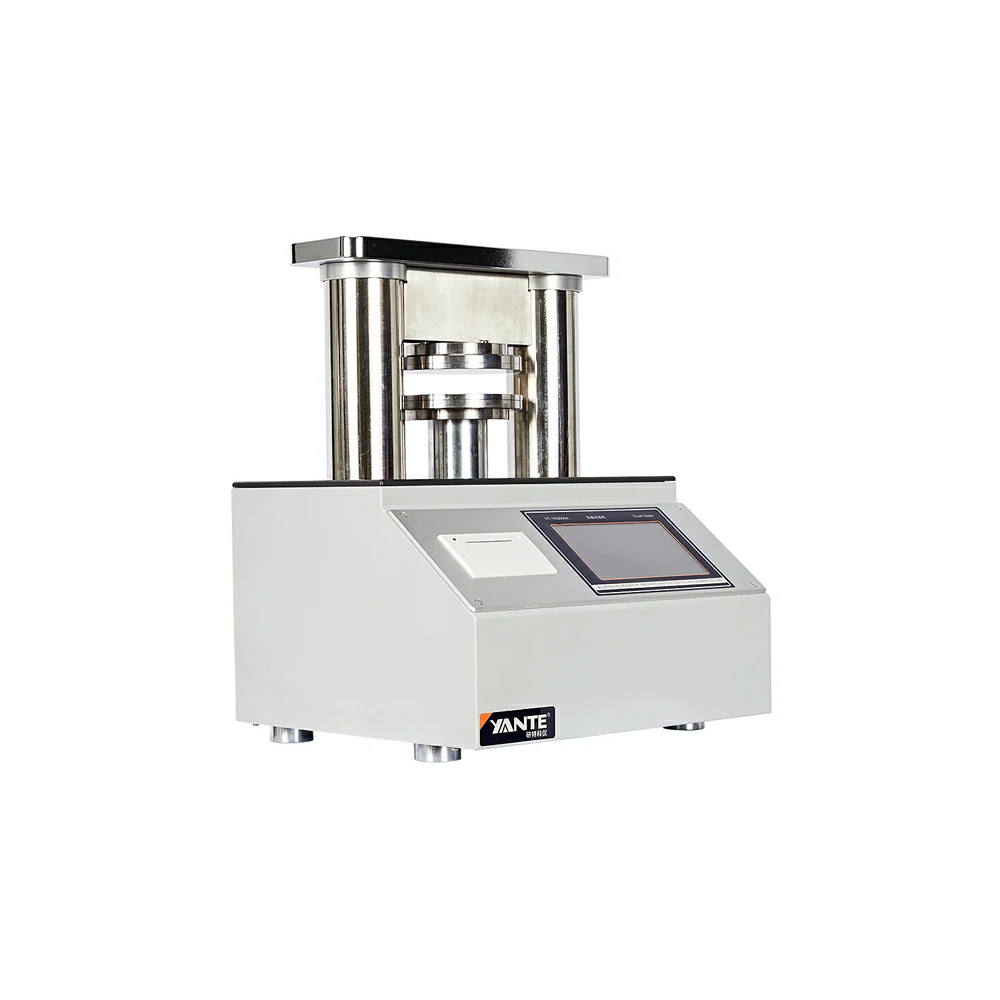

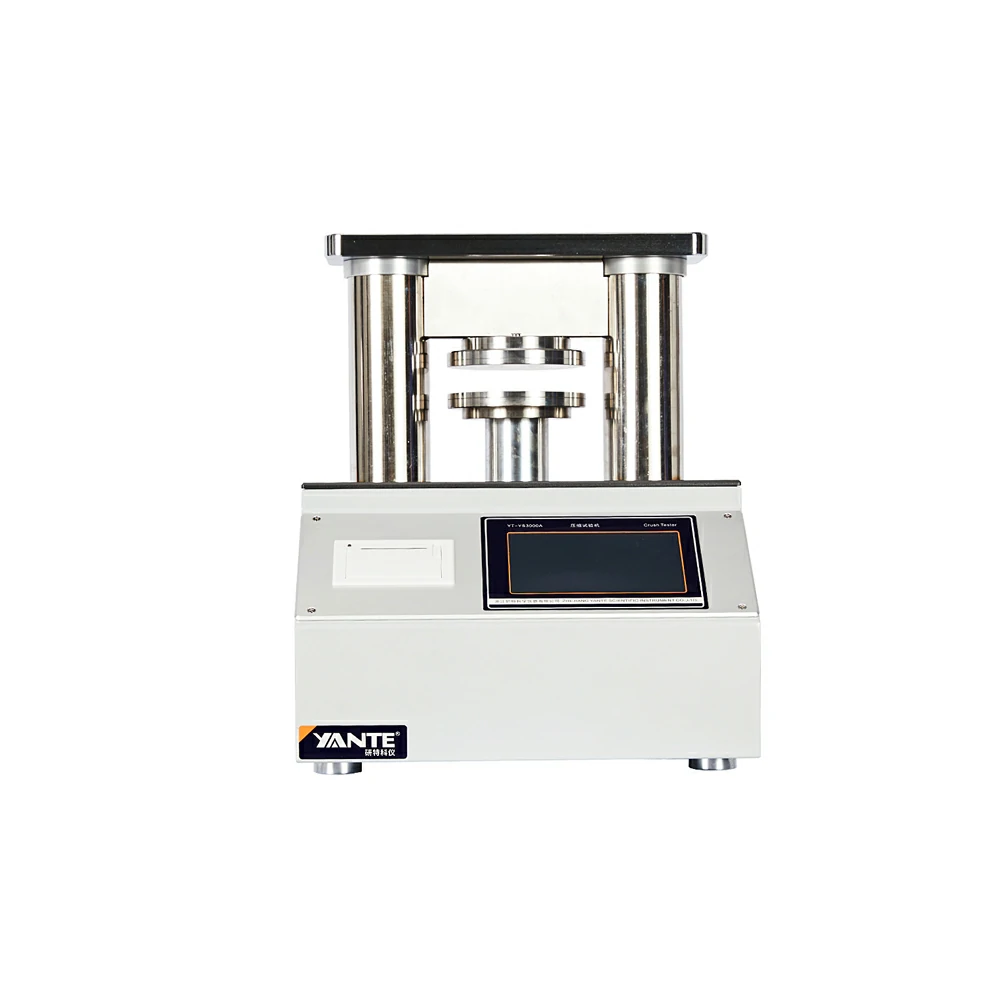

YT-YS3000A Crush Tester

product function.jpg

● Measure corrugated base paper ring crush strength（RCT）

● Measure corrugated cardboard edge crush strength（ECT）

● Measure corrugated cardboard flat crush strength（FCT）

● Measure corrugated cardboard pin adhesion（PAT）

● Measure corrugated base paper corrugating medium strength (CMT)

● Measure corrugated base paper corrugated crush strength (CCT)

product features.jpg

● High-precision load cell, ball screw drive, dual guide shafts

● ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.

● Real-time display of the pressure change curve during the test.

● Over-range automatic reset to protect the precision sensor.

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Cooperate with computer software for communication (purchased separately).

executive standard.jpg

GBT 2679.8,GBT 6546, GBT 22874,GBT 6548, GBT_2679.6

ISO 12192,ISO 3037,ISO 3035,ISO 7263,ISO 16945

TAPPI T822,TAPPI T839,TAPPI T825,TAPPI T809,TAPPI-T843

supporting accessories and consumable.jpg

technical parameters.jpg

No.	Parameter item	Technical index
1	Power Supply	AC 100～240V, 50Hz/60Hz 100W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Display	7 inch color touch screen
4	Measuring Range	（10～3000）N，customizable（10～5000）N
5	Indication error	±0.5％(Range 5%～100%)
6	Indication resolution	0.1N
7	Indication variability	≤0.5％
8	Test speed	(12.5±1)mm/min，(1～500) mm/min adjustable
9	Parallelism of upper and lower platens	＜0.02mm
10	Maximum distance between upper and lower platens	80mm
11	Print	Built-in thermal printer
12	Communication Interface	RS232 (default) (USB, WIFI optional)
13	Dimension	415×370×510 mm
14	Net weight	58 kg around
