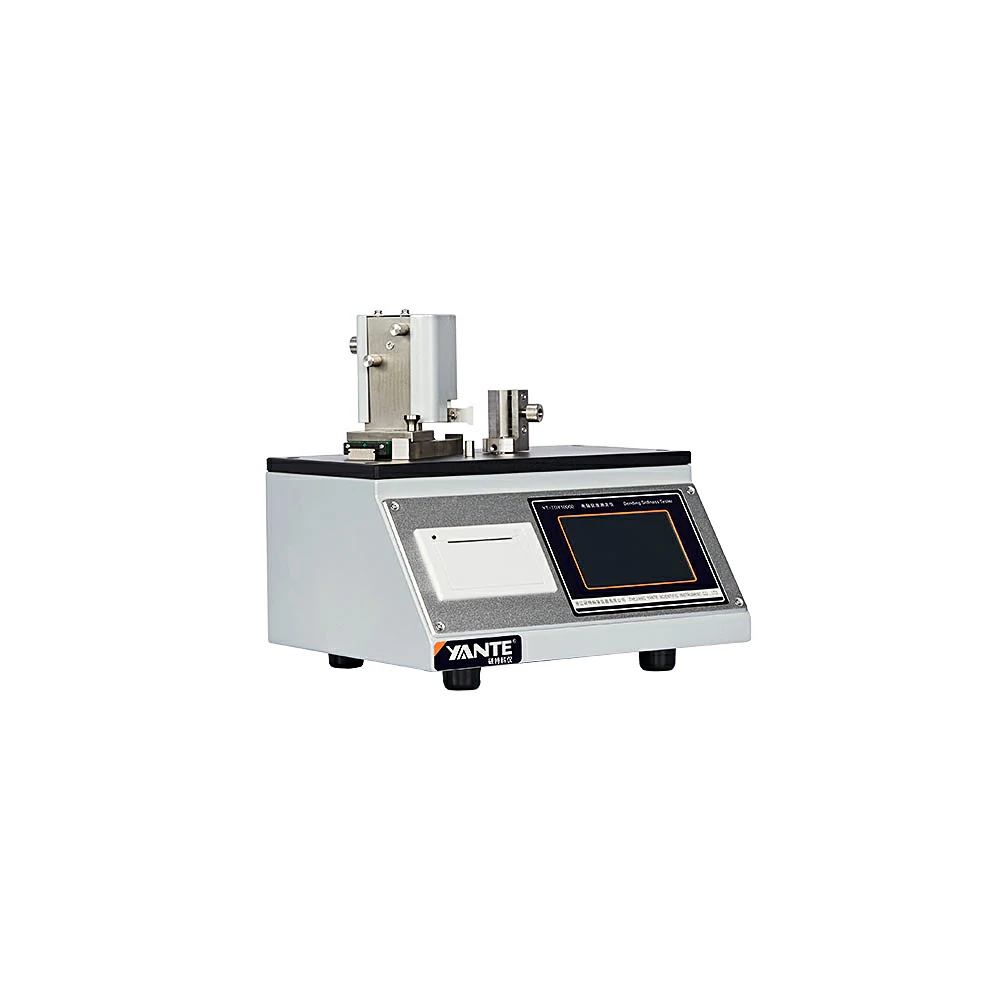

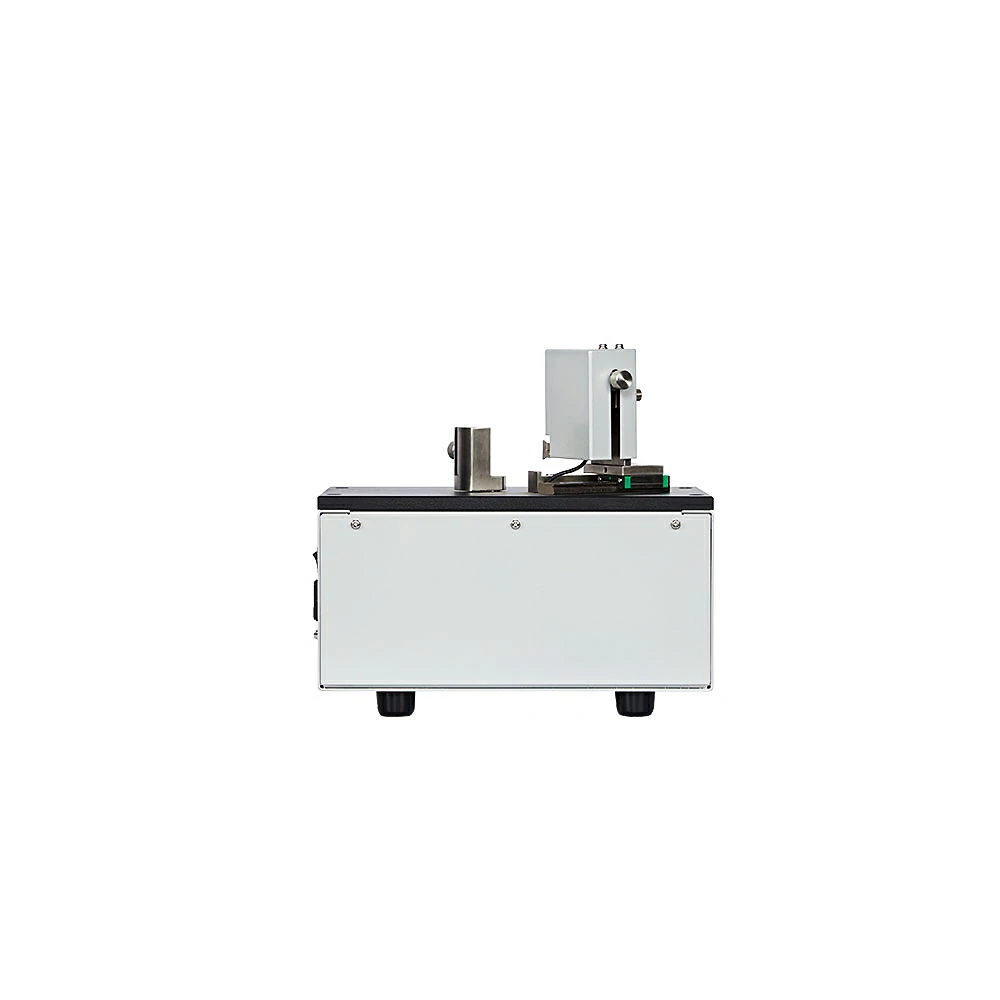

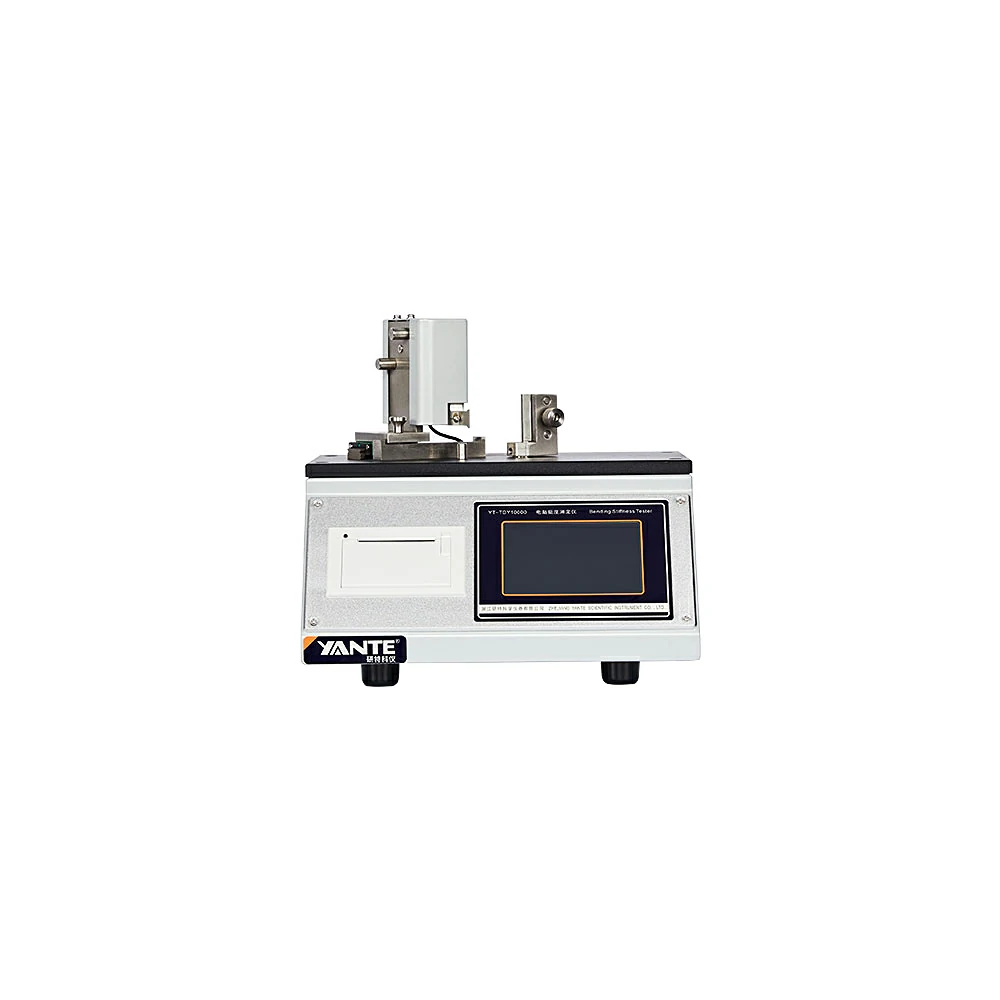

YT-TDY10000 Bending Stiffness Tester
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-TDY10000
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
● ARM processor improves the response speed of the instrument, and the calculation data is accurate and fast.
● 7.5° and 15° stiffness test (arbitrary setting between (1～90)°).
● The test angle change is fully automatically controlled by the motor to improve the test efficiency.
● With automatic zeroing function, no need to manually align the sample before testing.
● Automatic reset, overload protection.
● Test data supports USB export.
● The system and screen software can be upgraded via the network or USB.
● Support multiple communication methods, online software (purchased separately) can communicate via WIFI or USB.
● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor paper product inspection data in real time.
GB/T 23144，GB/T 22364，ISO 5628，ISO 2493
No. | Accessory name | Model | Picture | Standard | Optional |
1 | Stiffness Sample Cutter | YT-TD23 |
| √ |
No. | Parameter Item | Technical indicators |
1 | Power supply | AC(100～240)V，(50/60)Hz，50W |
2 | Working environment | Temperature (10～35)℃, relative humidity ≤ 85％ |
3 | Display | 5-inch IPS high-definition screen, 800*480 resolution capacitive touch |
4 | Measuring range | 15～10000 mN |
5 | Indication error | ±0.6mN below 50mN, ±1％ for the rest |
6 | Resolution | 0.1mN |
7 | Repeatability | ±1％(Range 5%～100%) |
8 | Bending length | 6 adjustable levels (50/25/20/15/10/5)±0.1mm |
9 | Bending angle | 7.5±0.3° or 15±0.3°（1～90°adjustable) |
10 | Bending speed | 5±0.1°/s(1~100°/s adjustable) |
11 | Data storage | 50 test data |
12 | Data export | Export data to USB flash drive |
13 | Built-in thermal printer | |
14 | Communication interface | USB、WIFI (2.4G) |
15 | Dimensions | 350×345×295 mm |
16 | Net weight | 9.3kg |
