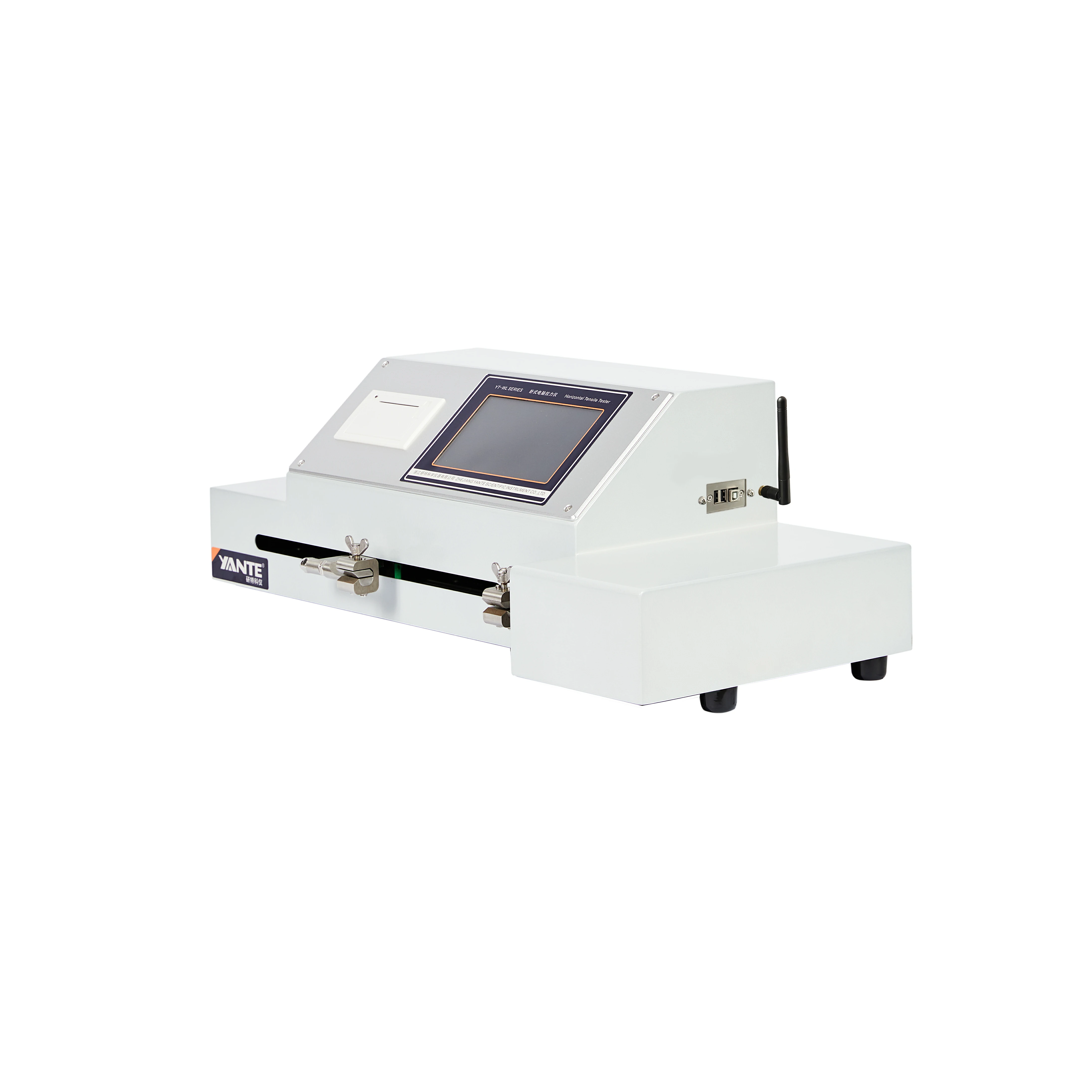

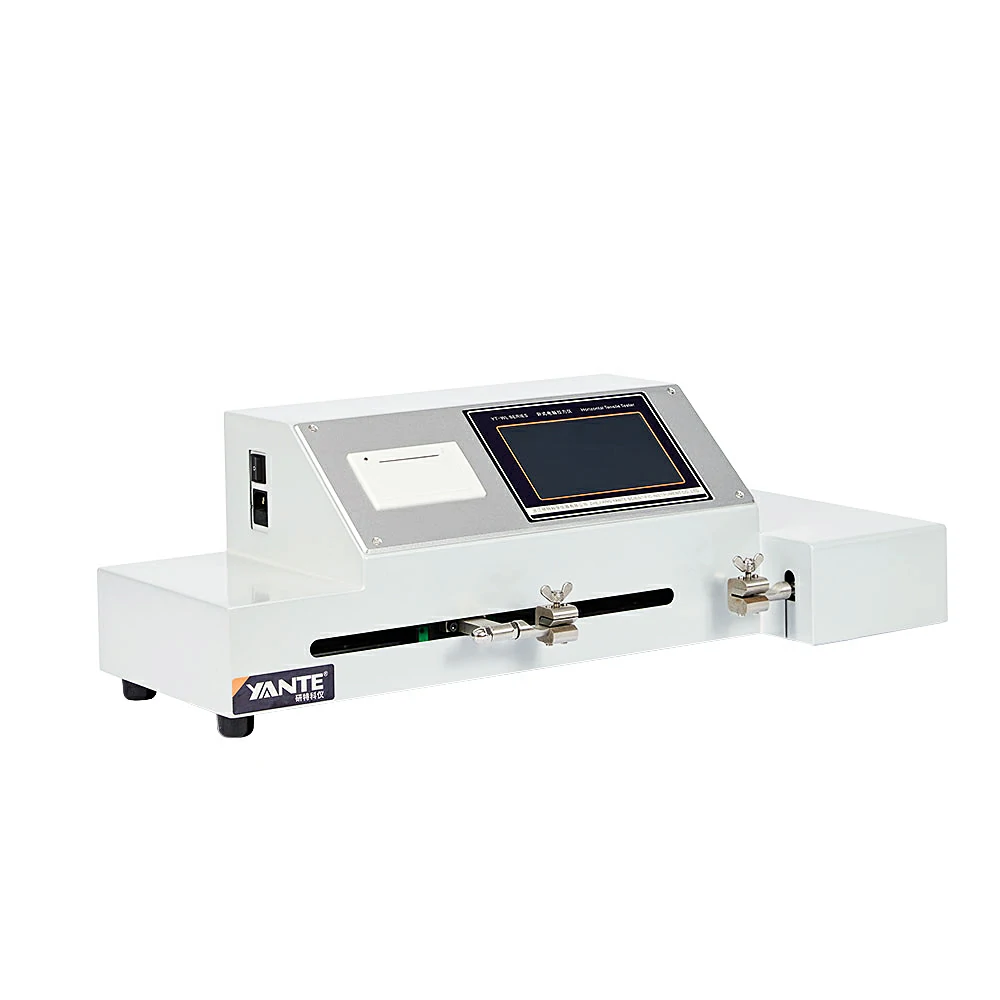

YT-WL Series Horizontal Tensile Tester
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
YT-WL
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
● Paper, cardboard; aluminum foil, aluminum-plastic tape;
● Plastic film and other non-metallic materials.
● Non-woven fabric
● Measure tensile force, tensile strength, wet tensile strength of tissue paper
● Measure elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus
● Measure adhesive tape peel strength
● The transmission mechanism adopts ball screw and linear guide, and the transmission is smooth and accurate.
● Adopt servo stepper motor, low noise and precise control.
● Real-time display of tensile curve.
● Cotex-M4 ARM processor improves the response speed of the instrument and ensures the real-time measurement.
● Sudden power-off data saving function, the data before power-off is retained after booting and the test can be continued.
● Features of automatic reset, data memory, overload protection and fault self-diagnosis.
● Test data supports USB export.
● The system and screen software support upgrading through the network or USB disk.
● Support multiple communication methods, online software (purchased separately) can communicate through WIFI or USB.
● Test data supports uploading to cloud server, cooperate with QMS paper quality management system (purchased separately), real-time monitoring of paper inspection data.
GB/T 12914，GB/T 2792，GB/T 24218.3，GB/T 1040，TAPPI T 494
No. | Accessory name | Model | Picture | Standard | Optional |
1 | Standard Distance Cutter | YT-Q15 | | √ | |
2 | Punch Standard Distance Cutter | YT-CQ15 | | √ | |
3 | Adjustable Paper Cutter | YT-TJD300 |
| √ |
No. | Parameter Item | Technical indicators |
1 | Power supply | AC(100～240)V，(50/60)Hz，100W |
2 | Working environment | Temperature (10 ~ 35) ℃, relative humidity ≤ 85% |
3 | Display | 7-inch IPS screen, 1024 * 600 resolution capacitive touch |
4 | Measuring range | (0.15～30)N /(1～300)N /(3～1000)N |
5 | Resolution | 0.01N(WL30) / 0.01N(WL300) / 0.1N(WL1000) |
6 | Indication error | ±1%( Range 5%～100%) |
7 | Work Capacity | 300mm |
8 | Sample width | 15mm(25mm，50mm optional) |
9 | Test speed | (1～500)mm/min(can be adjusted arbitrarily) |
10 | Data storage | 50 test data |
11 | Data export | Export data to USB flash drive |
12 | Built-in thermal printer | |
13 | Communication interface | USB、WIFI（2.4G） |
14 | Dimensions | 700×310×240 mm |
15 | Net weight | 31kg |
