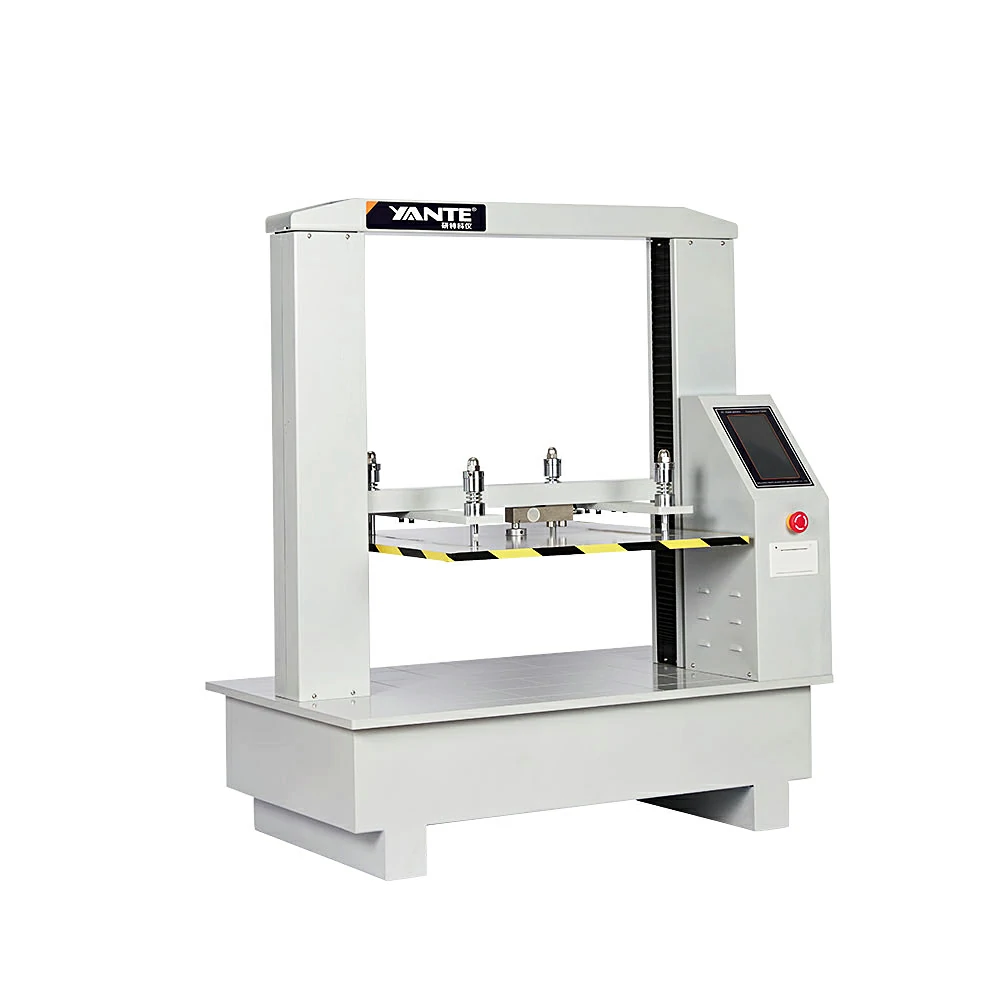

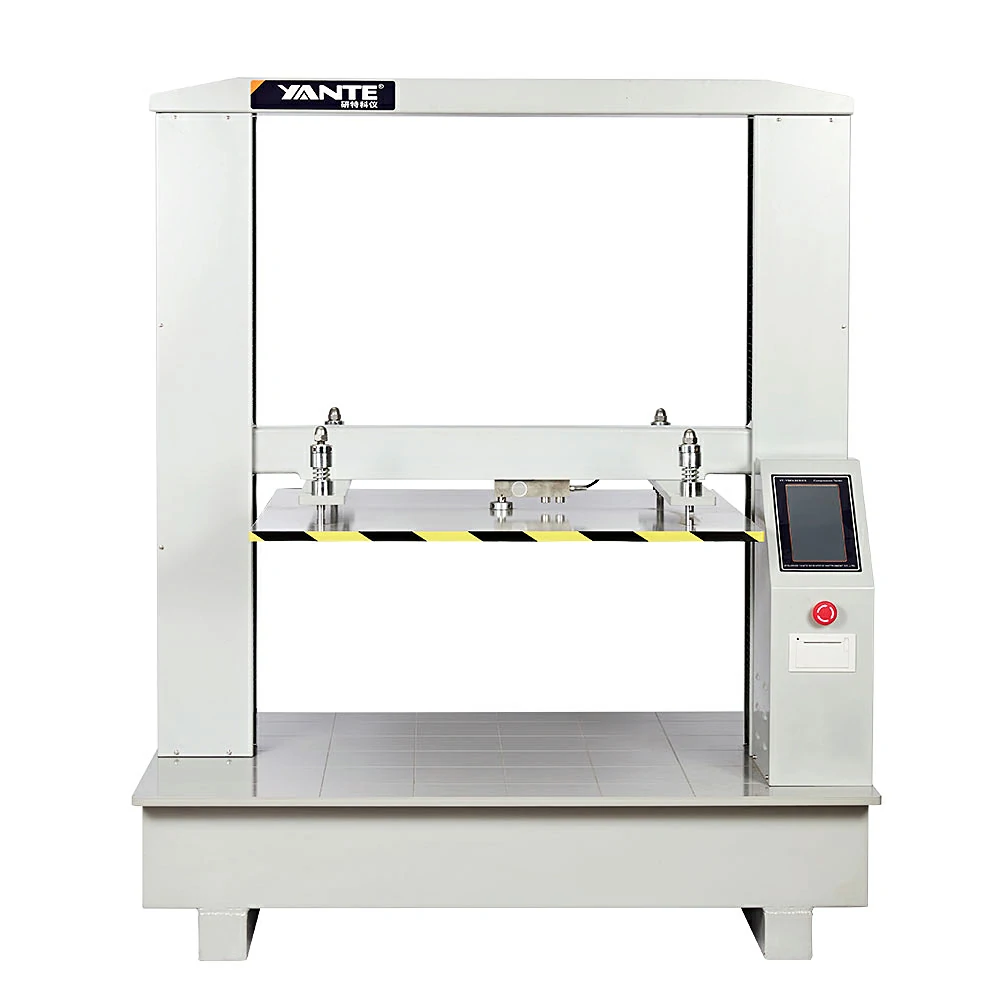

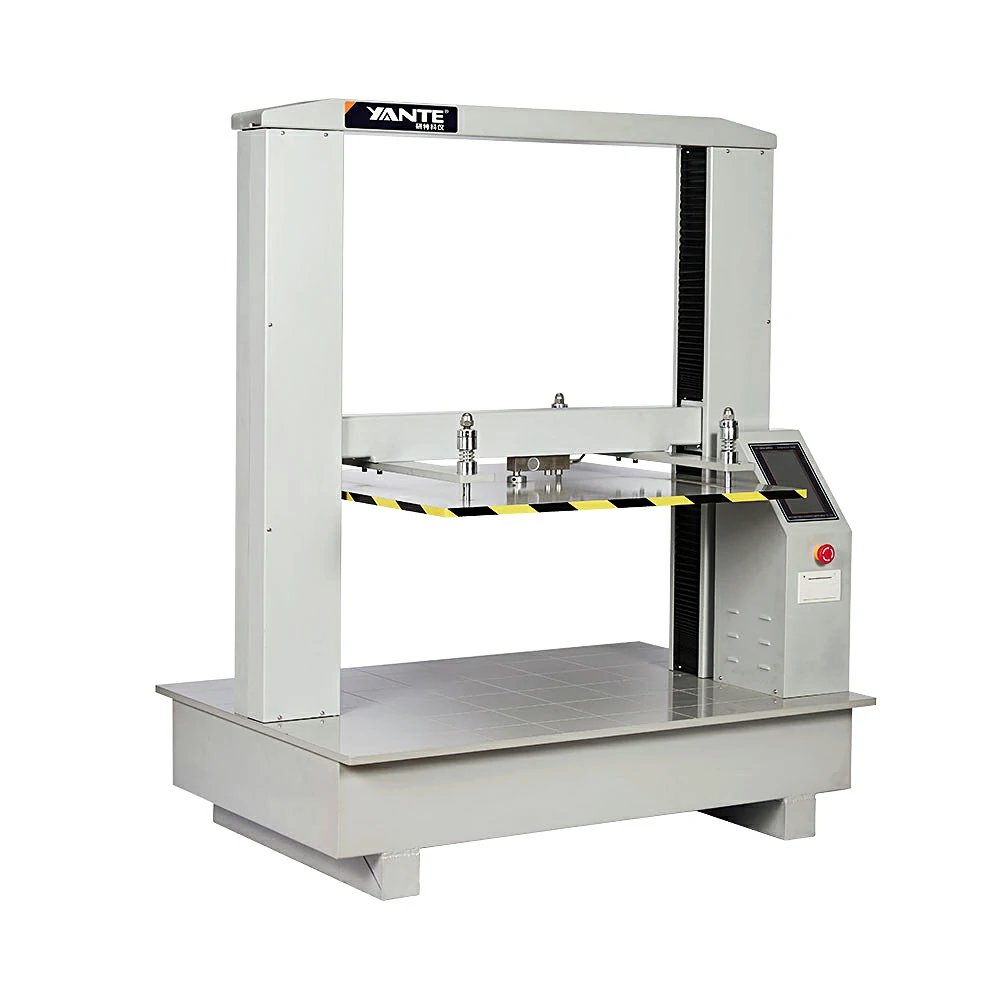

Box Compression Tester is a professional testing machine for testing the compressive performance of cartons. It is suitable for compressive tests of corrugated boxes, honeycomb boxes and other packaging boxes. It is also suitable for the compression test of plastic barrels (edible oil, mineral water), paper barrels, cartons, paper cans, container barrels (IBC barrels) and other containers.

● Cartons, beer crates, paper tubes, paper cups, color boxes, milk crates, etc.;
● Food and beverage instant noodle packaging, cosmetic packaging, beer packaging, grain and oil packaging, etc.

● Compressive strength test
● Stacking strength test
● constant strength test

● Double precision ball screws and double precision guide rods, stable operation and precise displacement
● Cotex-M4 ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.
● Real-time display of the pressure change curve during the test.
● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
● Test data can be exported to USB flash drive.
● The system and screen software can be upgraded through the network or USB flash drive.
● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.
● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time.

GB/T 4857.4,GB/T 4857.3,QB/T 1048 ,ISO 12048,ISO 2234

No. | Parameter item | Technical index |
1 | Power Supply/Motor | 10KN :AC220V±10% 50Hz 750W /AC servo motor 20KN:AC220V±10% 50Hz 750W /AC servo motor 50KN:AC220V±10% 50Hz 1kW /AC servo motor |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85% |
3 | Display | 7 inch color touch screen,1024 x 600 resolution |
4 | Measuring range | (0~10)kN/(0~20)kN/(0~30)kN/(0~50)kN |
5 | Resolution | 1N |
6 | Indication error | ±1%(Range 5%~100%) |
7 | Measured Area | 600×600mm/800×800mm/1000×1000mm/1200×1200mm customizable |
8 | Work Capacity | 600mm/800mm/1000mm/1200mm/1500mm customizable |
9 | Press Speed | 10mm/min(1~99)mm/min(Arbitrary adjustment) |
10 | Parallelism Between Plates | <2:1000 (Example: pressure plate 1000×1000mm, <2mm) |
11 | Data storage | 50 times test data |
12 | Data export | Export data to USB flash drive |
13 | Print | Built-in thermal printer |
14 | Communication Interface | USB, WIFI (2.4G) |
15 | Dimensions | According to actual condition |
