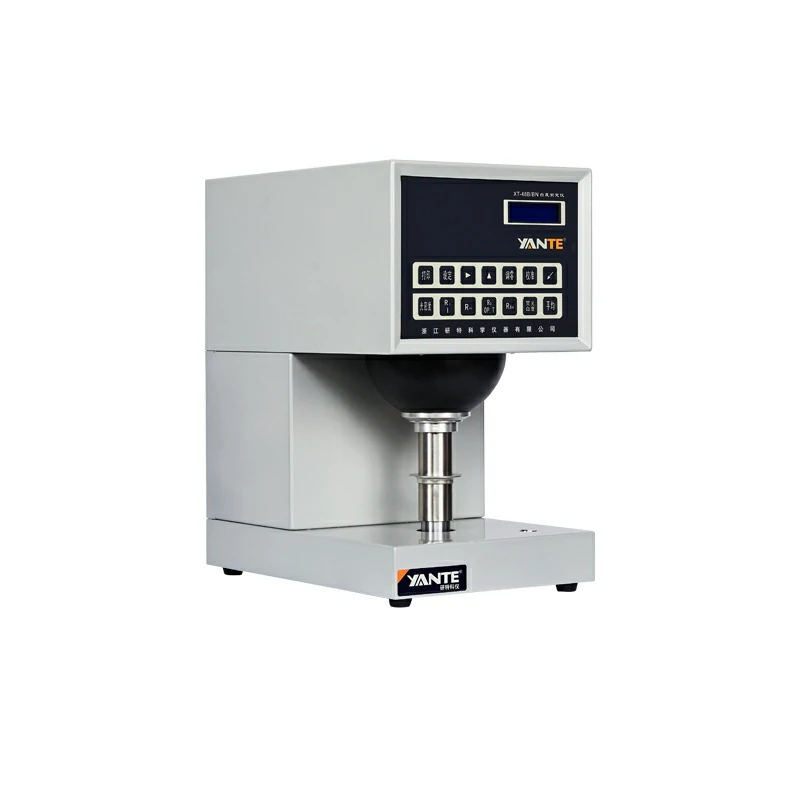

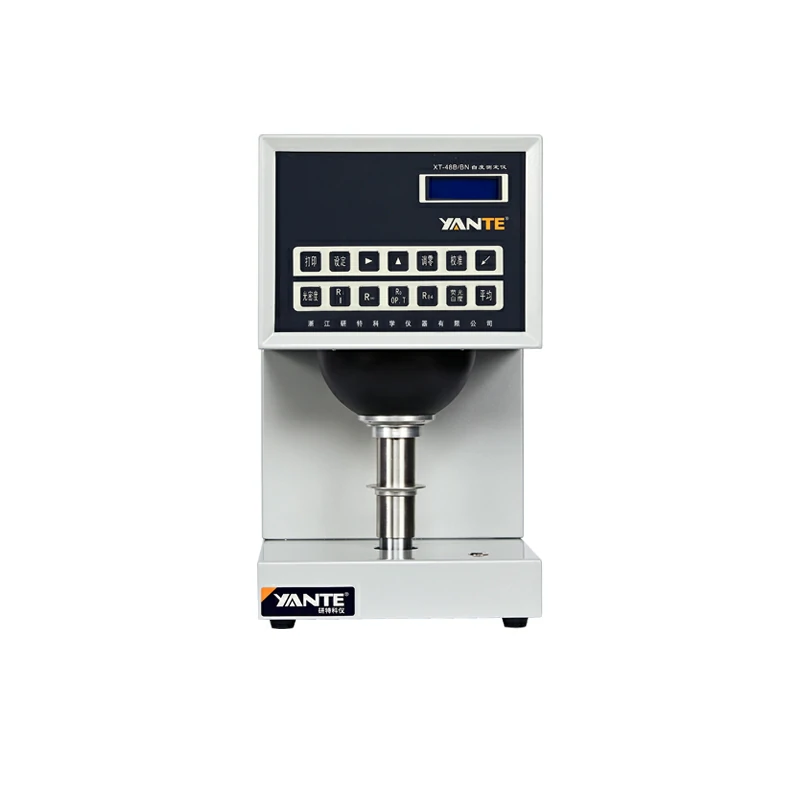

XT-48B Brightness Meter
- Delivery：
Send from factory in 3-7 work days after receive payment
- Brand Name：
YANTE
- Model：
XT-48B
- Place of Origin：
China
- Payment：
100% Advance T/T
- Package：
Wooden Box
Product Details
Paper, cardboard, plastic, pulp, salt, industrial salt； Starch, calcium carbonate, talcum powder and other powders.
● Measure D65 brightness (R457 blue light whiteness)
● Measure the degree of fluorescent whitening produced by the emission of fluorescent substances (the sample contains fluorescent whitening agent)
● Measure opacity OP (customized), light scattering coefficient S, light absorption coefficient A, transparency (customized), ink absorption value
● Measure the brightness stimulus value Y10, which is the green diffuse reflection factor Ry
● Measure optical density-lead core concentration (customized small caliber)
● Advanced circuit design effectively guarantees the accuracy and stability of the measurement data
● The instrument has a power-off protection function, and the calibration data will not be lost after power-off
● This instrument is equipped with standard RS232 interface, which can be used with PC software for communication (optional)
GB/T 7973，GB/T 7974，GB/T 2679，GB/T 1543，GB/T 10339，GB/T 12911，GB/T 2913
GB/T 13025.2，GB/T 22427.6，ISO 2469，ISO 2470，ISO 2471，ISO 9416
NO. | Name | Model | Picture | Standard | Optional |
1 | Flating Powder Holder | YT-QY | | √ | |
2 | Fiber Sample Holder | | √ |
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz，50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 128X32dot matrix LCD screen |
4 | Light source | Analog D65 |
5 | Integrating sphere | Diameter 150mm |
6 | Sample Size | Test plate diameter ≥φ30mm while sample thickness≤40mm |
7 | Zero Drift | ≤0.1 |
8 | Indicating Drift | ≤0.5 |
9 | Repetitive Accuracy | ≤0.1（10 consecutive tests at intervals of 10 seconds） |
10 | Specular Reflectance Accuracy | ≤0.1 |
11 | Communication Interface | RS232（optional） |
12 | Dimension | 370×260×425 mm |
13 | Net Weight | 12kg around |
